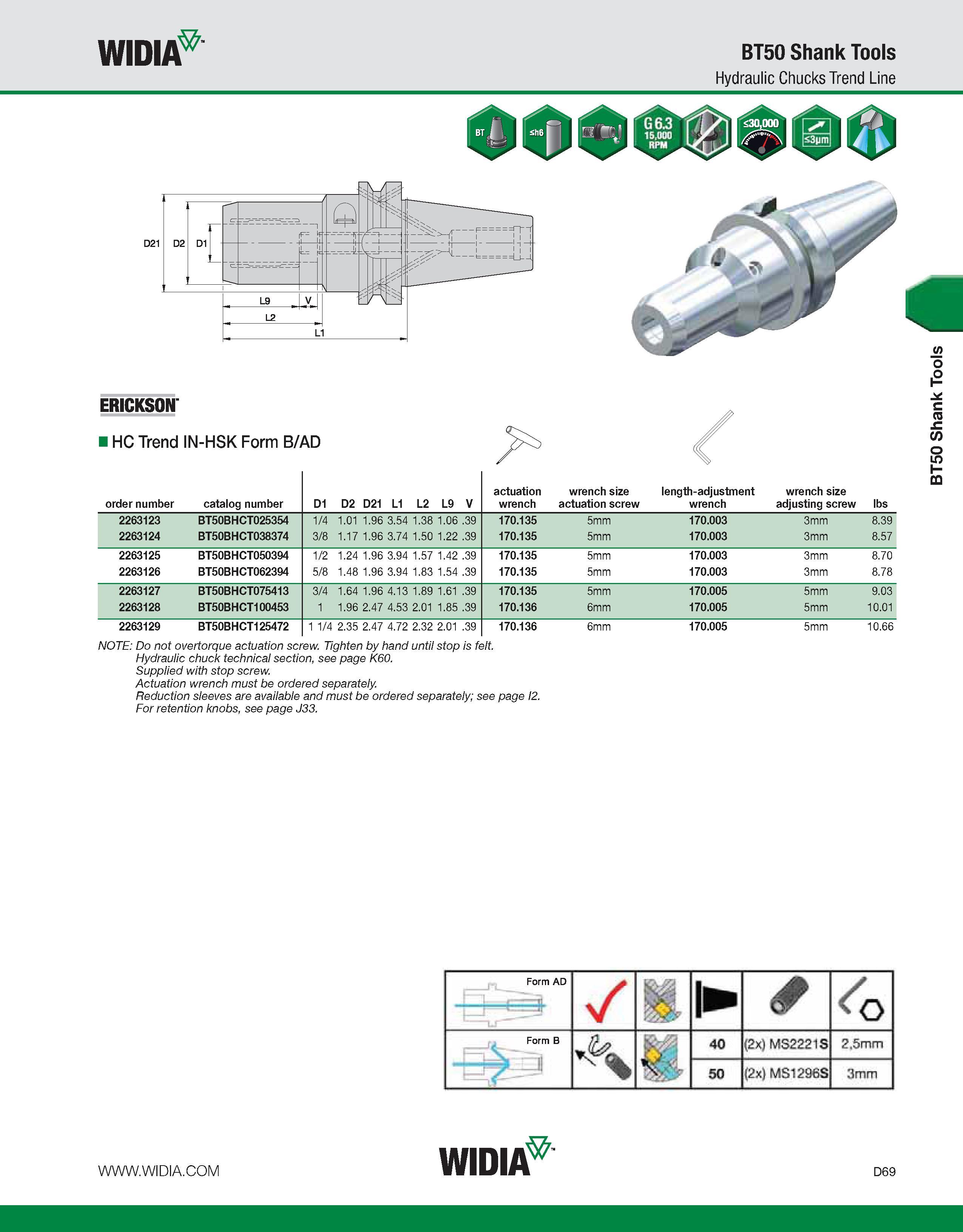

WIDIA BT50 Shank Tools Hydraulic Chucks Trend Line ERICKSON' HC Trend IN-HSK Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw length-adjustment wrench wrench size adjusting screw lbs 2263123 BT50BHCT025354 1/4 1.01 1.96 3.54 1.38 1.06 .39 170.135 5mm 170.003 3mm 8.39 2263124 BT50BHCT038374 3/8 1.17 1.96 3.74 1.50 1.22 .39 170.135 5mm 170.003 3mm 8.57 2263125 BT50BHCT050394 1/2 1.24 1.96 3.94 1.57 1.42 .39 170.135 5mm 170.003 3mm 8.70 2263126 BT50BHCT062394 5/8 1.48 1.96 3.94 1.83 1.54 .39 170.135 5mm 170.003 3mm 8.78 2263127 BT50BHCT075413 3/4 1.64 1.96 4.13 1.89 1.61 .39 170.135 5mm 170.005 5mm 9.03 2263128 BT50BHCT100453 1 1.96 2.47 4.53 2.01 1.85 .39 170.136 6mm 170.005 5mm 10.01 2263129 BT50BHCT125472 1 1/4 2.35 2.47 4.72 2.32 2.01 .39 170.136 6mm 170.005 5mm 10.66 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. For retention knobs, see page J33. Form AD r jl / Ito
