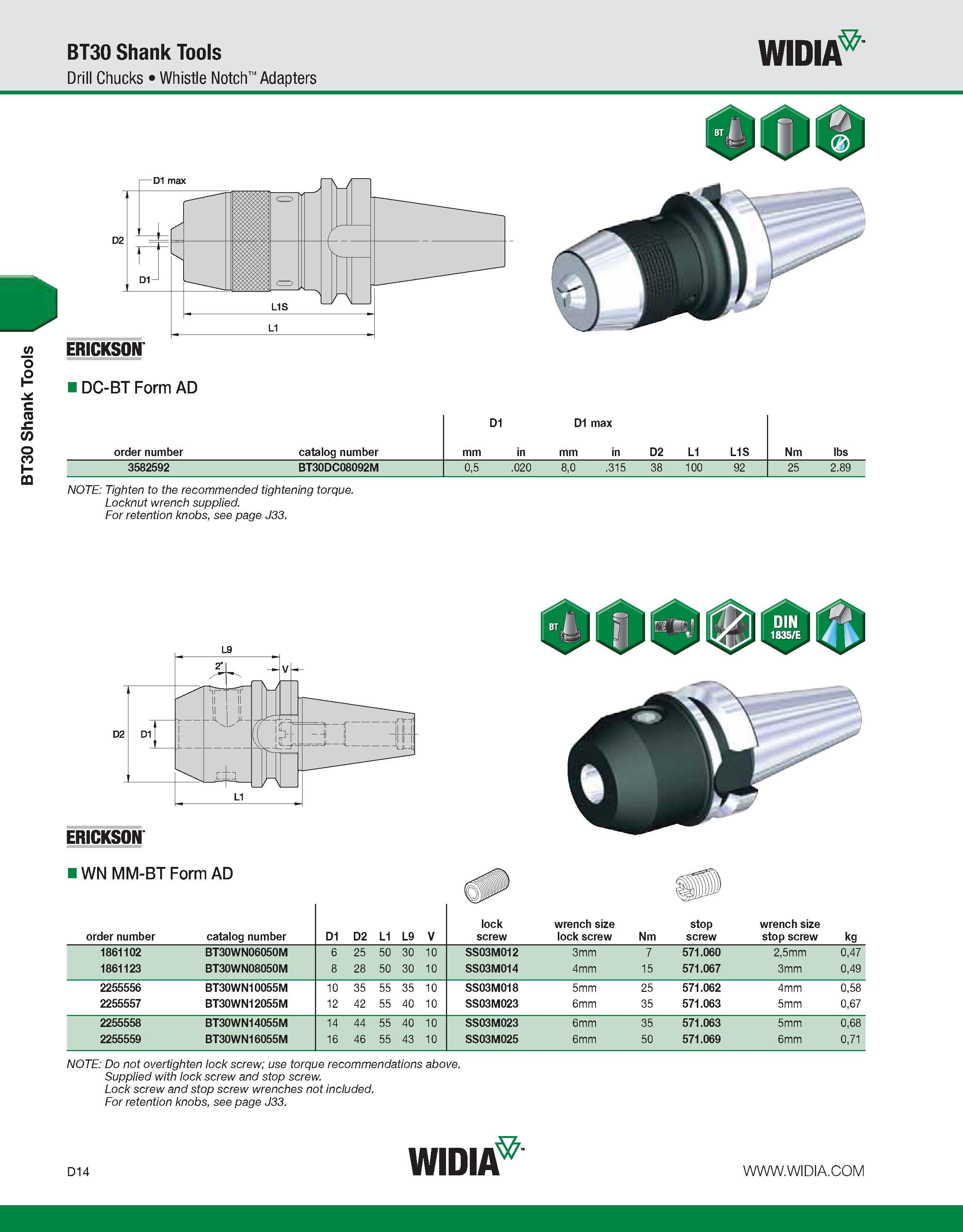

BT30 Shank Tools BT30 Shank Tools Drill Chucks Whistle Notch Adapters WIDIA DC-BT Form AD order number catalog number D1 mm in D1 max mm in D2 L1 L1S Nm lbs 3582592 BT30DC08092M 0,5 .020 8,0 .315 38 100 92 25 2.89 NOTE: Tighten to the recommended tightening torque. Locknut wrench supplied. For retention knobs, see page J33. ERICKSON IWN MM-BT Form AD order number catalog number D1 D2 L1 L9 V lock screw wrench size lock screw Nm stop screw wrench size stop screw kg 1861102 BT30WN06050M 6 25 50 30 10 SS03M012 3mm 7 571.060 2,5mm 0,47 1861123 BT30WN08050M 8 28 50 30 10 SS03M014 4mm 15 571.067 3mm 0,49 2255556 BT30WN10055M 10 35 55 35 10 SS03M018 5mm 25 571.062 4mm 0,58 2255557 BT30WN12055M 12 42 55 40 10 SS03M023 6mm 35 571.063 5mm 0,67 2255558 BT30WN14055M 14 44 55 40 10 SS03M023 6mm 35 571.063 5mm 0,68 2255559 BT30WN16055M 16 46 55 43 10 SS03M025 6mm 50 571.069 6mm 0,71 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches not included. For retention knobs, see page J33. D14 WIDIA
