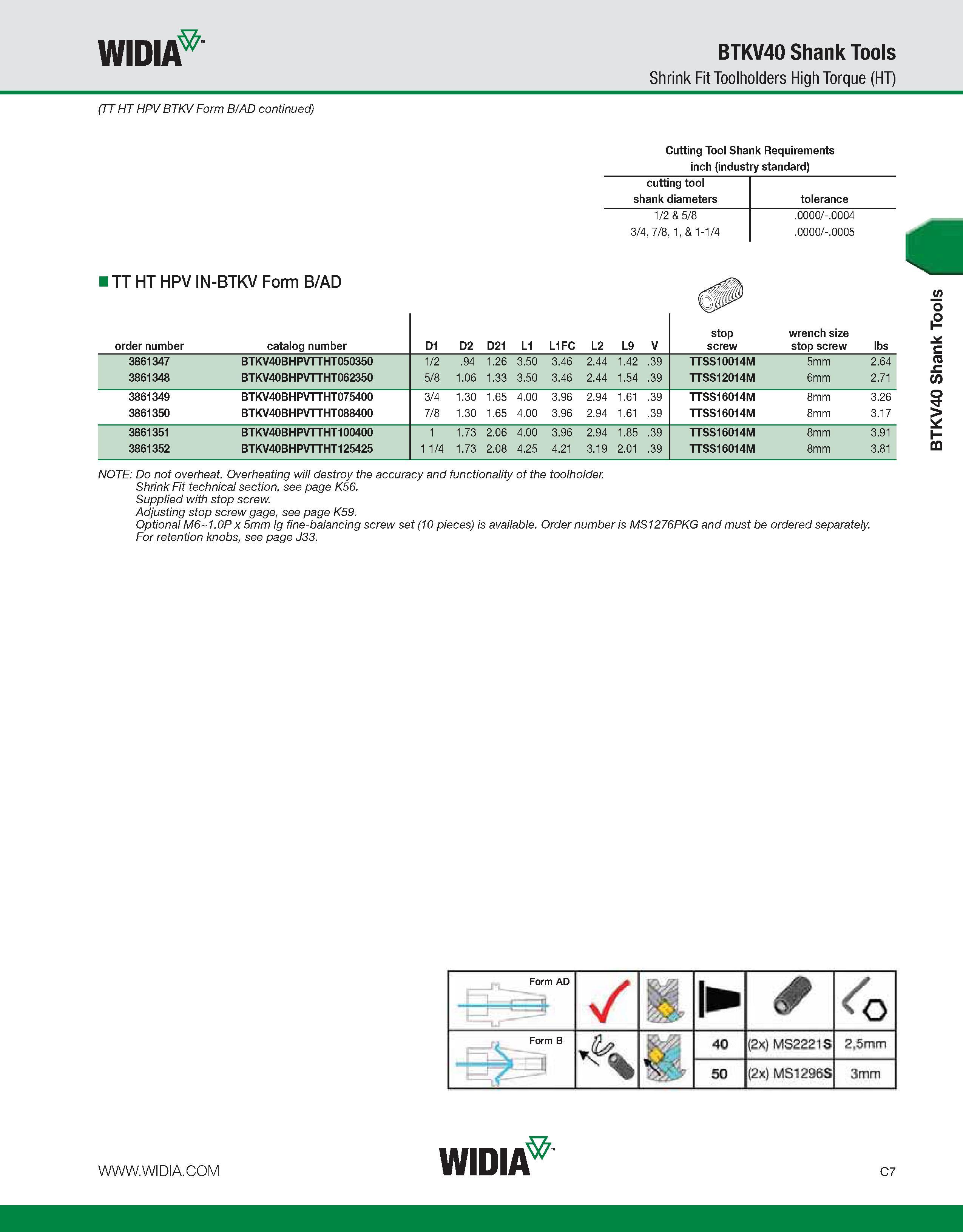

WIDIA BTKV40 Shank Tools Shrink Fit Toolholders High Torque (HT) (TT HT HPV BTKV Form B/AD continued) I TT HT HPV IN-BTKV Form B/AD Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/2 & 5/8 .0000/-.0004 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 order number catalog number D1 D2 D21 L1 L1FC L2 L9 V stop screw wrench size stop screw lbs 3861347 BTKV40BHPVTTHT050350 1/2 .94 1.26 3.50 3.46 2.44 1.42 .39 TTSS10014M 5mm 2.64 3861348 BTKV40BHPVTTHT062350 5/8 1.06 1.33 3.50 3.46 2.44 1.54 .39 TTSS12014M 6mm 2.71 3861349 BTKV40BHPVTTHT075400 3/4 1.30 1.65 4.00 3.96 2.94 1.61 .39 TTSS16014M 8mm 3.26 3861350 BTKV40BHPVTTHT088400 7/8 1.30 1.65 4.00 3.96 2.94 1.61 .39 TTSS16014M 8mm 3.17 3861351 BTKV40BHPVTTHT100400 1 1.73 2.06 4.00 3.96 2.94 1.85 .39 TTSS16014M 8mm 3.91 3861352 BTKV40BHPVTTHT125425 1 1/4 1.73 2.08 4.25 4.21 3.19 2.01 .39 TTSS16014M 8mm 3.81 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6 1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33. BTKV40 Shank Tools
