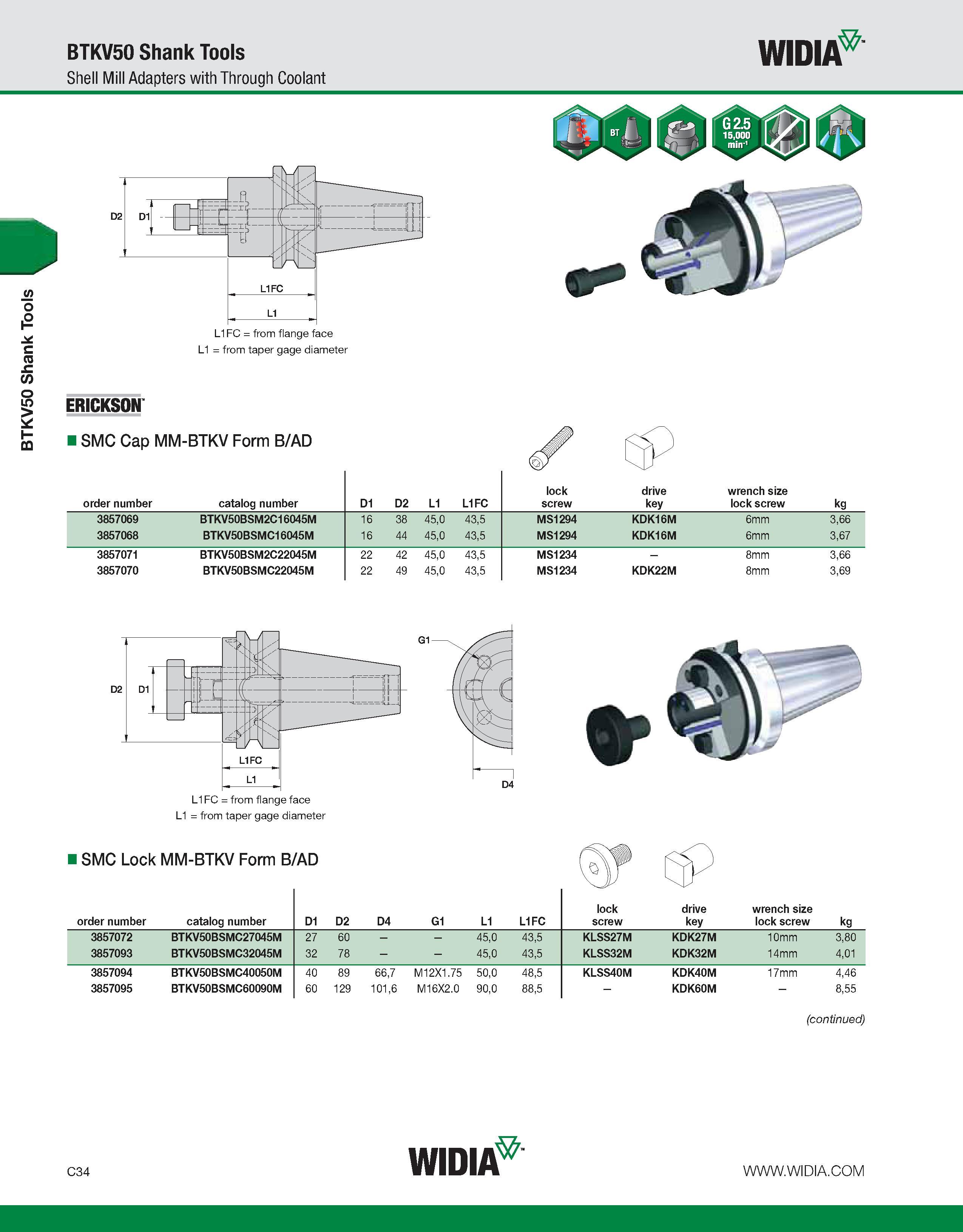

BTKV50 Shank Tools BTKV50 Shank Tools Shell Mill Adapters with Through Coolant WIDIA L1FC = from flange face L1 = from taper gage diameter ERICKSON I SMC Cap MM-BTKV Form B/AD order number catalog number D1 D2 L1 L1FC lock screw drive key wrench size lock screw kg 3857069 BTKV50BSM2C16045M 16 38 45,0 43,5 MS1294 KDK16M 6mm 3,66 3857068 BTKV50BSMC16045M 16 44 45,0 43,5 MS1294 KDK16M 6mm 3,67 3857071 BTKV50BSM2C22045M 22 42 45,0 43,5 MS1234 - 8mm 3,66 3857070 BTKV50BSMC22045M 22 49 45,0 43,5 MS1234 KDK22M 8mm 3,69 L1 = from taper gage diameter I SMC Lock MM-BTKV Form B/AD order number catalog number D1 D2 D4 G1 L1 L1FC lock screw drive key wrench size lock screw kg 3857072 BTKV50BSMC27045M 27 60 45,0 43,5 KLSS27M KDK27M 10mm 3,80 3857093 BTKV50BSMC32045M 32 78 45,0 43,5 KLSS32M KDK32M 14mm 4,01 3857094 BTKV50BSMC40050M 40 89 66,7 M12X1.75 50,0 48,5 KLSS40M KDK40M 17mm 4,46 3857095 BTKV50BSMC60090M 60 129 101,6 M16X2.0 90,0 88,5 - KDK60M - 8,55 (continued) C34 WIDIA
