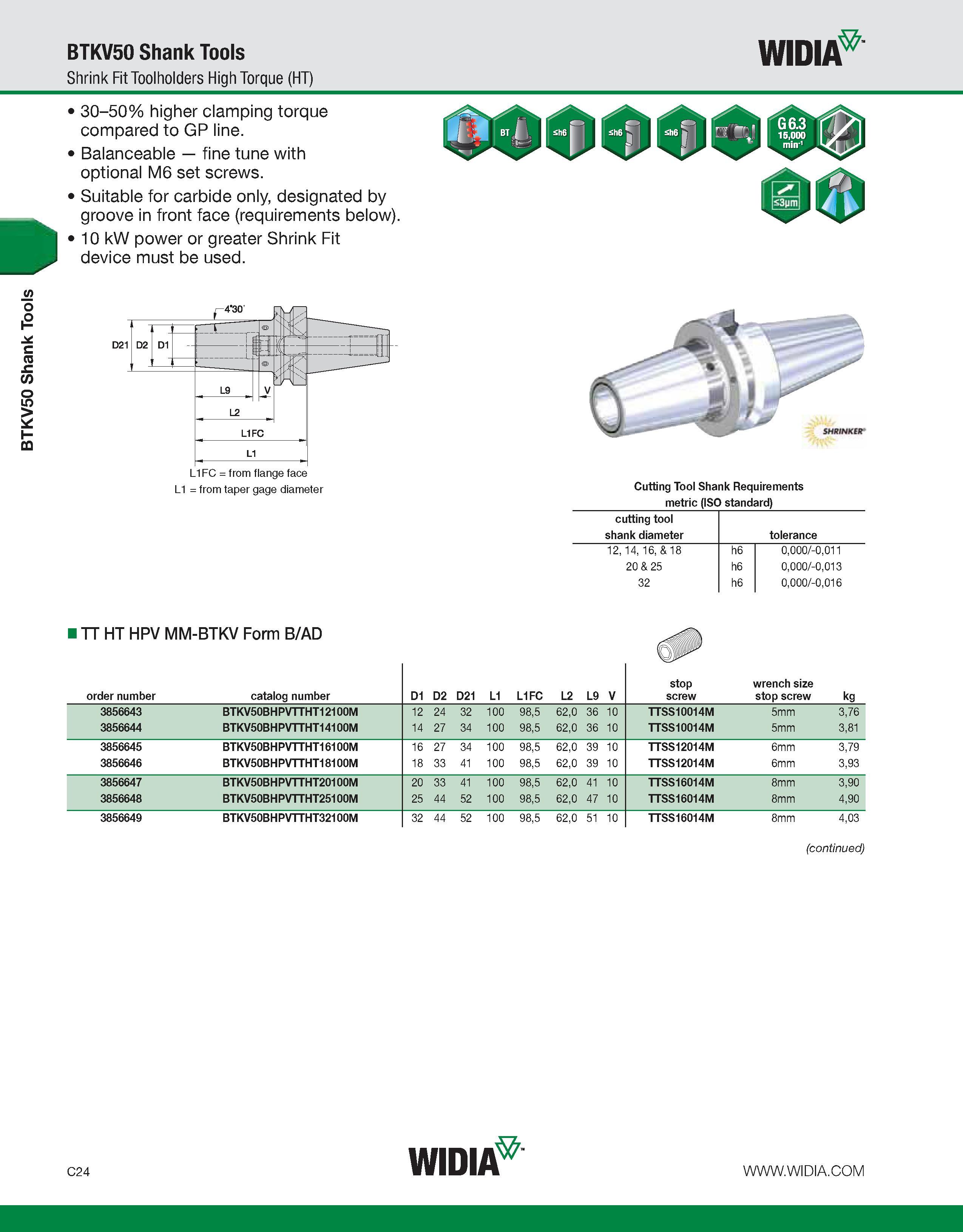

BTKV50 Shank Tools BTKV50 Shank Tools Shrink Fit Toolholders High Torque (HT) WIDIA 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. L1 = from taper gage diameter Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 I TT HT HPV MM-BTKV Form B/AD order number catalog number D1 D2 D21 L1 L1FC L2 L9 V stop screw wrench size stop screw kg 3856643 BTKV50BHPVTTHT12100M 12 24 32 100 98,5 62,0 36 10 TTSS10014M 5mm 3,76 3856644 BTKV50BHPVTTHT14100M 14 27 34 100 98,5 62,0 36 10 TTSS10014M 5mm 3,81 3856645 BTKV50BHPVTTHT16100M 16 27 34 100 98,5 62,0 39 10 TTSS12014M 6mm 3,79 3856646 BTKV50BHPVTTHT18100M 18 33 41 100 98,5 62,0 39 10 TTSS12014M 6mm 3,93 3856647 BTKV50BHPVTTHT20100M 20 33 41 100 98,5 62,0 41 10 TTSS16014M 8mm 3,90 3856648 BTKV50BHPVTTHT25100M 25 44 52 100 98,5 62,0 47 10 TTSS16014M 8mm 4,90 3856649 BTKV50BHPVTTHT32100M 32 44 52 100 98,5 62,0 51 10 TTSS16014M 8mm 4,03 (continued) C24 WIDIA
