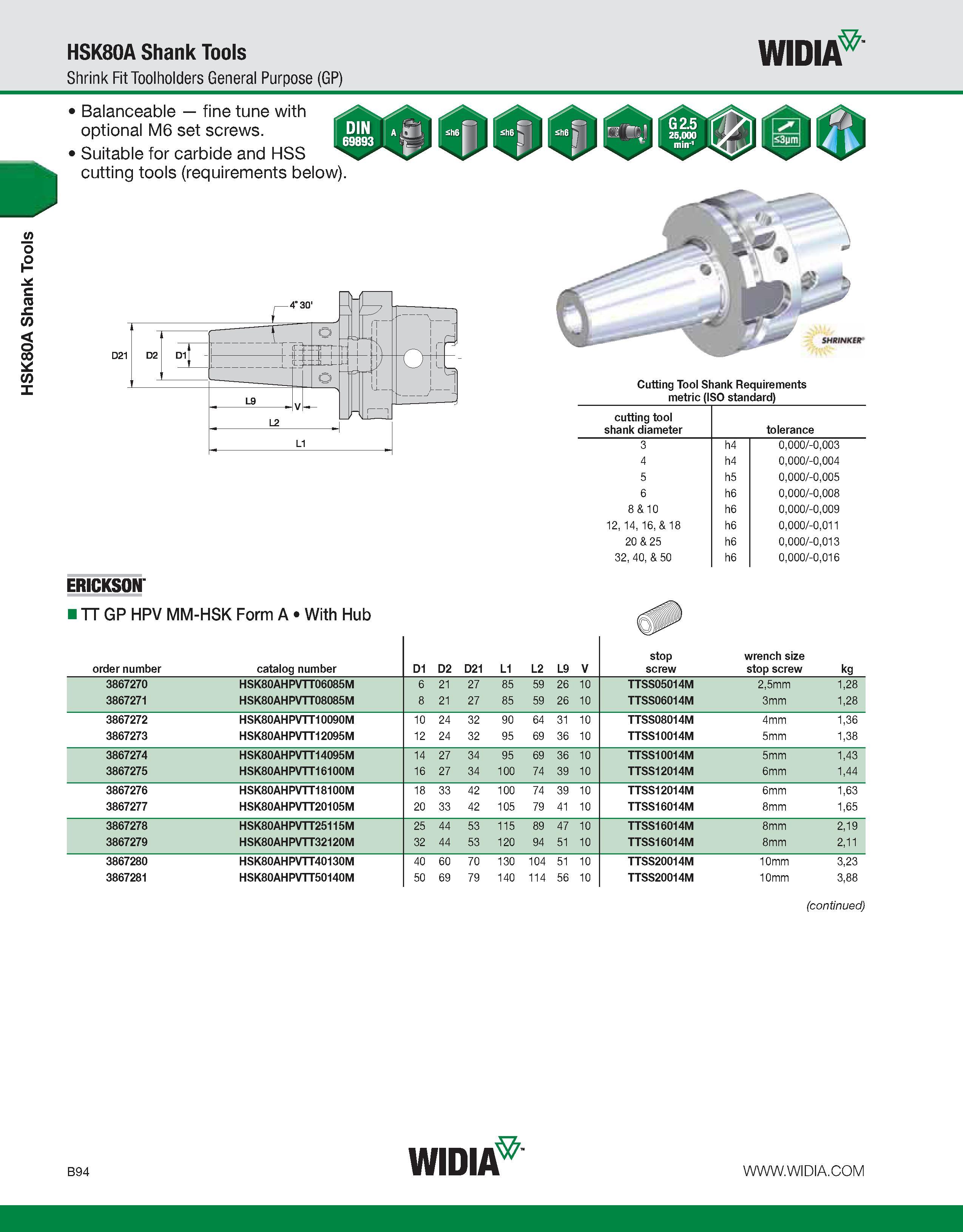

HSK80A Shank Tools HSK80A Shank Tools Shrink Fit Toolholders General Purpose (GP) WIDIA Balanceable fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below) Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 3 h4 0,000/-0,003 4 h4 0,000/-0,004 5 h5 0,000/-0,005 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 ERICKSON' I TT GP HPV MM-HSK Form A With Hub order number catalog number D1 D2 D21 L1 L2 L9 V stop screw wrench size stop screw kg 3867270 HSK80AHPVTT06085M 6 21 27 85 59 26 10 TTSS05014M 2,5mm 1,28 3867271 HSK80AHPVTT08085M 8 21 27 85 59 26 10 TTSS06014M 3mm 1,28 3867272 HSK80AHPVTT10090M 10 24 32 90 64 31 10 TTSS08014M 4mm 1,36 3867273 HSK80AHPVTT12095M 12 24 32 95 69 36 10 TTSS10014M 5mm 1,38 3867274 HSK80AHPVTT14095M 14 27 34 95 69 36 10 TTSS10014M 5mm 1,43 3867275 HSK80AHPVTT16100M 16 27 34 100 74 39 10 TTSS12014M 6mm 1,44 3867276 HSK80AHPVTT18100M 18 33 42 100 74 39 10 TTSS12014M 6mm 1,63 3867277 HSK80AHPVTT20105M 20 33 42 105 79 41 10 TTSS16014M 8mm 1,65 3867278 HSK80AHPVTT25115M 25 44 53 115 89 47 10 TTSS16014M 8mm 2,19 3867279 HSK80AHPVTT32120M 32 44 53 120 94 51 10 TTSS16014M 8mm 2,11 3867280 HSK80AHPVTT40130M 40 60 70 130 104 51 10 TTSS20014M 10mm 3,23 3867281 HSK80AHPVTT50140M 50 69 79 140 114 56 10 TTSS20014M 10mm 3,88 (continued)
