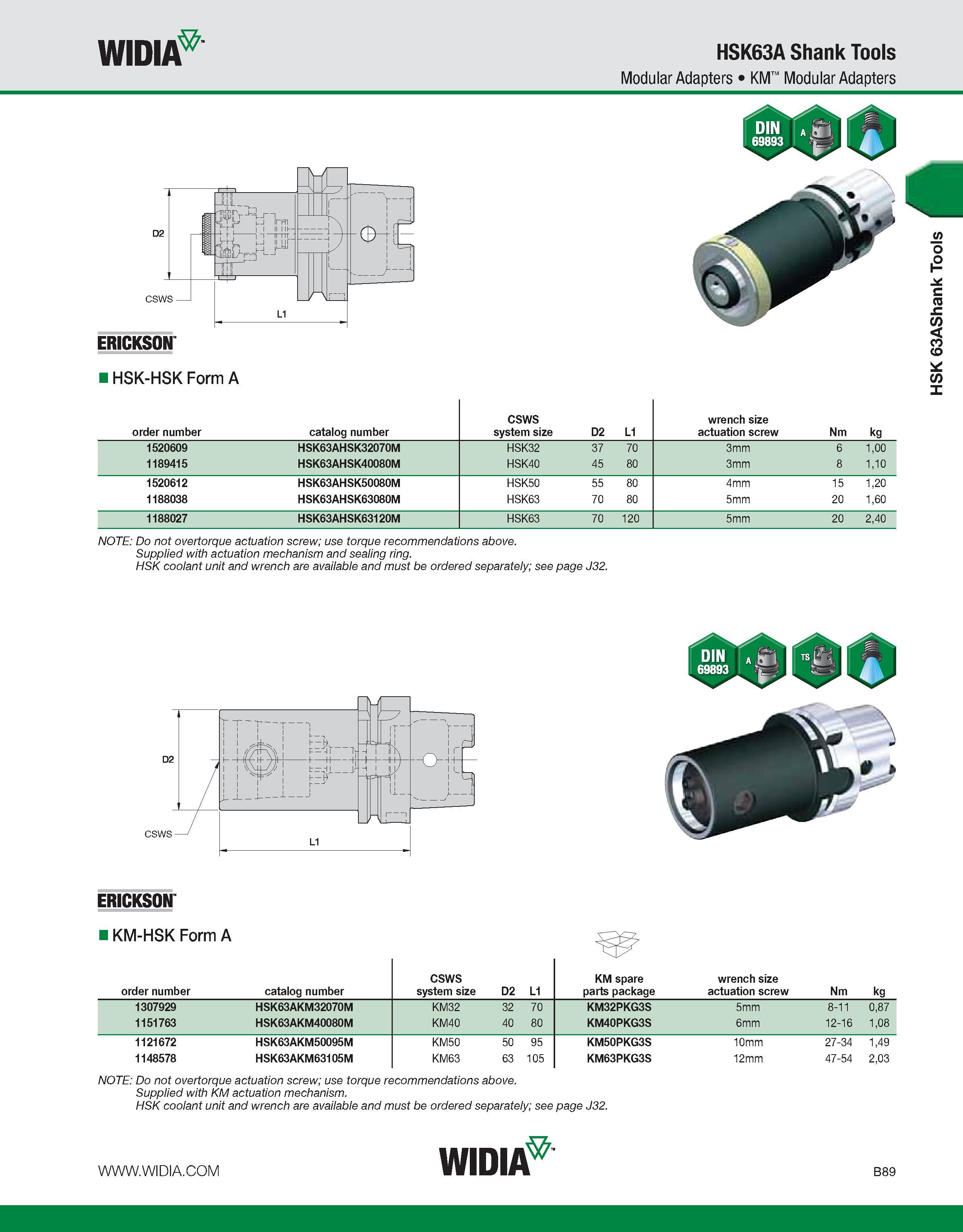

WIDIA HSK63A Shank Tools Modular Adapters KM Modular Adapters ERICKSON IHSK-HSK Form A order number catalog number CSWS system size D2 L1 wrench size actuation screw Nm kg 1520609 HSK63AHSK32070M HSK32 37 70 3mm 6 1,00 1189415 HSK63AHSK40080M HSK40 45 80 3mm 8 1,10 1520612 HSK63AHSK50080M HSK50 55 80 4mm 15 1,20 1188038 HSK63AHSK63080M HSK63 70 80 5mm 20 1,60 1188027 HSK63AHSK63120M HSK63 70 120 5mm 20 2,40 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. HSK coolant unit and wrench are available and must be ordered separately; see page J32. ERICKSON KM-HSK Form A order number catalog number CSWS system size D2 L1 KM spare parts package wrench size actuation screw Nm kg 1307929 HSK63AKM32070M KM32 32 70 KM32PKG3S 5mm 8-11 0,87 1151763 HSK63AKM40080M KM40 40 80 KM40PKG3S 6mm 12-16 1,08 1121672 HSK63AKM50095M KM50 50 95 KM50PKG3S 10mm 27-34 1,49 1148578 HSK63AKM63105M KM63 63 105 KM63PKG3S 12mm 47-54 2,03 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with KM actuation mechanism. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WIDIA B89 HSK 63AShank Tools
