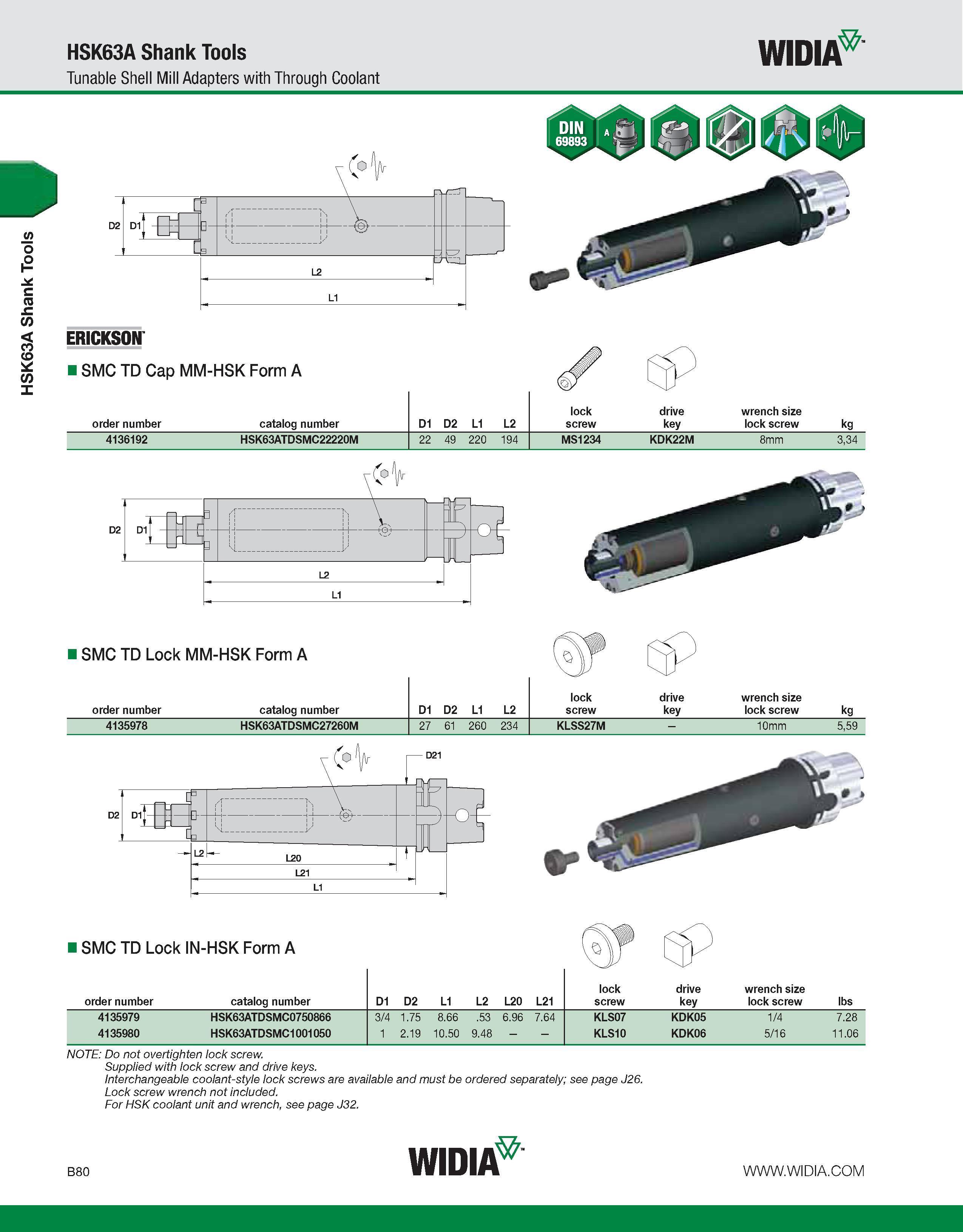

HSK63A Shank Tools HSK63A Shank Tools Tunable Shell Mill Adapters with Through Coolant WIDIA ERICKSON I SMC TD Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 4136192 HSK63ATDSMC22220M 22 49 220 194 MS1234 KDK22M 8mm 3,34 I SMC TD Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 L2 screw key lock screw kg 4135978 HSK63ATDSMC27260M 27 61 260 234 KLSS27M - 10mm 5,59 I SMC TD Lock IN-HSK Form A order number catalog number D1 D2 L1 L2 L20 L21 lock screw drive key wrench size lock screw lbs 4135979 HSK63ATDSMC0750866 3/4 1.75 8.66 .53 6.96 7.64 KLS07 KDK05 1/4 7.28 4135980 HSK63ATDSMC1001050 1 2.19 10.50 9.48 KLS10 KDK06 5/16 11.06 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. B80 WIDIA
