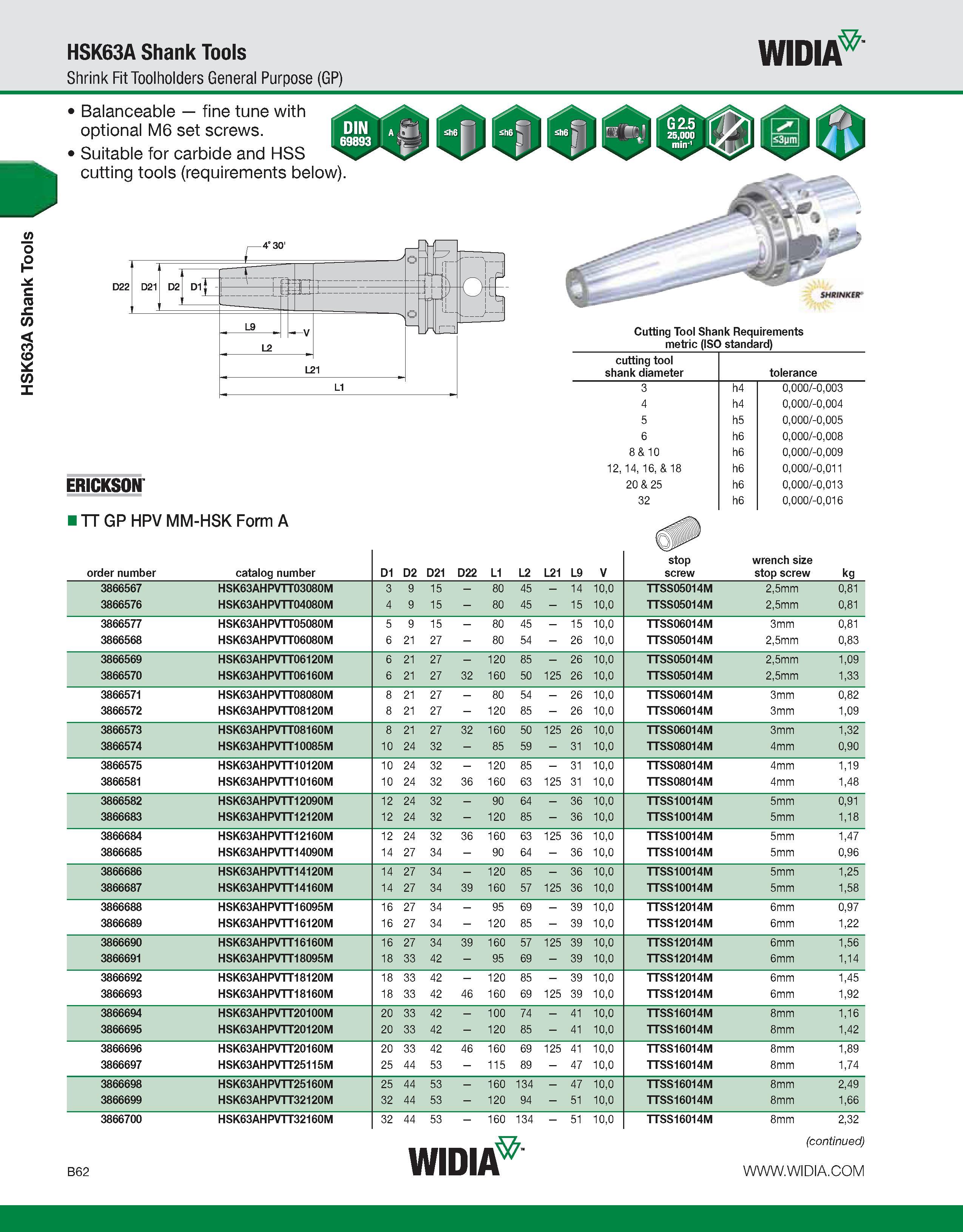

HSK63A Shank Tools HSK63A Shank Tools Shrink Fit Toolholders General Purpose (GP) WIDIA Balanceable fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below) ERICKSON Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 3 h4 0,000/-0,003 4 h4 0,000/-0,004 5 h5 0,000/-0,005 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 I TT GP HPV MM-HSK Form A order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw kg 3866567 HSK63AHPVTT03080M 3 9 15 80 45 14 10,0 TTSS05014M 2,5mm 0,81 3866576 HSK63AHPVTT04080M 4 9 15 80 45 15 10,0 TTSS05014M 2,5mm 0,81 3866577 HSK63AHPVTT05080M 5 9 15 80 45 15 10,0 TTSS06014M 3mm 0,81 3866568 HSK63AHPVTT06080M 6 21 27 80 54 26 10,0 TTSS05014M 2,5mm 0,83 3866569 HSK63AHPVTT06120M 6 21 27 120 85 26 10,0 TTSS05014M 2,5mm 1,09 3866570 HSK63AHPVTT06160M 6 21 27 32 160 50 125 26 10,0 TTSS05014M 2,5mm 1,33 3866571 HSK63AHPVTT08080M 8 21 27 80 54 26 10,0 TTSS06014M 3mm 0,82 3866572 HSK63AHPVTT08120M 8 21 27 120 85 26 10,0 TTSS06014M 3mm 1,09 3866573 HSK63AHPVTT08160M 8 21 27 32 160 50 125 26 10,0 TTSS06014M 3mm 1,32 3866574 HSK63AHPVTT10085M 10 24 32 85 59 31 10,0 TTSS08014M 4mm 0,90 3866575 HSK63AHPVTT10120M 10 24 32 120 85 31 10,0 TTSS08014M 4mm 1,19 3866581 HSK63AHPVTT10160M 10 24 32 36 160 63 125 31 10,0 TTSS08014M 4mm 1,48 3866582 HSK63AHPVTT12090M 12 24 32 90 64 36 10,0 TTSS10014M 5mm 0,91 3866683 HSK63AHPVTT12120M 12 24 32 120 85 36 10,0 TTSS10014M 5mm 1,18 3866684 HSK63AHPVTT12160M 12 24 32 36 160 63 125 36 10,0 TTSS10014M 5mm 1,47 3866685 HSK63AHPVTT14090M 14 27 34 90 64 36 10,0 TTSS10014M 5mm 0,96 3866686 HSK63AHPVTT14120M 14 27 34 120 85 36 10,0 TTSS10014M 5mm 1,25 3866687 HSK63AHPVTT14160M 14 27 34 39 160 57 125 36 10,0 TTSS10014M 5mm 1,58 3866688 HSK63AHPVTT16095M 16 27 34 95 69 39 10,0 TTSS12014M 6mm 0,97 3866689 HSK63AHPVTT16120M 16 27 34 120 85 39 10,0 TTSS12014M 6mm 1,22 3866690 HSK63AHPVTT16160M 16 27 34 39 160 57 125 39 10,0 TTSS12014M 6mm 1,56 3866691 HSK63AHPVTT18095M 18 33 42 95 69 39 10,0 TTSS12014M 6mm 1,14 3866692 HSK63AHPVTT18120M 18 33 42 120 85 39 10,0 TTSS12014M 6mm 1,45 3866693 HSK63AHPVTT18160M 18 33 42 46 160 69 125 39 10,0 TTSS12014M 6mm 1,92 3866694 HSK63AHPVTT20100M 20 33 42 100 74 41 10,0 TTSS16014M 8mm 1,16 3866695 HSK63AHPVTT20120M 20 33 42 120 85 41 10,0 TTSS16014M 8mm 1,42 3866696 HSK63AHPVTT20160M 20 33 42 46 160 69 125 41 10,0 TTSS16014M 8mm 1,89 3866697 HSK63AHPVTT25115M 25 44 53 115 89 47 10,0 TTSS16014M 8mm 1,74 3866698 HSK63AHPVTT25160M 25 44 53 160 134 47 10,0 TTSS16014M 8mm 2,49 3866699 HSK63AHPVTT32120M 32 44 53 120 94 51 10,0 TTSS16014M 8mm 1,66 3866700 HSK63AHPVTT32160M 32 44 53 160 134 51 10,0 TTSS16014M 8mm 2,32 B62 WIDIA (continued)
