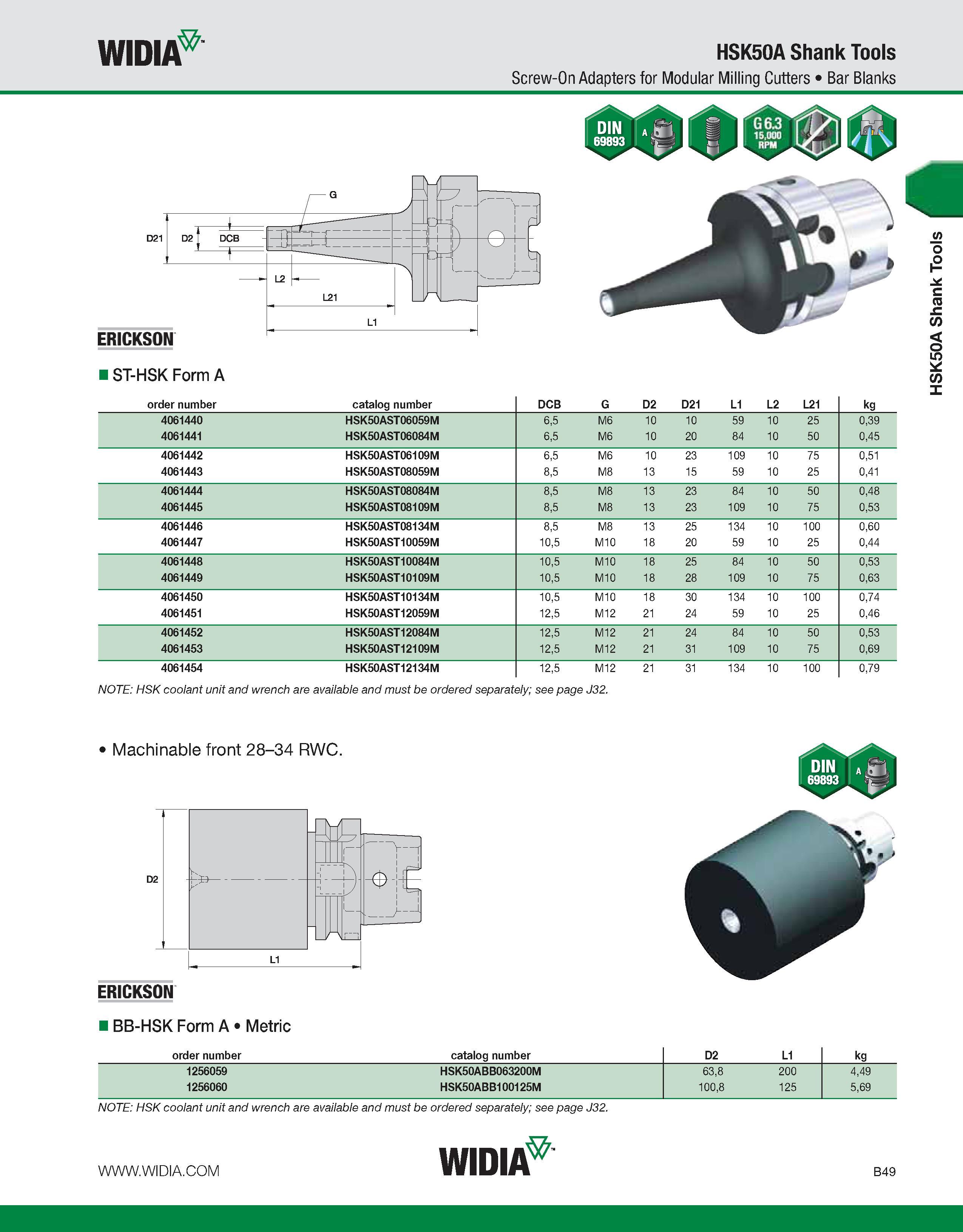

WIDIA HSK50A Shank Tools Screw-On Adapters for Modular Milling Cutters Bar Blanks ST-HSK Form A order number catalog number DCB G D2 D21 L1 L2 L21 kg 4061440 HSK50AST06059M 6,5 M6 10 10 59 10 25 0,39 4061441 HSK50AST06084M 6,5 M6 10 20 84 10 50 0,45 4061442 HSK50AST06109M 6,5 M6 10 23 109 10 75 0,51 4061443 HSK50AST08059M 8,5 M8 13 15 59 10 25 0,41 4061444 HSK50AST08084M 8,5 M8 13 23 84 10 50 0,48 4061445 HSK50AST08109M 8,5 M8 13 23 109 10 75 0,53 4061446 HSK50AST08134M 8,5 M8 13 25 134 10 100 0,60 4061447 HSK50AST10059M 10,5 M10 18 20 59 10 25 0,44 4061448 HSK50AST10084M 10,5 M10 18 25 84 10 50 0,53 4061449 HSK50AST10109M 10,5 M10 18 28 109 10 75 0,63 4061450 HSK50AST10134M 10,5 M10 18 30 134 10 100 0,74 4061451 HSK50AST12059M 12,5 M12 21 24 59 10 25 0,46 4061452 HSK50AST12084M 12,5 M12 21 24 84 10 50 0,53 4061453 HSK50AST12109M 12,5 M12 21 31 109 10 75 0,69 4061454 HSK50AST12134M 12,5 M12 21 31 134 10 100 0,79 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. Machinable front 28-34 RWC. BB-HSK Form A Metric order number catalog number D2 L1 kg 1256059 HSK50ABB063200M 63,8 200 4,49 1256060 HSK50ABB100125M 100,8 125 5,69 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WIDIA B49 HSK50A Shank Tools
