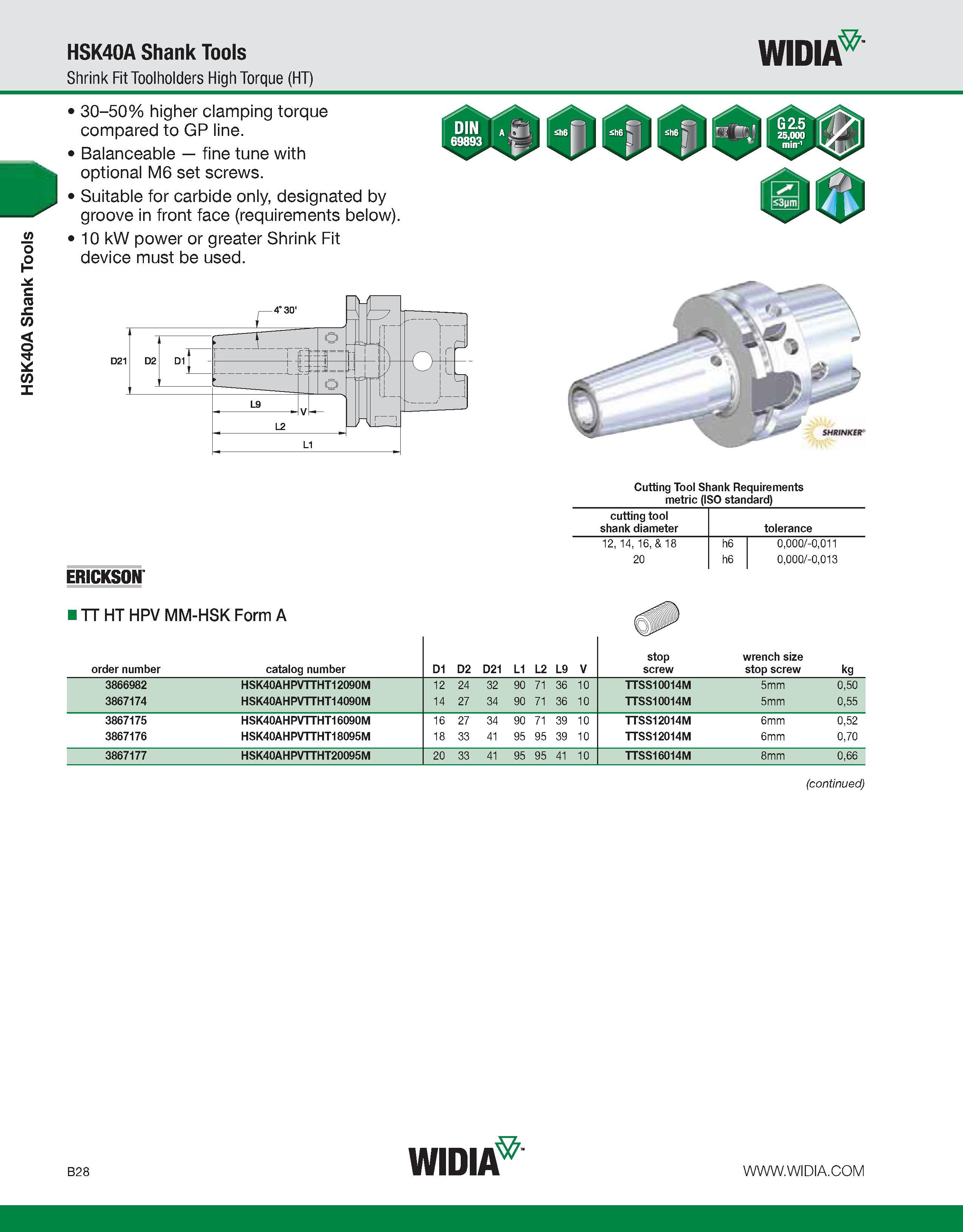

HSK40A Shank Tools HSK40A Shank Tools Shrink Fit Toolholders High Torque (HT) WIDIA 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below). 10 kW power or greater Shrink Fit device must be used. ERICKSON Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 h6 0,000/-0,013 I TT HT HPV MM-HSK Form A order number catalog number D1 D2 D21 L1 L2 L9 V stop screw wrench size stop screw kg 3866982 HSK40AHPVTTHT12090M 12 24 32 90 71 36 10 TTSS10014M 5mm 0,50 3867174 HSK40AHPVTTHT14090M 14 27 34 90 71 36 10 TTSS10014M 5mm 0,55 3867175 HSK40AHPVTTHT16090M 16 27 34 90 71 39 10 TTSS12014M 6mm 0,52 3867176 HSK40AHPVTTHT18095M 18 33 41 95 95 39 10 TTSS12014M 6mm 0,70 3867177 HSK40AHPVTTHT20095M 20 33 41 95 95 41 10 TTSS16014M 8mm 0,66 (continued) B28 WIDIA
