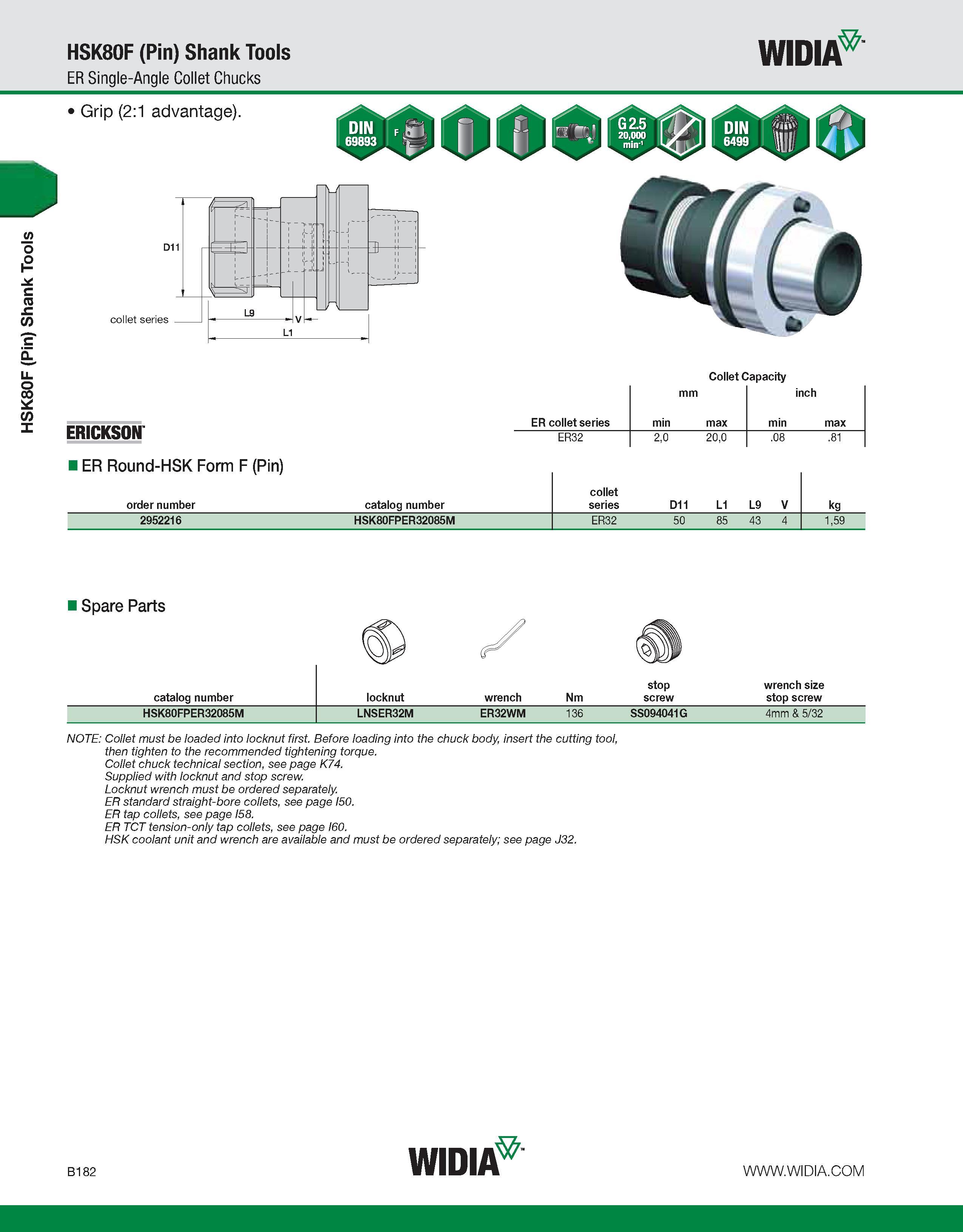

HSK80F (Pin) Shank Tools HSK80F (Pin) Shank Tools ER Single-Angle Collet Chucks WIDIA Grip (2:1 advantage). collet series L9 71 1 ERICKSON ER Round-HSK Form F (Pin) Collet Capacity mm inch ER collet series min max min max ER32 2,0 20,0 .08 .81 order number catalog number collet series D11 L1 L9 V kg 2952216 HSK80FPER32085M ER32 50 85 43 4 1,59 Spare Parts stop wrench size catalog number locknut wrench Nm screw stop screw HSK80FPER32085M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B182 WIDIA
