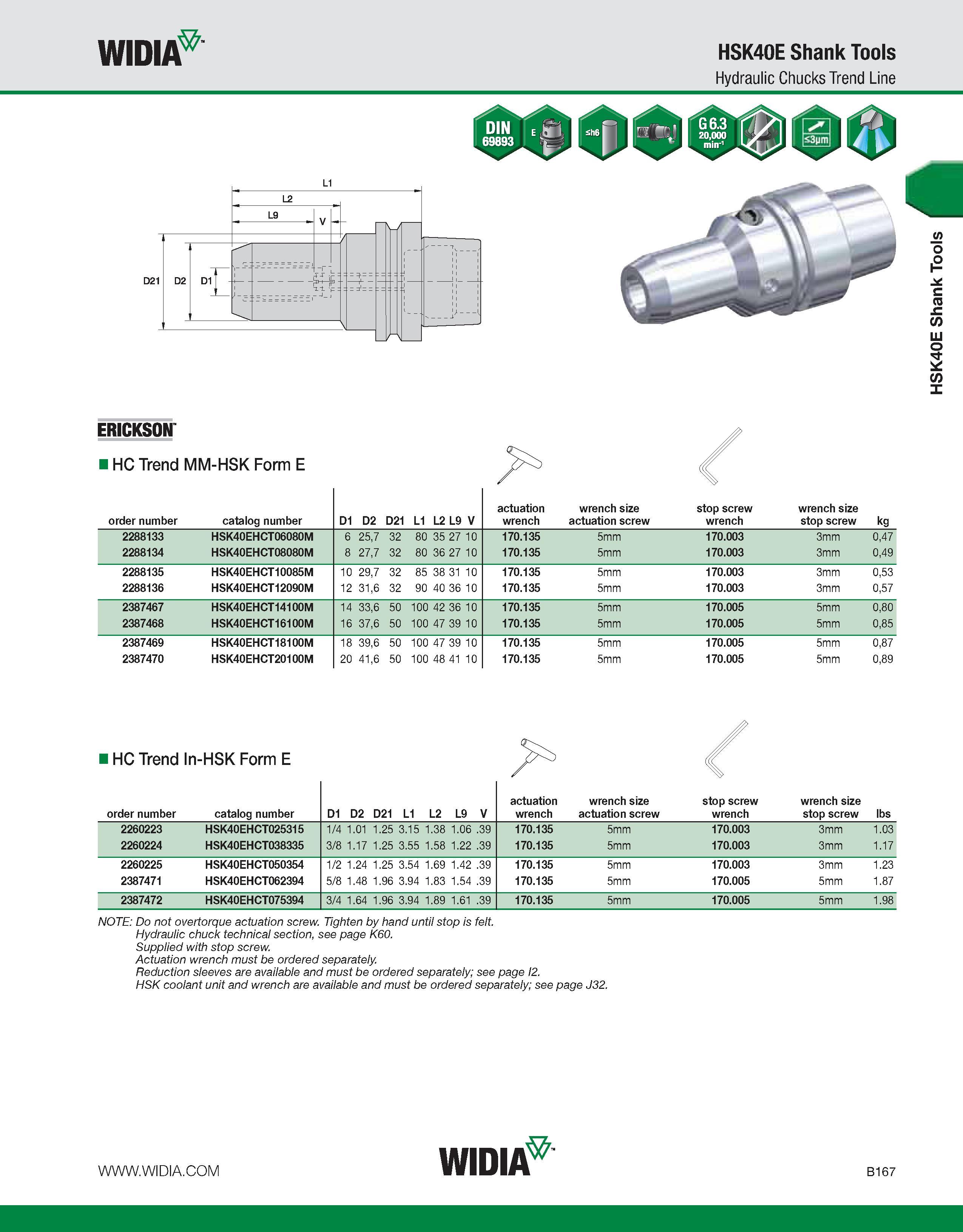

WIDIA HSK40E Shank Tools Hydraulic Chucks Trend Line ERICKSON i HC Trend MM-HSK Form E order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw kg 2288133 HSK40EHCT06080M 6 25,7 32 80 35 27 10 170.135 5mm 170.003 3mm 0,47 2288134 HSK40EHCT08080M 8 27,7 32 80 36 27 10 170.135 5mm 170.003 3mm 0,49 2288135 HSK40EHCT10085M 10 29,7 32 85 38 31 10 170.135 5mm 170.003 3mm 0,53 2288136 HSK40EHCT12090M 12 31,6 32 90 40 36 10 170.135 5mm 170.003 3mm 0,57 2387467 HSK40EHCT14100M 14 33,6 50 100 42 36 10 170.135 5mm 170.005 5mm 0,80 2387468 HSK40EHCT16100M 16 37,6 50 100 47 39 10 170.135 5mm 170.005 5mm 0,85 2387469 HSK40EHCT18100M 18 39,6 50 100 47 39 10 170.135 5mm 170.005 5mm 0,87 2387470 HSK40EHCT20100M 20 41,6 50 100 48 41 10 170.135 5mm 170.005 5mm 0,89 HC Trend In-HSK Form E order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw lbs 2260223 HSK40EHCT025315 1/4 1.01 1.25 3.15 1.38 1.06 .39 170.135 5mm 170.003 3mm 1.03 2260224 HSK40EHCT038335 3/8 1.17 1.25 3.55 1.58 1.22 .39 170.135 5mm 170.003 3mm 1.17 2260225 HSK40EHCT050354 1/2 1.24 1.25 3.54 1.69 1.42 .39 170.135 5mm 170.003 3mm 1.23 2387471 HSK40EHCT062394 5/8 1.48 1.96 3.94 1.83 1.54 .39 170.135 5mm 170.005 5mm 1.87 2387472 HSK40EHCT075394 3/4 1.64 1.96 3.94 1.89 1.61 .39 170.135 5mm 170.005 5mm 1.98 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. HSK40E Shank Tools
