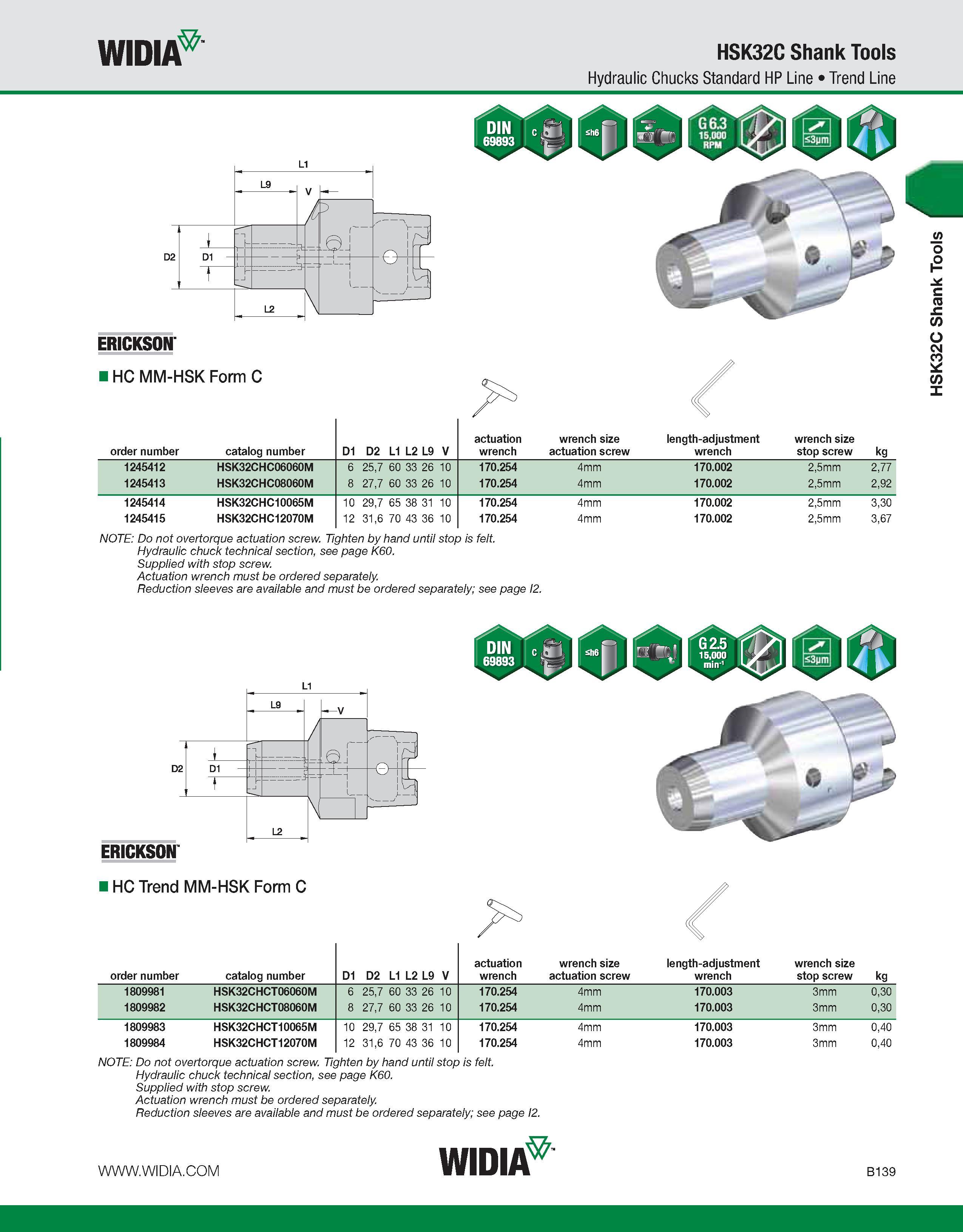

WIDIA HSK32C Shank Tools Hydraulic Chucks Standard HP Line Trend Line order number catalog number D1 D2 L1 L2 L9 V actuation wrench wrench size actuation screw length-adjustment wrench wrench size stop screw kg 1245412 HSK32CHC06060M 6 25,7 60 33 26 10 170.254 4mm 170.002 2,5mm 2,77 1245413 HSK32CHC08060M 8 27,7 60 33 26 10 170.254 4mm 170.002 2,5mm 2,92 1245414 HSK32CHC10065M 10 29,7 65 38 31 10 170.254 4mm 170.002 2,5mm 3,30 1245415 HSK32CHC12070M 12 31,6 70 43 36 10 170.254 4mm 170.002 2,5mm 3,67 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. ERICKSON HC Trend MM-HSK Form C order number catalog number D1 D2 L1 L2 L9 V actuation wrench wrench size actuation screw length-adjustment wrench wrench size stop screw kg 1809981 HSK32CHCT06060M 6 25,7 60 33 26 10 170.254 4mm 170.003 3mm 0,30 1809982 HSK32CHCT08060M 8 27,7 60 33 26 10 170.254 4mm 170.003 3mm 0,30 1809983 HSK32CHCT10065M 10 29,7 65 38 31 10 170.254 4mm 170.003 3mm 0,40 1809984 HSK32CHCT12070M 12 31,6 70 43 36 10 170.254 4mm 170.003 3mm 0,40 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2.
