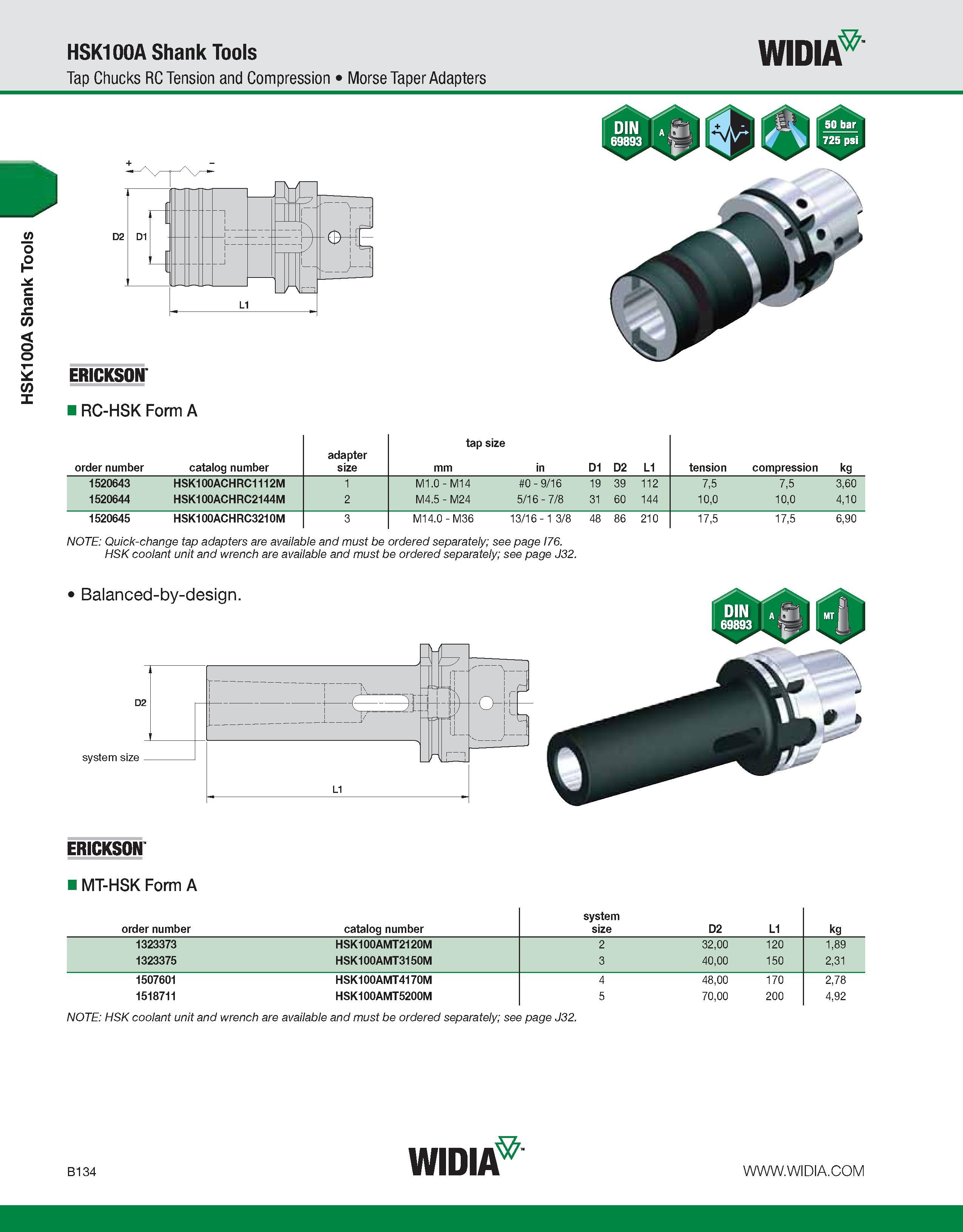

HSK100A Shank Tools HSK100A Shank Tools Tap Chucks RC Tension and Compression Morse Taper Adapters WIDIA ERICKSON RC-HSK Form A order number catalog number adapter size tap size mm in D1 D2 L1 tension compression kg 1520643 HSK100ACHRC1112M 1 M1.0 - M14 0 - 9/16 19 39 112 7,5 7,5 3,60 1520644 HSK100ACHRC2144M 2 M4.5 - M24 5/16 - 7/8 31 60 144 10,0 10,0 4,10 1520645 HSK100ACHRC3210M 3 M14.0 - M36 13/16 - 1 3/8 48 86 210 17,5 17,5 6,90 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. HSK coolant unit and wrench are available and must be ordered separately; see page J32. ERICKSON MT-HSK Form A order number catalog number system size D2 L1 kg 1323373 HSK100AMT2120M 2 32,00 120 1,89 1323375 HSK100AMT3150M 3 40,00 150 2,31 1507601 HSK100AMT4170M 4 48,00 170 2,78 1518711 HSK100AMT5200M 5 70,00 200 4,92 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. B134 WIDIA
