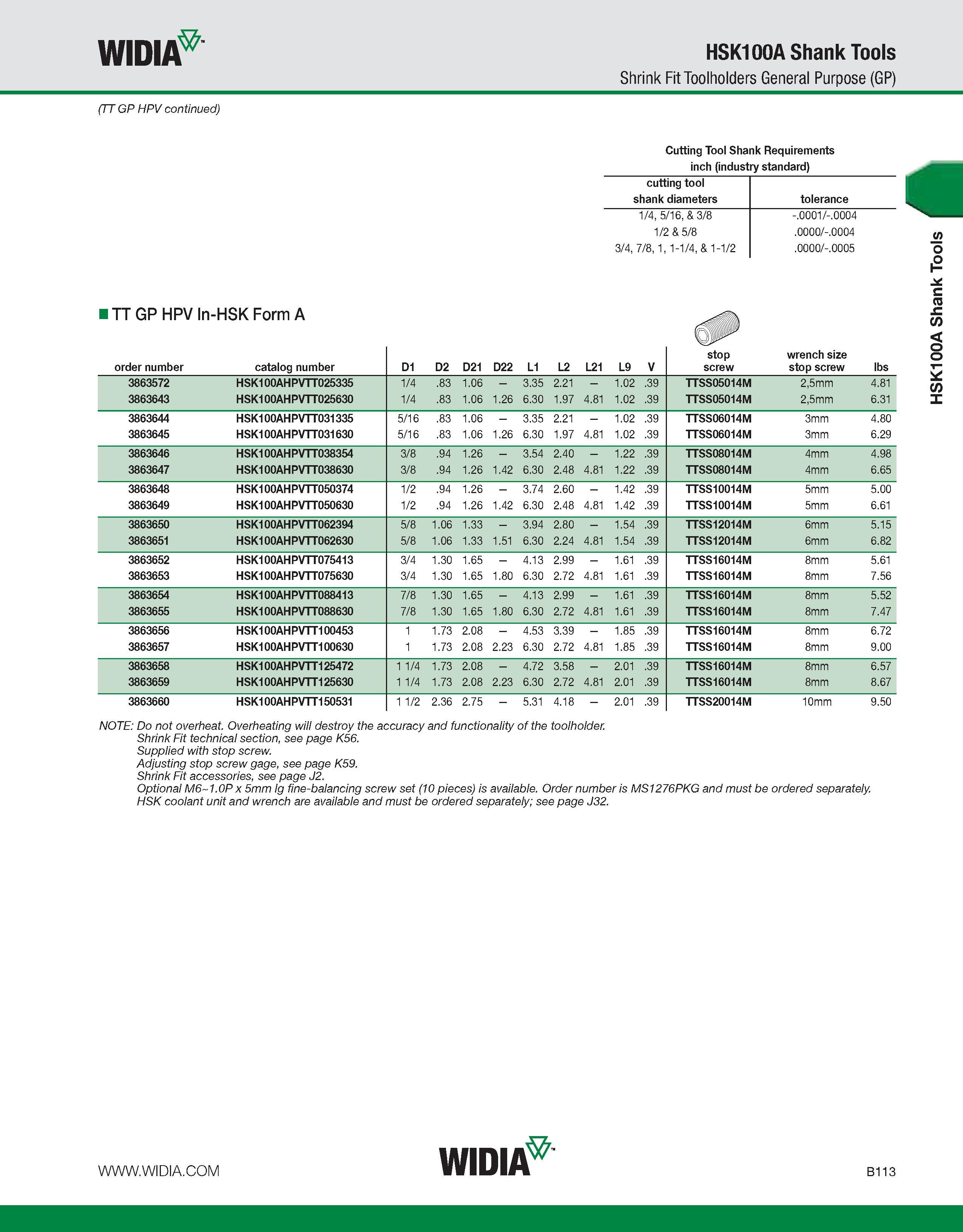

WIDIA HSK100A Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP HPV continued) Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/4, 5/16, & 3/8 -.0001/-.0004 1/2 & 5/8 .0000/-.0004 3/4, 7/8, 1, 1-1/4, & 1-1/2 .0000/-.0005 ITT GP HPV In-HSK Form A order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw lbs 3863572 HSK100AHPVTT025335 1/4 .83 1.06 - 3.35 2.21 - 1.02 .39 TTSS05014M 2,5mm 4.81 3863643 HSK100AHPVTT025630 1/4 .83 1.06 1.26 6.30 1.97 4.81 1.02 .39 TTSS05014M 2,5mm 6.31 3863644 HSK100AHPVTT031335 5/16 .83 1.06 - 3.35 2.21 - 1.02 .39 TTSS06014M 3mm 4.80 3863645 HSK100AHPVTT031630 5/16 .83 1.06 1.26 6.30 1.97 4.81 1.02 .39 TTSS06014M 3mm 6.29 3863646 HSK100AHPVTT038354 3/8 .94 1.26 - 3.54 2.40 - 1.22 .39 TTSS08014M 4mm 4.98 3863647 HSK100AHPVTT038630 3/8 .94 1.26 1.42 6.30 2.48 4.81 1.22 .39 TTSS08014M 4mm 6.65 3863648 HSK100AHPVTT050374 1/2 .94 1.26 - 3.74 2.60 - 1.42 .39 TTSS10014M 5mm 5.00 3863649 HSK100AHPVTT050630 1/2 .94 1.26 1.42 6.30 2.48 4.81 1.42 .39 TTSS10014M 5mm 6.61 3863650 HSK100AHPVTT062394 5/8 1.06 1.33 - 3.94 2.80 - 1.54 .39 TTSS12014M 6mm 5.15 3863651 HSK100AHPVTT062630 5/8 1.06 1.33 1.51 6.30 2.24 4.81 1.54 .39 TTSS12014M 6mm 6.82 3863652 HSK100AHPVTT075413 3/4 1.30 1.65 - 4.13 2.99 - 1.61 .39 TTSS16014M 8mm 5.61 3863653 HSK100AHPVTT075630 3/4 1.30 1.65 1.80 6.30 2.72 4.81 1.61 .39 TTSS16014M 8mm 7.56 3863654 HSK100AHPVTT088413 7/8 1.30 1.65 - 4.13 2.99 - 1.61 .39 TTSS16014M 8mm 5.52 3863655 HSK100AHPVTT088630 7/8 1.30 1.65 1.80 6.30 2.72 4.81 1.61 .39 TTSS16014M 8mm 7.47 3863656 HSK100AHPVTT100453 1 1.73 2.08 - 4.53 3.39 - 1.85 .39 TTSS16014M 8mm 6.72 3863657 HSK100AHPVTT100630 1 1.73 2.08 2.23 6.30 2.72 4.81 1.85 .39 TTSS16014M 8mm 9.00 3863658 HSK100AHPVTT125472 1 1/4 1.73 2.08 - 4.72 3.58 - 2.01 .39 TTSS16014M 8mm 6.57 3863659 HSK100AHPVTT125630 1 1/4 1.73 2.08 2.23 6.30 2.72 4.81 2.01 .39 TTSS16014M 8mm 8.67 3863660 HSK100AHPVTT150531 1 1/2 2.36 2.75 - 5.31 4.18 - 2.01 .39 TTSS20014M 10mm 9.50 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Shrink Fit accessories, see page J2. Optional M6 1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. HSK coolant unit and wrench are available and must be ordered separately; see page J32. HSK100A Shank Tools
