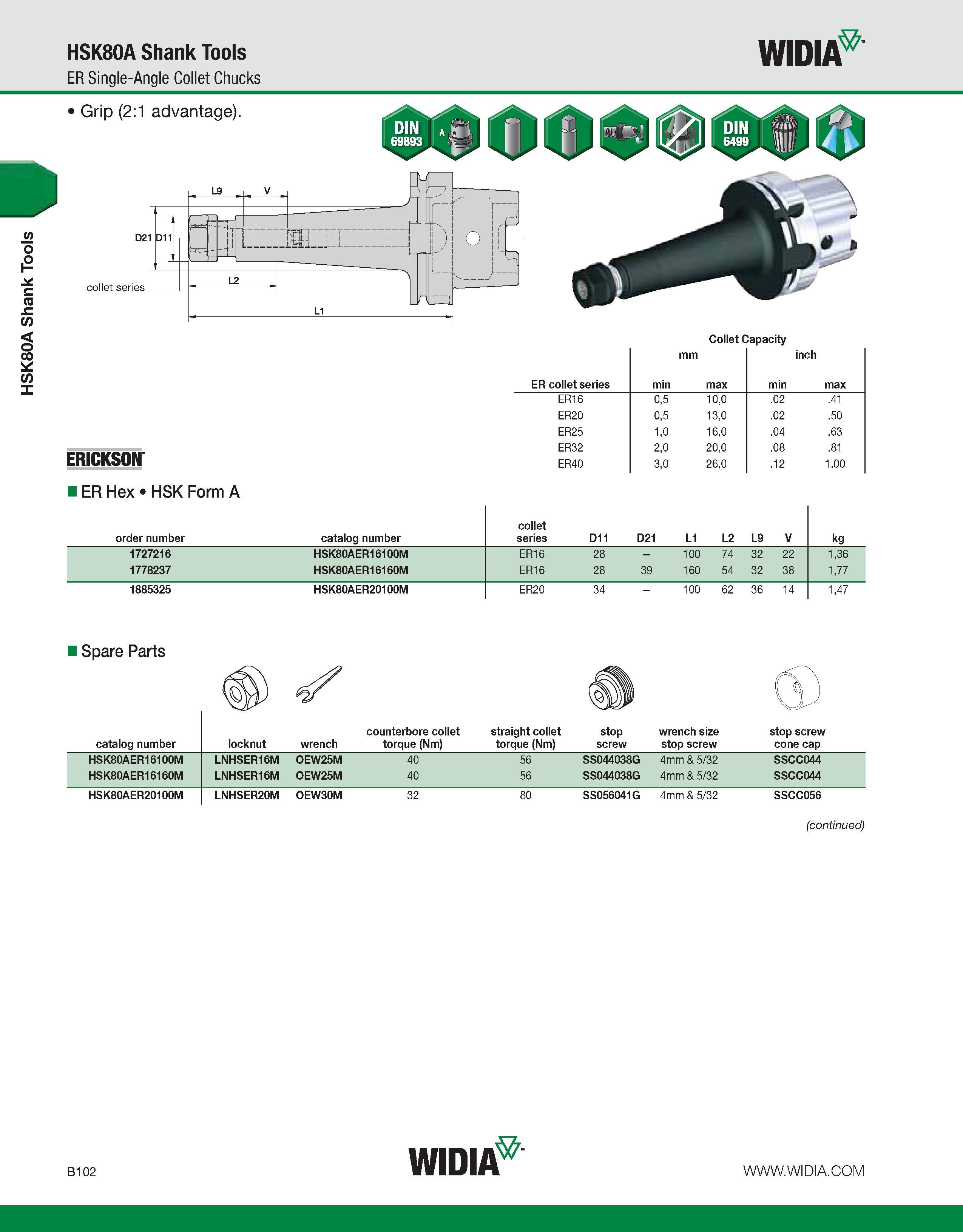

HSK80A Shank Tools HSK80A Shank Tools ER Single-Angle Collet Chucks WIDIA Grip (2:1 advantage). Collet Capacity ERICKSON ER collet series min mm max min inch max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER Hex HSK Form A order number catalog number collet series D11 D21 L1 L2 L9 V kg 1727216 HSK80AER16100M ER16 28 - 100 74 32 22 1,36 1778237 HSK80AER16160M ER16 28 39 160 54 32 38 1,77 1885325 HSK80AER20100M ER20 34 - 100 62 36 14 1,47 Spare Parts counterbore collet straight collet stop wrench size stop screw catalog number locknut wrench torque (Nm) torque (Nm) screw stop screw cone cap HSK80AER16100M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 SSCC044 HSK80AER16160M LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 SSCC044 HSK80AER20100M LNHSER20M 0EW30M 32 80 SS056041G 4mm & 5/32 SSCC056 (continued) B102 WIDIA
