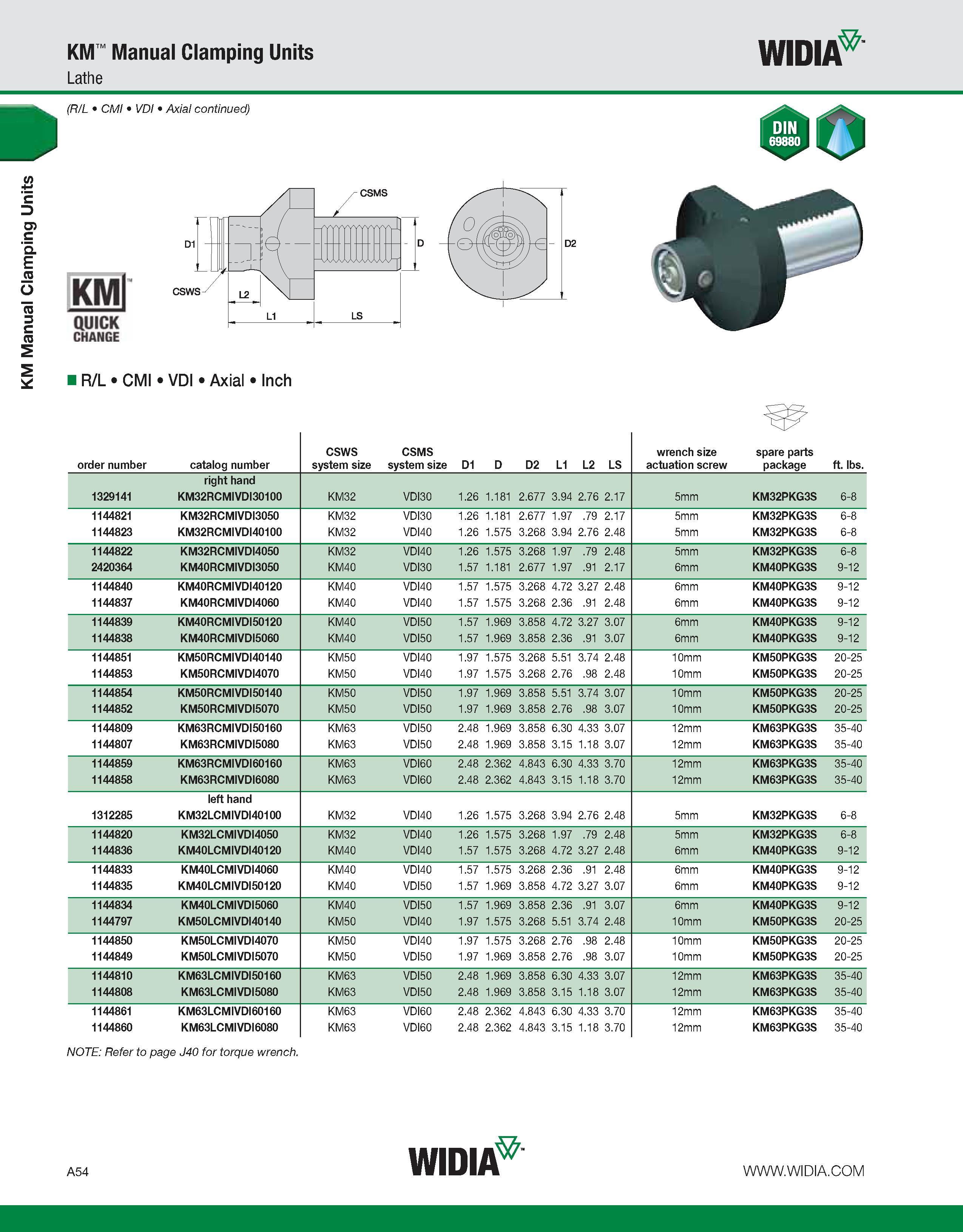

KM Manual Clamping Units KM Manual Clamping Units Lathe WIDIA (R/L CMI VDI Axial continued) ml FKifclT CHANGE R/L CMI VDI Axial Inch order number catalog number CSWS system size CSMS system size D1 D D2 L1 L2 LS wrench size actuation screw spare parts package ft. lbs. 1329141 right hand KM32RCMIVDI30100 KM32 VDI30 1.26 1.181 2.677 3.94 2.76 2.17 5mm KM32PKG3S 6-8 1144821 KM32RCMIVDI3050 KM32 VDI30 1.26 1.181 2.677 1.97 .79 2.17 5mm KM32PKG3S 6-8 1144823 KM32RCMIVDI40100 KM32 VDI40 1.26 1.575 3.268 3.94 2.76 2.48 5mm KM32PKG3S 6-8 1144822 KM32RCMIVDI4050 KM32 VDI40 1.26 1.575 3.268 1.97 .79 2.48 5mm KM32PKG3S 6-8 2420364 KM40RCMIVDI3050 KM40 VDI30 1.57 1.181 2.677 1.97 .91 2.17 6mm KM40PKG3S 9-12 1144840 KM40RCMIVDI40120 KM40 VDI40 1.57 1.575 3.268 4.72 3.27 2.48 6mm KM40PKG3S 9-12 1144837 KM40RCMIVDI4060 KM40 VDI40 1.57 1.575 3.268 2.36 .91 2.48 6mm KM40PKG3S 9-12 1144839 KM40RCMIVDI50120 KM40 VDI50 1.57 1.969 3.858 4.72 3.27 3.07 6mm KM40PKG3S 9-12 1144838 KM40RCMIVDI5060 KM40 VDI50 1.57 1.969 3.858 2.36 .91 3.07 6mm KM40PKG3S 9-12 1144851 KM50RCMIVDI40140 KM50 VDI40 1.97 1.575 3.268 5.51 3.74 2.48 10mm KM50PKG3S 20-25 1144853 KM50RCMIVDI4070 KM50 VDI40 1.97 1.575 3.268 2.76 .98 2.48 10mm KM50PKG3S 20-25 1144854 KM50RCMIVDI50140 KM50 VDI50 1.97 1.969 3.858 5.51 3.74 3.07 10mm KM50PKG3S 20-25 1144852 KM50RCMIVDI5070 KM50 VDI50 1.97 1.969 3.858 2.76 .98 3.07 10mm KM50PKG3S 20-25 1144809 KM63RCMIVDI50160 KM63 VDI50 2.48 1.969 3.858 6.30 4.33 3.07 12mm KM63PKG3S 35-40 1144807 KM63RCMIVDI5080 KM63 VDI50 2.48 1.969 3.858 3.15 1.18 3.07 12mm KM63PKG3S 35-40 1144859 KM63RCMIVDI60160 KM63 VDI60 2.48 2.362 4.843 6.30 4.33 3.70 12mm KM63PKG3S 35-40 1144858 KM63RCMIVDI6080 KM63 VDI60 2.48 2.362 4.843 3.15 1.18 3.70 12mm KM63PKG3S 35-40 1312285 left hand KM32LCMIVDI40100 KM32 VDI40 1.26 1.575 3.268 3.94 2.76 2.48 5mm KM32PKG3S 6-8 1144820 KM32LCMIVDI4050 KM32 VDI40 1.26 1.575 3.268 1.97 .79 2.48 5mm KM32PKG3S 6-8 1144836 KM40LCMIVDI40120 KM40 VDI40 1.57 1.575 3.268 4.72 3.27 2.48 6mm KM40PKG3S 9-12 1144833 KM40LCMIVDI4060 KM40 VDI40 1.57 1.575 3.268 2.36 .91 2.48 6mm KM40PKG3S 9-12 1144835 KM40LCMIVDI50120 KM40 VDI50 1.57 1.969 3.858 4.72 3.27 3.07 6mm KM40PKG3S 9-12 1144834 KM40LCMIVDI5060 KM40 VDI50 1.57 1.969 3.858 2.36 .91 3.07 6mm KM40PKG3S 9-12 1144797 KM50LCMIVDI40140 KM50 VDI40 1.97 1.575 3.268 5.51 3.74 2.48 10mm KM50PKG3S 20-25 1144850 KM50LCMIVDI4070 KM50 VDI40 1.97 1.575 3.268 2.76 .98 2.48 10mm KM50PKG3S 20-25 1144849 KM50LCMIVDI5070 KM50 VDI50 1.97 1.969 3.858 2.76 .98 3.07 10mm KM50PKG3S 20-25 1144810 KM63LCMIVDI50160 KM63 VDI50 2.48 1.969 3.858 6.30 4.33 3.07 12mm KM63PKG3S 35-40 1144808 KM63LCMIVDI5080 KM63 VDI50 2.48 1.969 3.858 3.15 1.18 3.07 12mm KM63PKG3S 35-40 1144861 KM63LCMIVDI60160 KM63 VDI60 2.48 2.362 4.843 6.30 4.33 3.70 12mm KM63PKG3S 35-40 1144860 KM63LCMIVDI6080 KM63 VDI60 2.48 2.362 4.843 3.15 1.18 3.70 12mm KM63PKG3S 35-40 NOTE: Refer to page J40 for torque wrench. A54 VVIUIn
