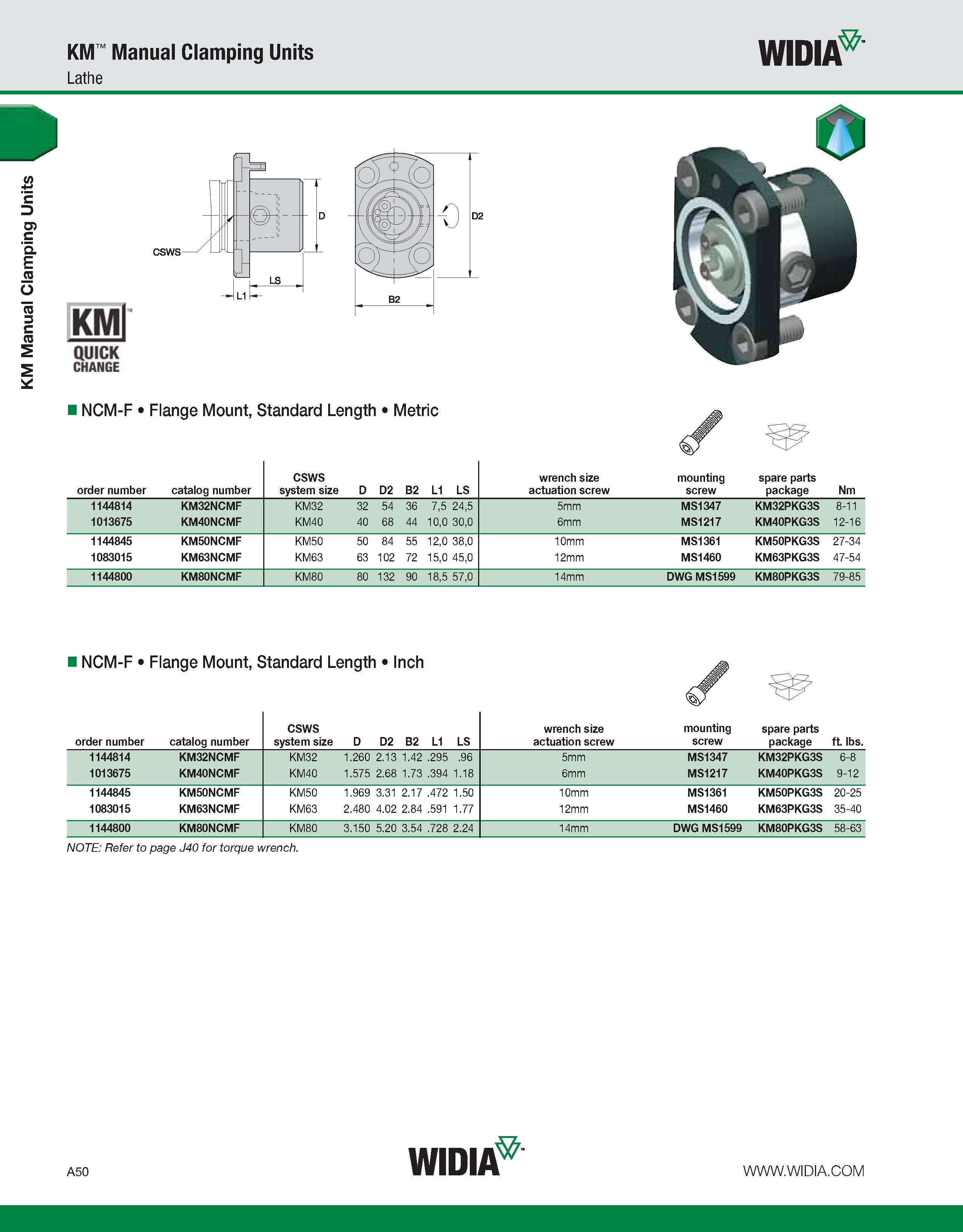

KM Manual Clamping Units KM Manual Clamping Units Lathe WIDIA KMl QUICK CHANGE NCM-F Flange Mount, Standard Length Metric order number catalog number CSWS system size D D2 B2 L1 LS wrench size actuation screw mounting screw spare parts package Nm 1144814 KM32NCMF KM32 32 54 36 7,5 24,5 5mm MS1347 KM32PKG3S 8-11 1013675 KM40NCMF KM40 40 68 44 10,0 30,0 6mm MS1217 KM40PKG3S 12-16 1144845 KM50NCMF KM50 50 84 55 12,0 38,0 10mm MS1361 KM50PKG3S 27-34 1083015 KM63NCMF KM63 63 102 72 15,0 45,0 12mm MS1460 KM63PKG3S 47-54 1144800 KM80NCMF KM80 80 132 90 18,5 57,0 14mm DWG MS1599 KM80PKG3S 79-85 NCM-F Flange Mount, Standard Length Inch order number catalog number CSWS system size D D2 L1 2 B LS wrench size actuation screw mounting screw spare parts package ft. lbs. 1144814 KM32NCMF KM32 1.260 2.13 1.42 .295 .96 5mm MS1347 KM32PKG3S 6-8 1013675 KM40NCMF KM40 1.575 2.68 1.73 .394 1.18 6mm MS1217 KM40PKG3S 9-12 1144845 KM50NCMF KM50 1.969 3.31 2.17 .472 1.50 10mm MS1361 KM50PKG3S 20-25 1083015 KM63NCMF KM63 2.480 4.02 2.84 .591 1.77 12mm MS1460 KM63PKG3S 35-40 1144800 KM80NCMF KM80 3.150 5.20 3.54 .728 2.24 14mm DWG MS1599 KM80PKG3S 58-63 NOTE: Refer to page J40 for torque wrench. A50 WIDIA
