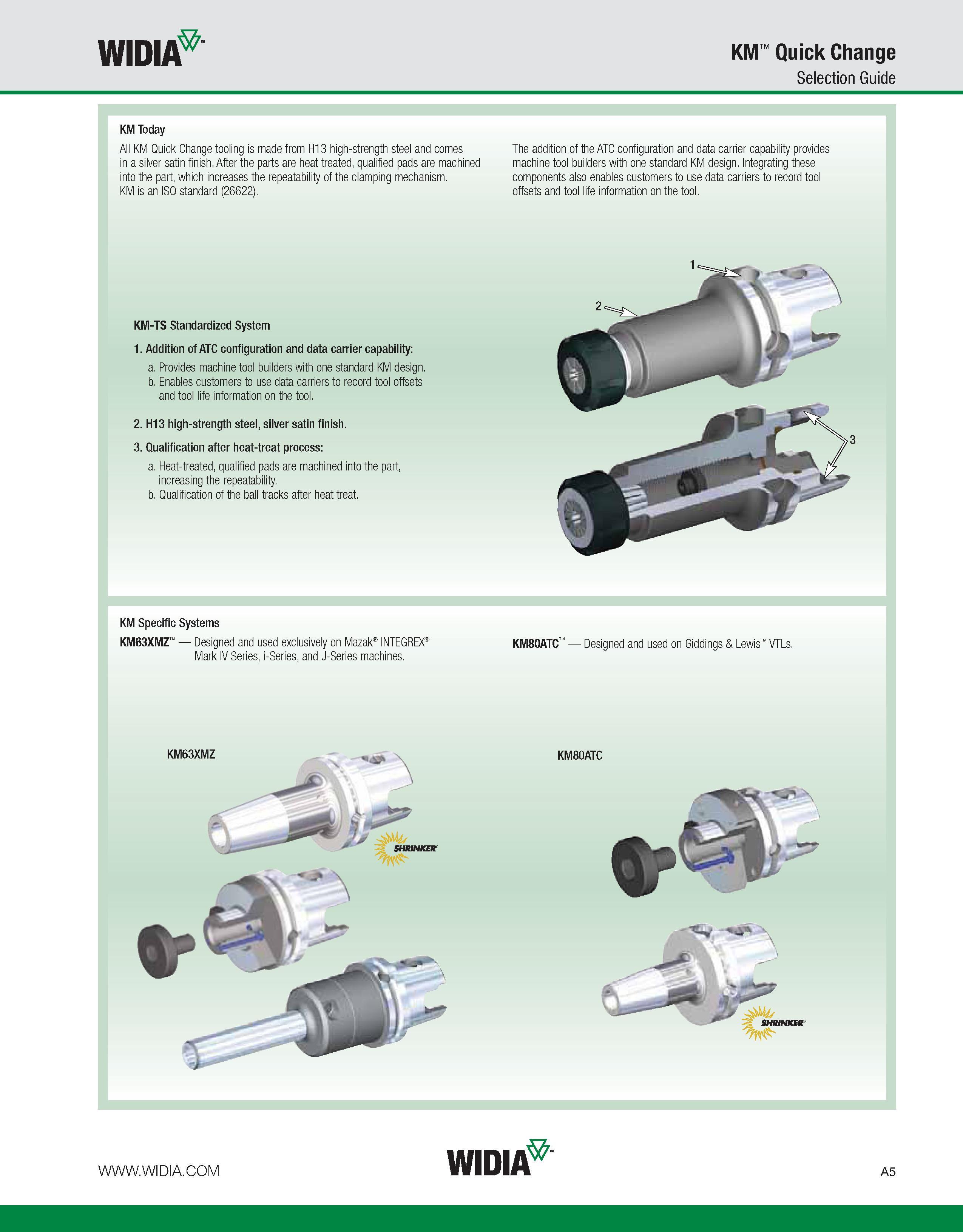

WIDIA KM Quick Change Selection Guide KM Today All KM Quick Change tooling is made from H13 high-strength steel and comes in a silver satin finish. After the parts are heat treated, qualified pads are machined into the part, which increases the repeatability of the clamping mechanism. KM is an ISO standard (26622). The addition of the ATC configuration and data carrier capability provides machine tool builders with one standard KM design. Integrating these components also enables customers to use data carriers to record tool offsets and tool life information on the tool. KM-TS Standardized System 1. Addition of ATC configuration and data carrier capability: a. Provides machine tool builders with one standard KM design. b. Enables customers to use data carriers to record tool offsets and tool life information on the tool. 2. H13 high-strength steel, silver satin finish. 3. Qualification after heat-treat process: a. Heat-treated, qualified pads are machined into the part, increasing the repeatability. b. Qualification of the ball tracks after heat treat. KM Specific Systems KM63XMZ Designed and used exclusively on Mazak INTEGREX Mark IV Series, i-Series, and J-Series machines. KM80ATC Designed and used on Giddings & Lewis VTLs. 3 WIDIA A5
