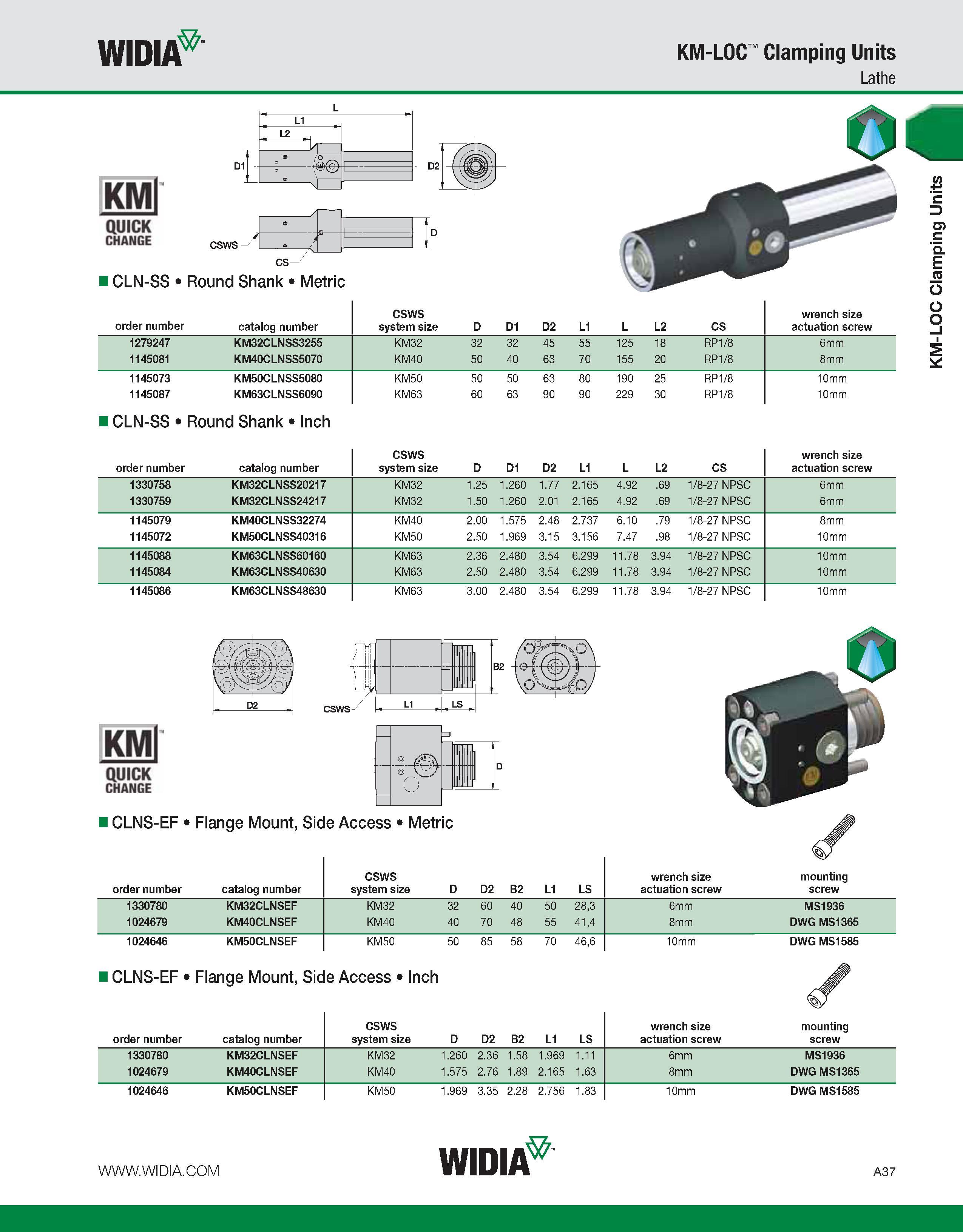

WIDIA KM-LOC Clamping Units Lathe KMl QUICK CHANGE ICLN-SS Round Shank Metric CSWS wrench size order number catalog number system size D D1 D2 L1 L L2 CS actuation screw 1279247 KM32CLNSS3255 KM32 32 32 45 55 125 18 RP1/8 6mm 1145081 KM40CLNSS5070 KM40 50 40 63 70 155 20 RP1/8 8mm 1145073 KM50CLNSS5080 KM50 50 50 63 80 190 25 RP1/8 10mm 1145087 KM63CLNSS6090 KM63 60 63 90 90 229 30 RP1/8 10mm CLN-SS Round Shank Inch order number catalog number CSWS system size D D1 D2 L1 L L2 CS wrench size actuation screw 1330758 KM32CLNSS20217 KM32 1.25 1.260 1.77 2.165 4.92 .69 1/8-27 NPSC 6mm 1330759 KM32CLNSS24217 KM32 1.50 1.260 2.01 2.165 4.92 .69 1/8-27 NPSC 6mm 1145079 KM40CLNSS32274 KM40 2.00 1.575 2.48 2.737 6.10 .79 1/8-27 NPSC 8mm 1145072 KM50CLNSS40316 KM50 2.50 1.969 3.15 3.156 7.47 .98 1/8-27 NPSC 10mm 1145088 KM63CLNSS60160 KM63 2.36 2.480 3.54 6.299 11.78 3.94 1/8-27 NPSC 10mm 1145084 KM63CLNSS40630 KM63 2.50 2.480 3.54 6.299 11.78 3.94 1/8-27 NPSC 10mm 1145086 KM63CLNSS48630 KM63 3.00 2.480 3.54 6.299 11.78 3.94 1/8-27 NPSC 10mm KMl QUICK CHANGE LS _ < ) ICLNS-EF Flange Mount, Side Access Metric order number catalog number CSWS system size D D2 B2 L1 LS wrench size actuation screw mounting screw 1330780 KM32CLNSEF KM32 32 60 40 50 28,3 6mm MS1936 1024679 KM40CLNSEF KM40 40 70 48 55 41,4 8mm DWG MS1365 1024646 KM50CLNSEF KM50 50 85 58 70 46,6 10mm DWG MS1585 CLNS-EF Flange Mount, Side Access Inch order number catalog number CSWS system size D D2 B2 L1 LS wrench size actuation screw mounting screw 1330780 KM32CLNSEF KM32 1.260 2.36 1.58 1.969 1.11 6mm MS1936 1024679 KM40CLNSEF KM40 1.575 2.76 1.89 2.165 1.63 8mm DWG MS1365 1024646 KM50CLNSEF KM50 1.969 3.35 2.28 2.756 1.83 10mm DWG MS1585 KM-LOC Clamping Units
