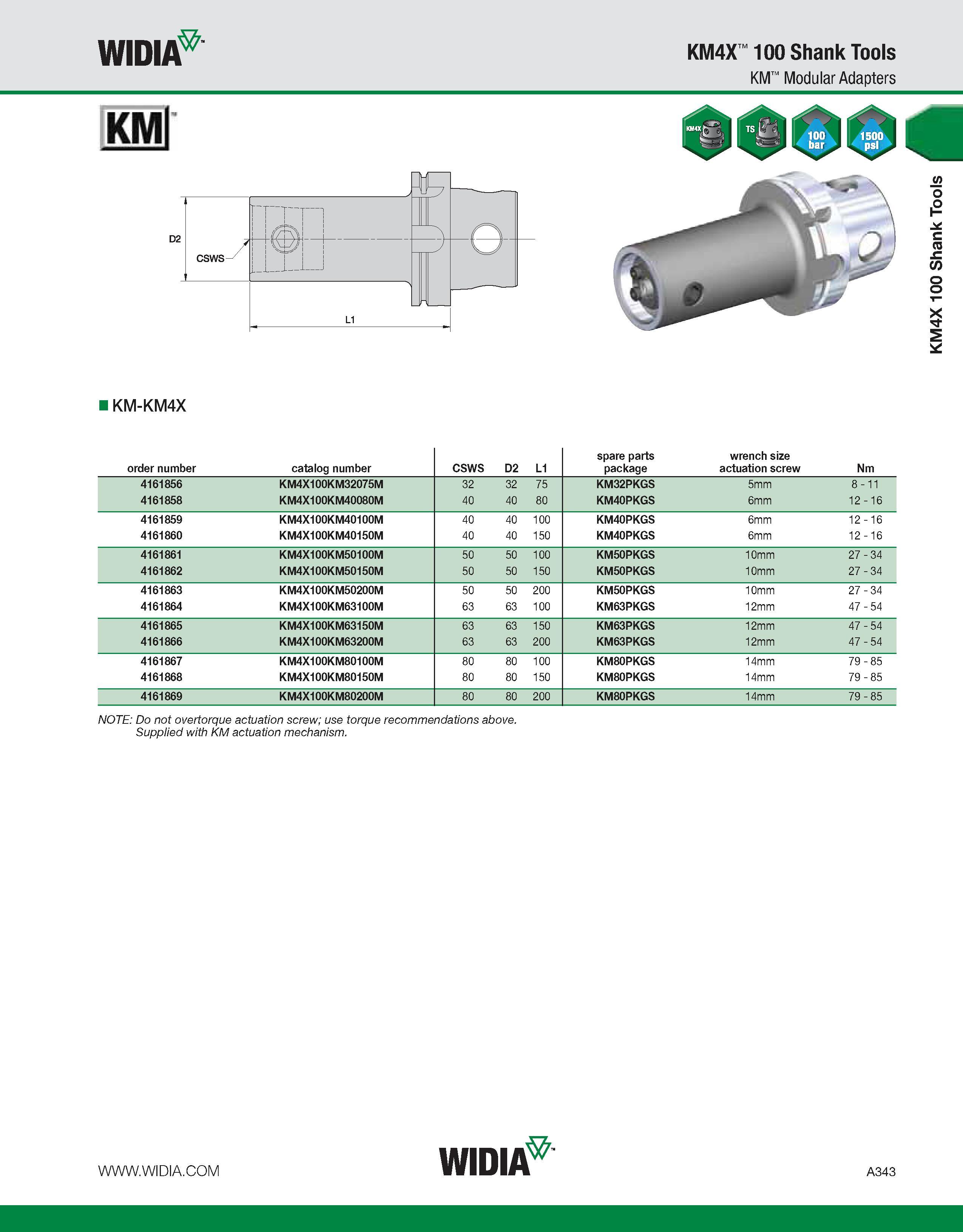

WIDIA KM4X 100 Shank Tools KM Modular Adapters KM-KM4X order number catalog number CSWS D2 L1 spare parts package wrench size actuation screw Nm 4161856 KM4X100KM32075M 32 32 75 KM32PKGS 5mm 8 - 11 4161858 KM4X100KM40080M 40 40 80 KM40PKGS 6mm 12 - 16 4161859 KM4X100KM40100M 40 40 100 KM40PKGS 6mm 12 - 16 4161860 KM4X100KM40150M 40 40 150 KM40PKGS 6mm 12 - 16 4161861 KM4X100KM50100M 50 50 100 KM50PKGS 10mm 27 - 34 4161862 KM4X100KM50150M 50 50 150 KM50PKGS 10mm 27 - 34 4161863 KM4X100KM50200M 50 50 200 KM50PKGS 10mm 27 - 34 4161864 KM4X100KM63100M 63 63 100 KM63PKGS 12mm 47 - 54 4161865 KM4X100KM63150M 63 63 150 KM63PKGS 12mm 47 - 54 4161866 KM4X100KM63200M 63 63 200 KM63PKGS 12mm 47 - 54 4161867 KM4X100KM80100M 80 80 100 KM80PKGS 14mm 79 - 85 4161868 KM4X100KM80150M 80 80 150 KM80PKGS 14mm 79 - 85 4161869 KM4X100KM80200M 80 80 200 KM80PKGS 14mm 79 - 85 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with Km actuation mechanism. KM4X 100 Shank Tools
