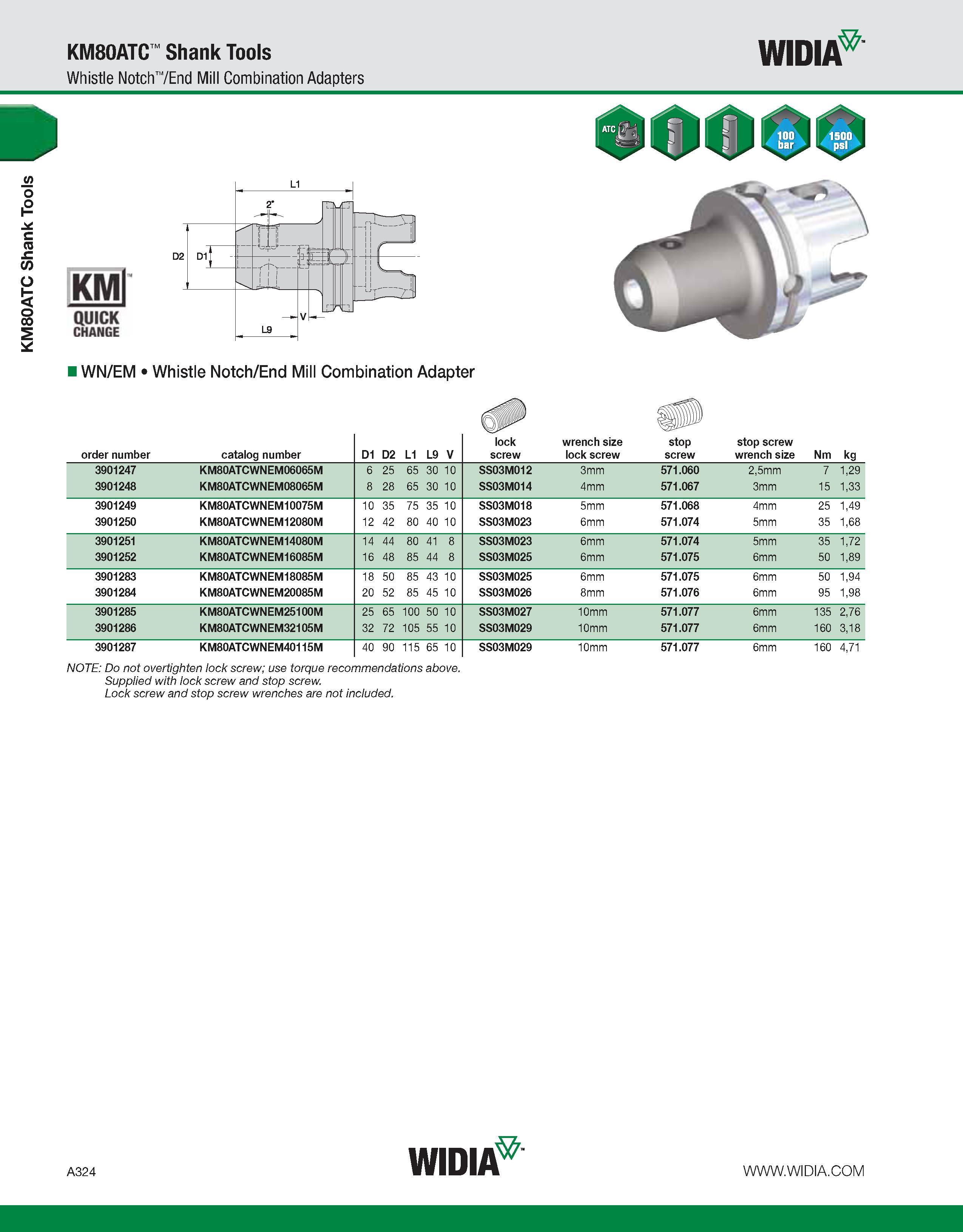

KM80ATC Shank Tools KM80ATC Shank Tools Whistle Notch /End Mill Combination Adapters WIDIA KMl QUICK CHANGE IWN/EM Whistle Notch/End Mill Combination Adapter order number catalog number D1 D2 L1 L9 V lock screw wrench size lock screw stop screw stop screw wrench size Nm kg 3901247 KM80ATCWNEM06065M 6 25 65 30 10 SS03M012 3mm 571.060 2,5mm 7 1,29 3901248 KM80ATCWNEM08065M 8 28 65 30 10 SS03M014 4mm 571.067 3mm 15 1,33 3901249 KM80ATCWNEM10075M 10 35 75 35 10 SS03M018 5mm 571.068 4mm 25 1,49 3901250 KM80ATCWNEM12080M 12 42 80 40 10 SS03M023 6mm 571.074 5mm 35 1,68 3901251 KM80ATCWNEM14080M 14 44 80 41 8 SS03M023 6mm 571.074 5mm 35 1,72 3901252 KM80ATCWNEM16085M 16 48 85 44 8 SS03M025 6mm 571.075 6mm 50 1,89 3901283 KM80ATCWNEM18085M 18 50 85 43 10 SS03M025 6mm 571.075 6mm 50 1,94 3901284 KM80ATCWNEM20085M 20 52 85 45 10 SS03M026 8mm 571.076 6mm 95 1,98 3901285 KM80ATCWNEM25100M 25 65 100 50 10 SS03M027 10mm 571.077 6mm 135 2,76 3901286 KM80ATCWNEM32105M 32 72 105 55 10 SS03M029 10mm 571.077 6mm 160 3,18 3901287 KM80ATCWNEM40115M 40 90 115 65 10 SS03M029 10mm 571.077 6mm 160 4,71 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. A324 WIDIA
