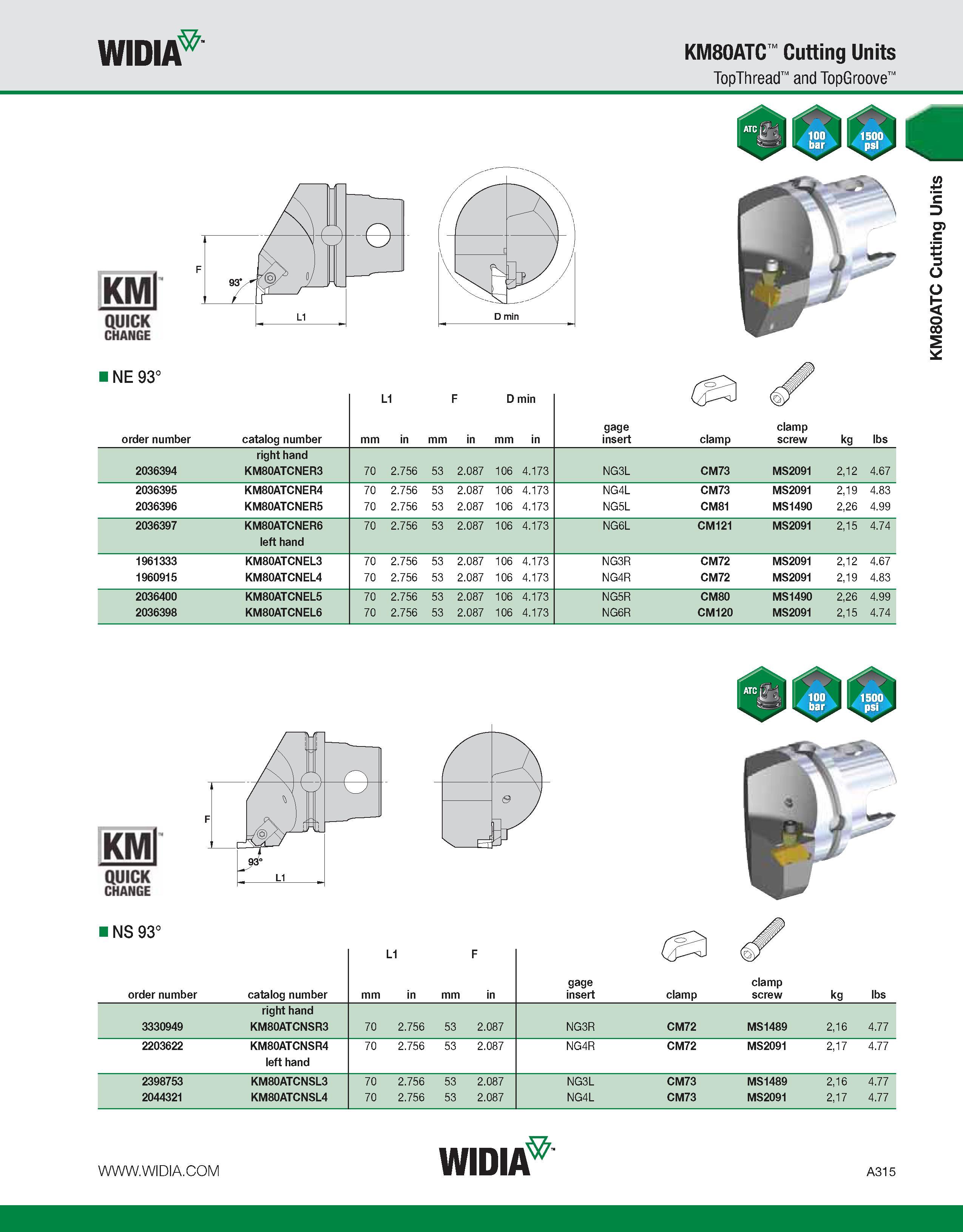

WIDIA KM80ATC Cutting Units TopThread and TopGroove KMl QUICK CHANGE I NE 93° order number catalog number mm L1 in mm F in D min mm in gage insert clamp (jjy clamp screw kg lbs right hand 2036394 KM80ATCNER3 70 2.756 53 2.087 106 4.173 NG3L CM73 MS2091 2,12 4.67 2036395 KM80ATCNER4 70 2.756 53 2.087 106 4.173 NG4L CM73 MS2091 2,19 4.83 2036396 KM80ATCNER5 70 2.756 53 2.087 106 4.173 NG5L CM81 MS1490 2,26 4.99 2036397 KM80ATCNER6 70 2.756 53 2.087 106 4.173 NG6L CM121 MS2091 2,15 4.74 left hand 1961333 KM80ATCNEL3 70 2.756 53 2.087 106 4.173 NG3R CM72 MS2091 2,12 4.67 1960915 KM80ATCNEL4 70 2.756 53 2.087 106 4.173 NG4R CM72 MS2091 2,19 4.83 2036400 KM80ATCNEL5 70 2.756 53 2.087 106 4.173 NG5R CM80 MS1490 2,26 4.99 2036398 KM80ATCNEL6 70 2.756 53 2.087 106 4.173 NG6R CM120 MS2091 2,15 4.74 KMl QUICK CHANGE I NS 93° order number catalog number mm L1 in mm F in gage insert clamp %iy clamp screw kg lbs right hand 3330949 KM80ATCNSR3 70 2.756 53 2.087 NG3R CM72 MS1489 2,16 4.77 2203622 KM80ATCNSR4 left hand 70 2.756 53 2.087 NG4R CM72 MS2091 2,17 4.77 2398753 KM80ATCNSL3 70 2.756 53 2.087 NG3L CM73 MS1489 2,16 4.77 2044321 KM80ATCNSL4 70 2.756 53 2.087 NG4L CM73 MS2091 2,17 4.77 WIDIA A315 KM80ATC Cutting Units
