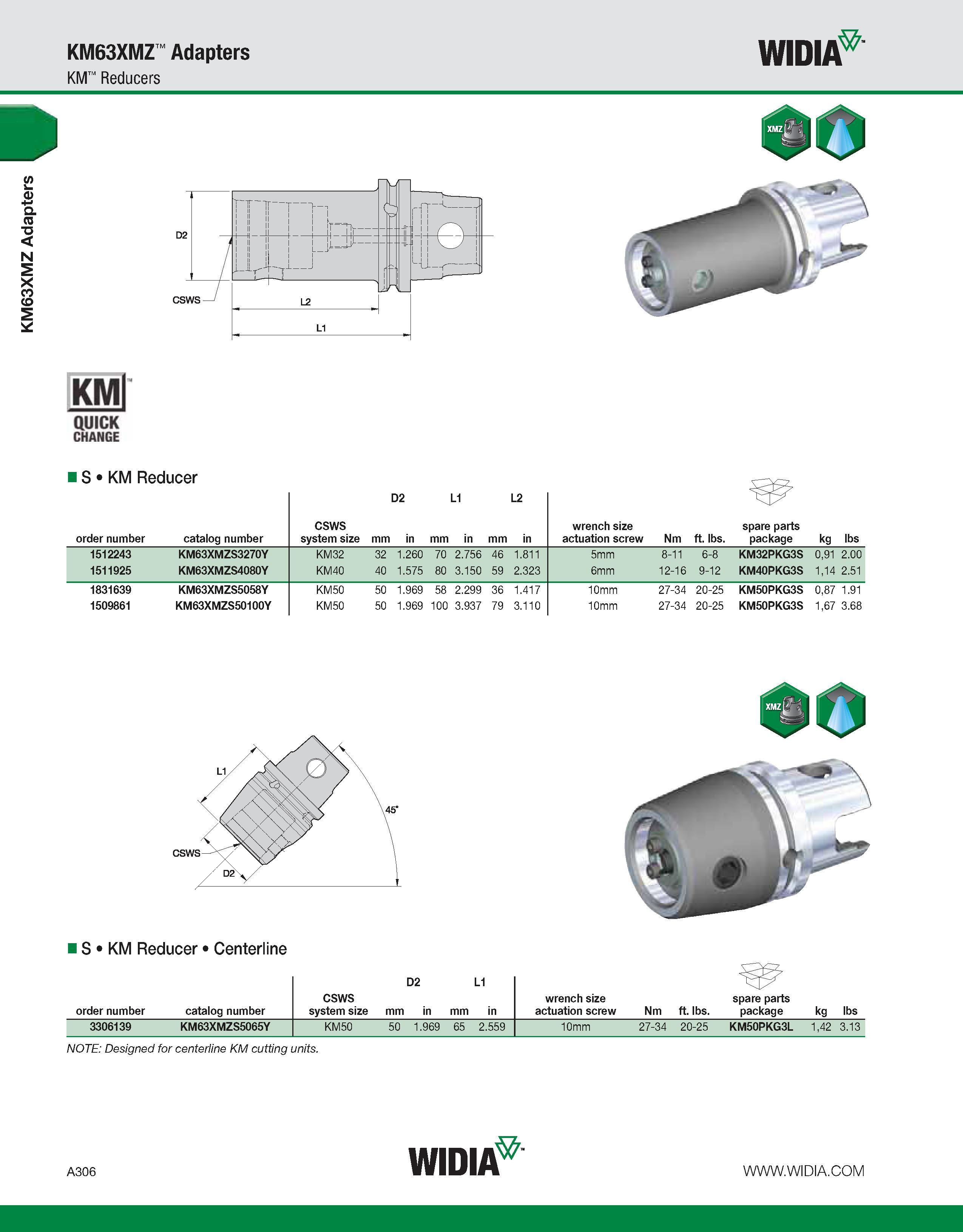

KM63XMZ Adapters KM63XMZ Adapters KM Reducers WIDIA "TV L2 KMl QUICK CHANGE IS KM Reducer order number catalog number CSWS system size mm D2 in mm L1 in mm L2 in wrench size actuation screw Nm ft. lbs. spare parts package kg lbs 1512243 KM63XMZS3270Y KM32 32 1.260 70 2.756 46 1.811 5mm 8-11 6-8 KM32PKG3S 0,91 2.00 1511925 KM63XMZS4080Y KM40 40 1.575 80 3.150 59 2.323 6mm 12-16 9-12 KM40PKG3S 1,14 2.51 1831639 KM63XMZS5058Y KM50 50 1.969 58 2.299 36 1.417 10mm 27-34 20-25 KM50PKG3S 0,87 1.91 1509861 KM63XMZS50100Y KM50 50 1.969 100 3.937 79 3.110 10mm 27-34 20-25 KM50PKG3S 1,67 3.68 IS KM Reducer Centerline order number catalog number CSWS system size D2 L1 mm in mm in wrench size actuation screw Nm ft. lbs. spare parts package kg lbs 3306139 KM63XMZS5065Y KM50 50 1.969 65 2.559 10mm 27-34 20-25 KM50PKG3L 1,42 3.13 NOTE: Designed for centerline KM cutting units. A306 WIDIA
