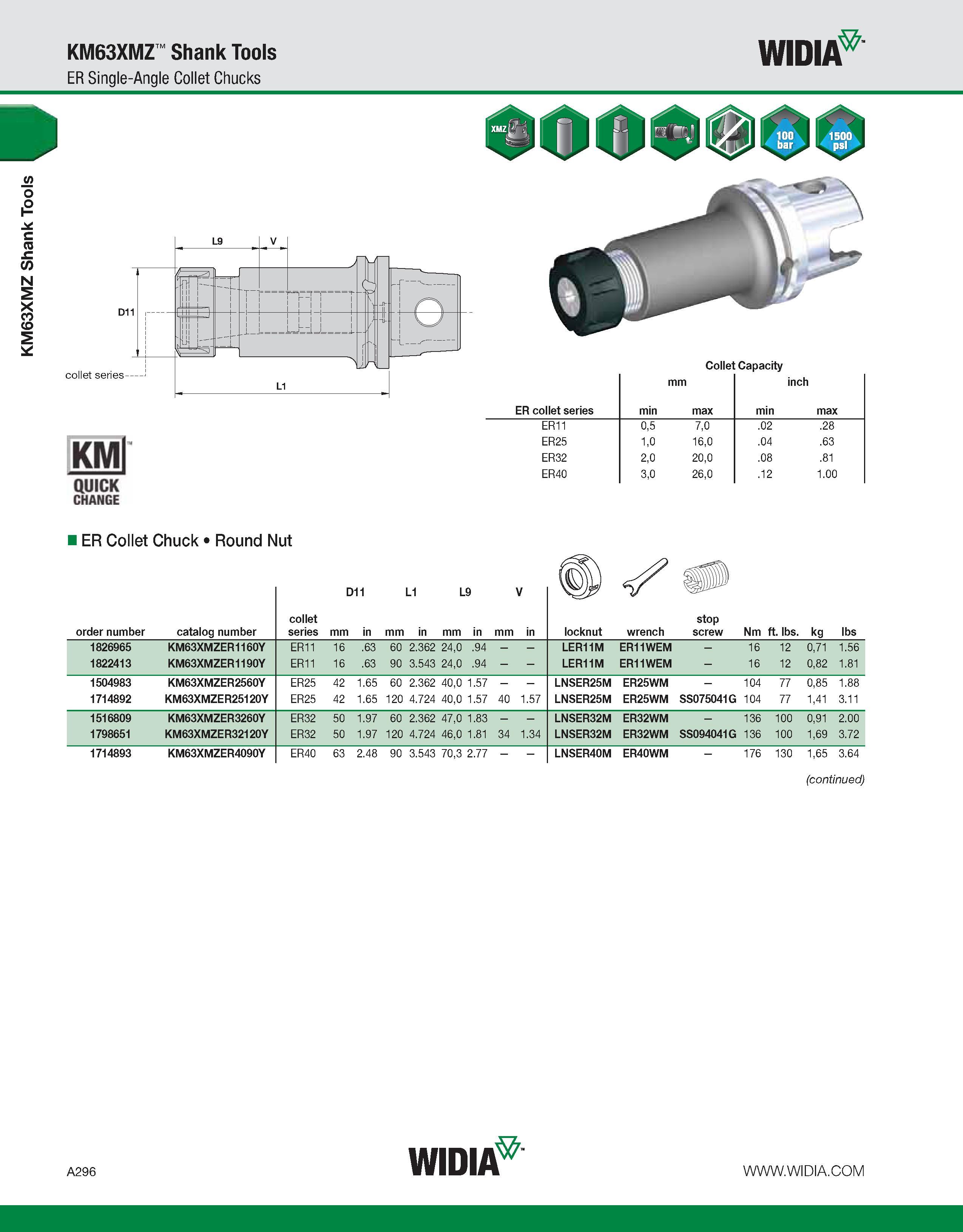

KM63XMZ Shank Tools KM63XMZ Shank Tools ER Single-Angle Collet Chucks WIDIA Collet Capacity ER collet series min mm max min inch max ER11 0,5 7,0 .02 .28 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 ER Collet Chuck Round Nut order number catalog number collet series D11 mm in mm L1 L9 in mm in mm V in locknut wrench stop screw Nm ft. lbs. kg lbs 1826965 KM63XMZER1160Y ER11 16 .63 60 2.362 24,0 .94 LER11M ER11WEM - 16 12 0,71 1.56 1822413 KM63XMZER1190Y ER11 16 .63 90 3.543 24,0 .94 LER11M ER11WEM - 16 12 0,82 1.81 1504983 KM63XMZER2560Y ER25 42 1.65 60 2.362 40,0 1.57 LNSER25M ER25WM - 104 77 0,85 1.88 1714892 KM63XMZER25120Y ER25 42 1.65 120 4.724 40,0 1.57 40 1.57 LNSER25M ER25WM SS075041G 104 77 1,41 3.11 1516809 KM63XMZER3260Y ER32 50 1.97 60 2.362 47,0 1.83 LNSER32M ER32WM - 136 100 0,91 2.00 1798651 KM63XMZER32120Y ER32 50 1.97 120 4.724 46,0 1.81 34 1.34 LNSER32M ER32WM SS094041G 136 100 1,69 3.72 1714893 KM63XMZER4090Y ER40 63 2.48 90 3.543 70,3 2.77 LNSER40M ER40WM - 176 130 1,65 3.64 (continued) A296 WIDIA
