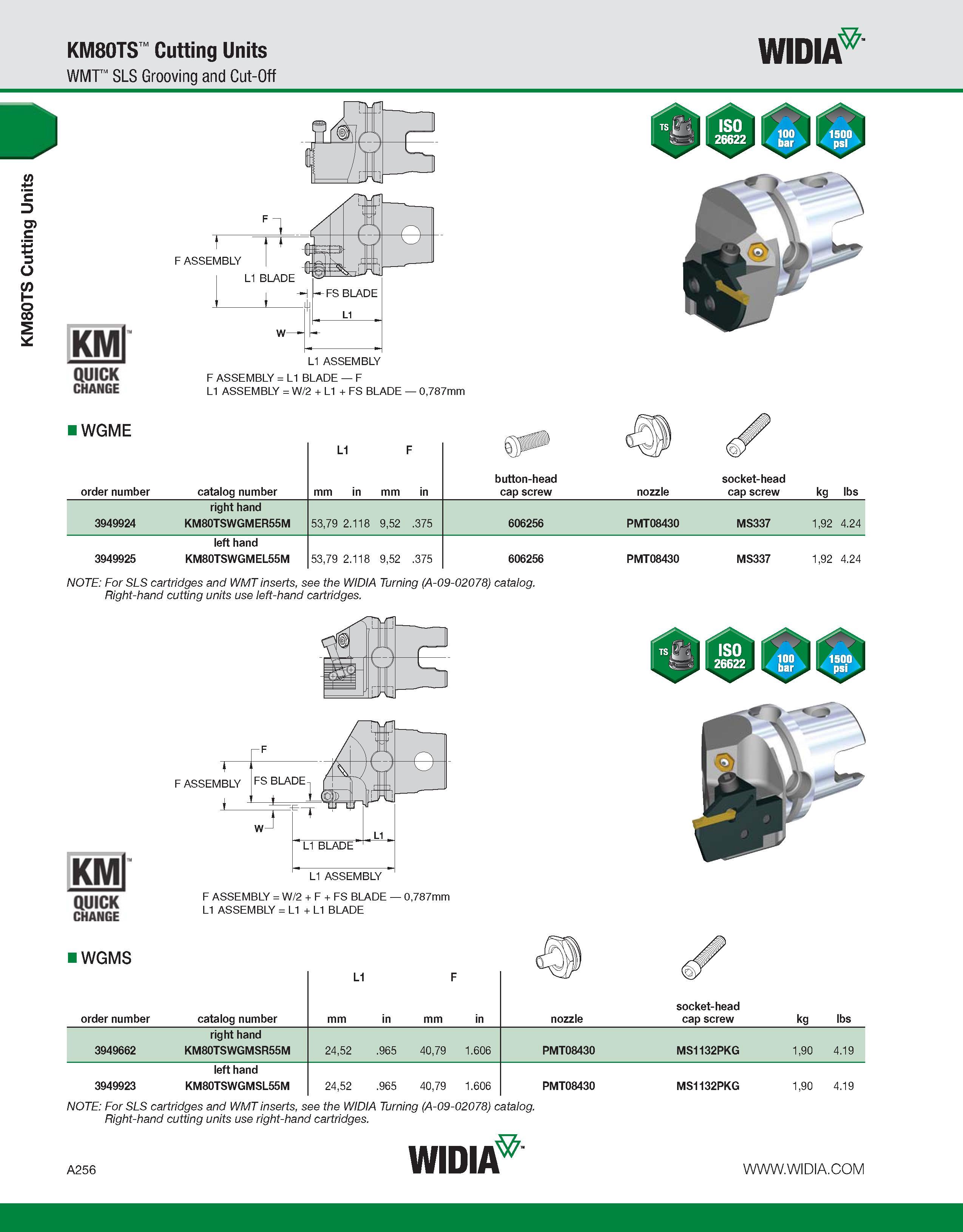

KM80TS Cutting Units KM80TS Cutting Units WMT SLS Grooving and Cut-Off WIDIA KMl QUICK CHANGE F ASSEMBLY = L1 BLADE F L1 ASSEMBLY = W/2 + L1 + FS BLADE 0,787mm WGME L1 F order number catalog number mm in mm in button-head cap screw nozzle socket-head cap screw kg lbs right hand 3949924 KM80TSWGMER55M 53,79 2.118 9,52 .375 606256 PMT08430 MS337 1,92 4.24 3949925 left hand KM80TSWGMEL55M 53,79 2.118 9,52 .375 606256 PMT08430 MS337 1,92 4.24 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078') catalog. Right-hand cutting units use left-hand cartridges. KMl QUICK CHANGE F ASSEMBLY = W/2 + F + FS BLADE 0,787mm L1 ASSEMBLY = L1 + L1 BLADE WGMS L1 F Qjy order number catalog number mm in mm in nozzle socket-head cap screw kg lbs right hand 3949662 KM80TSWGMSR55M 24,52 .965 40,79 1.606 PMT08430 MS1132PKG 1,90 4.19 3949923 left hand KM80TSWGMSL55M 24,52 .965 40,79 1.606 PMT08430 MS1132PKG 1,90 4.19 NOTE: For SLS cartridges and WMT inserts, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. A256 WIDIA
