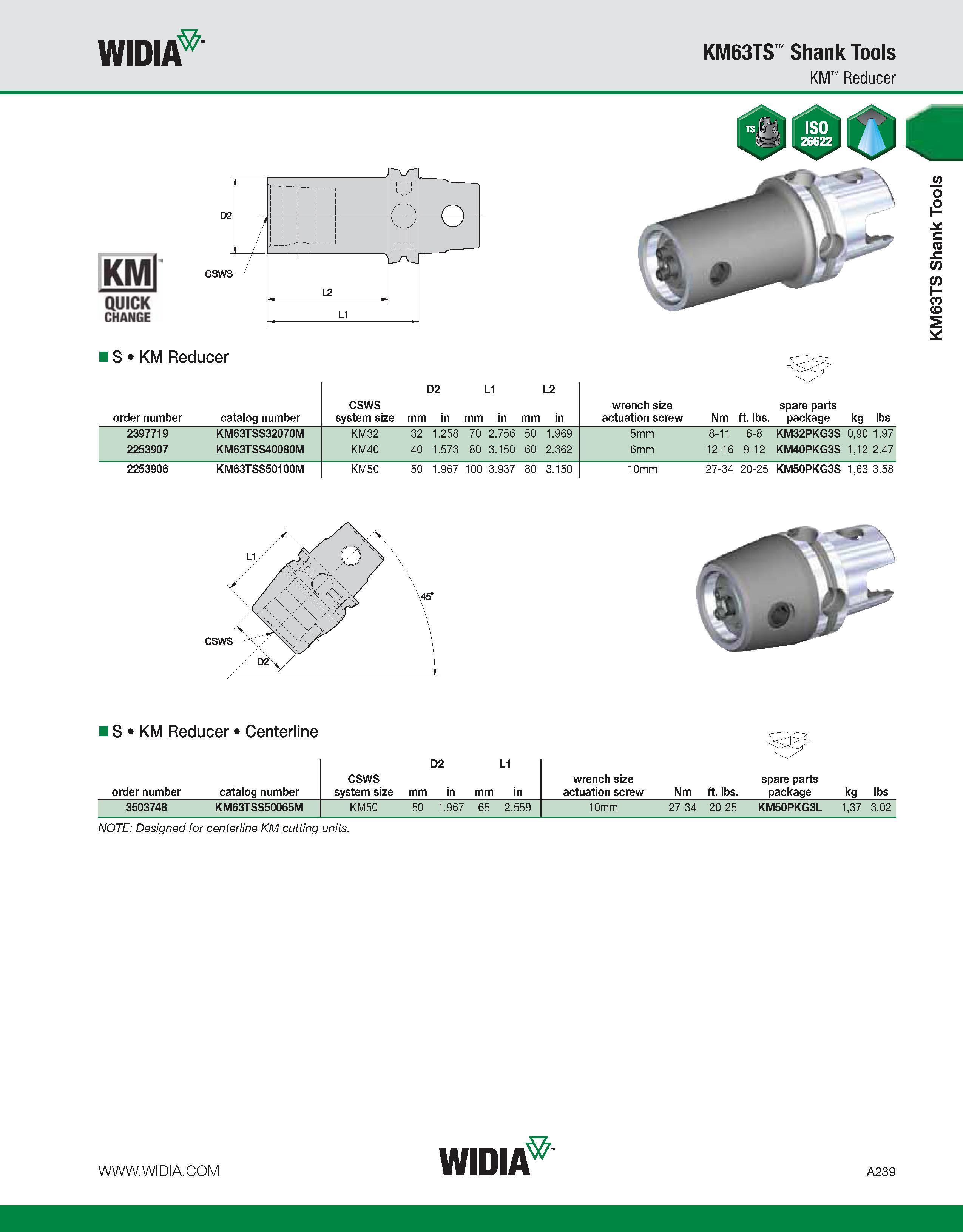

WIDIA KM63TS Shank Tools KM Reducer KMl QUICK CHANGE IS KM Reducer D2 L1 L2 order number catalog number CSWS system size mm in mm in mm in wrench size actuation screw Nm ft. lbs. spare parts package kg lbs 2397719 KM63TSS32070M KM32 32 1.258 70 2.756 50 1.969 5mm 8-11 6-8 KM32PKG3S 0,90 1.97 2253907 KM63TSS40080M KM40 40 1.573 80 3.150 60 2.362 6mm 12-16 9-12 KM40PKG3S 1,12 2.47 2253906 KM63TSS50100M KM50 50 1.967 100 3.937 80 3.150 10mm 27-34 20-25 KM50PKG3S 1,63 3.58 IS KM Reducer Centerline order number catalog number D2 L1 CSWS system size mm in mm in wrench size actuation screw Nm ft. lbs. spare parts package kg lbs 3503748 KM63TSS50065M KM50 50 1.967 65 2.559 10mm 27-34 20-25 KM50PKG3L 1,37 3.02 NOTE: Designed for centerline KM cutting units. KM63TS Shank Tools
