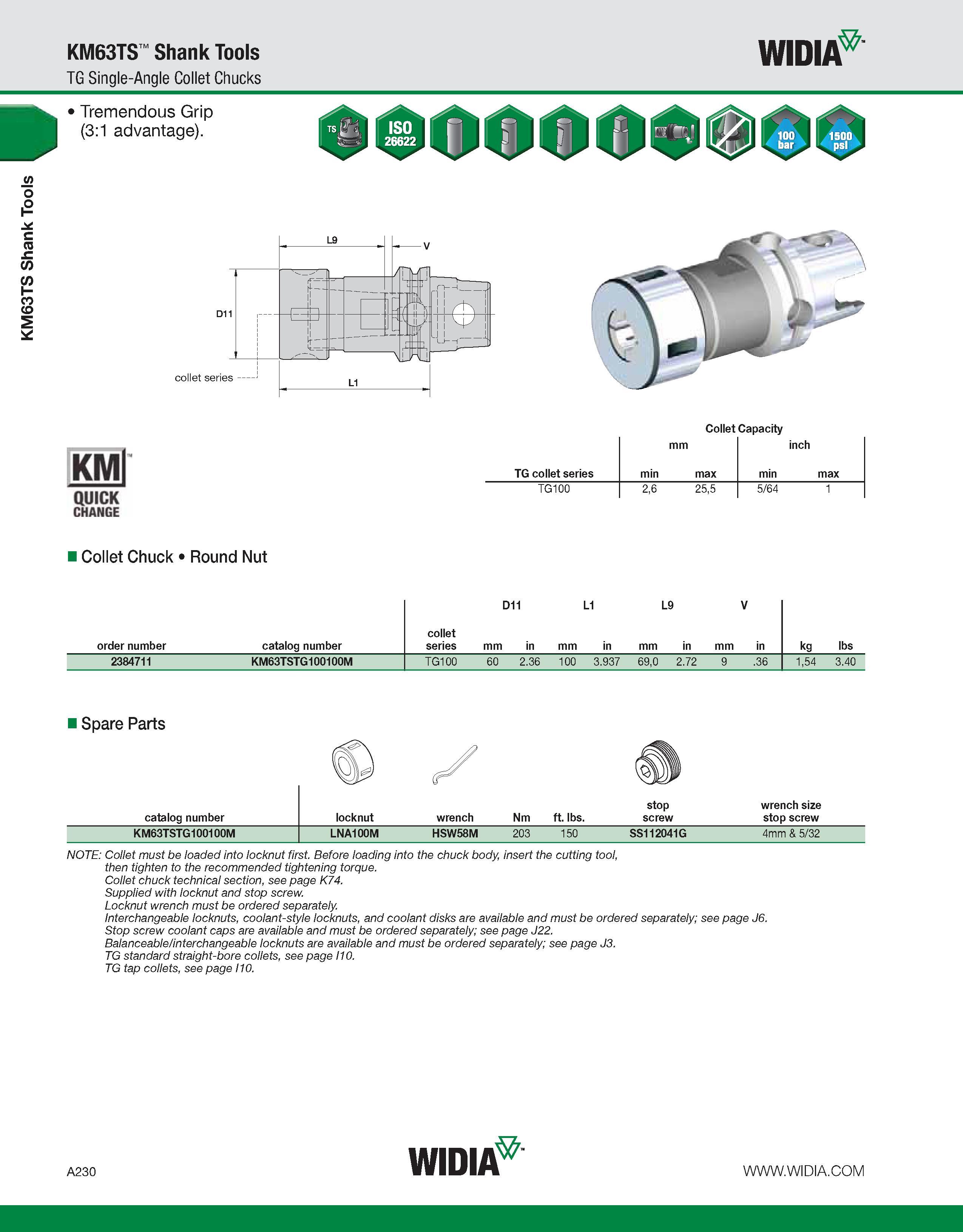

KM63TS Shank Tools KM63TS Shank Tools TG Single-Angle Collet Chucks WIDIA Tremendous Grip (3:1 advantage). Collet Capacity KMl QUICK CHANGE mm inch TG collet series min max min max TG100 2,6 25,5 5/64 1 Collet Chuck Round Nut order number catalog number collet series D11 L1 L9 V mm in mm in mm in mm in kg lbs 2384711 KM63TSTG100100M TG100 60 2.36 100 3.937 69,0 2.72 9 .36 1,54 3.40 i Spare Parts catalog number locknut wrench Nm ft. lbs. stop screw wrench size stop screw KM63TSTG100100M LNA100M HSW58M 203 150 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. A230 WIDIA
