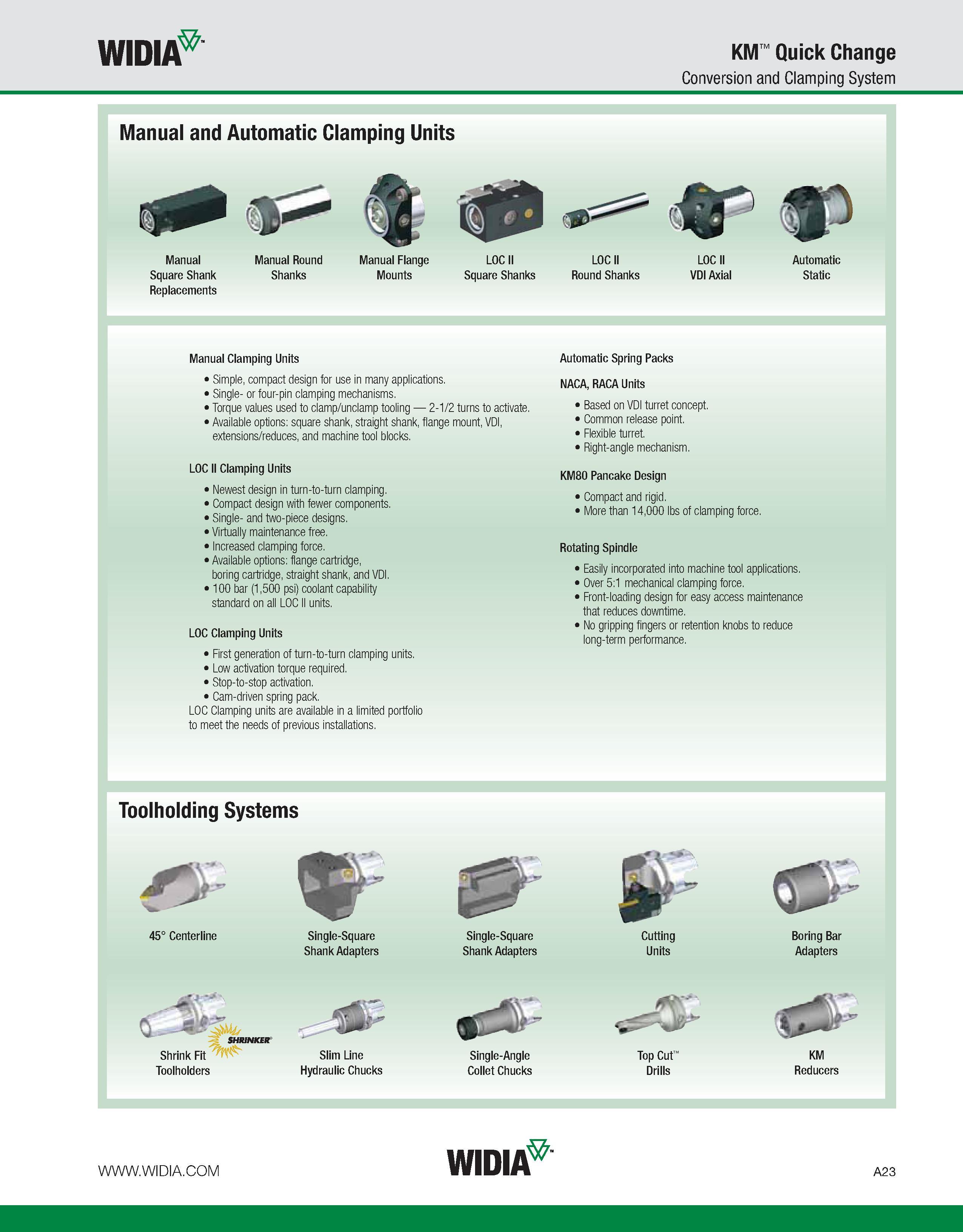

WIDIA KM Quick Change Conversion and Clamping System Manual and Automatic Clamping Units Manual Manual Round Manual Flange LOC II LOC II LOC II Automatic Square Shank Shanks Mounts Square Shanks Round Shanks VDI Axial Static Replacements Manual Clamping Units Simple, compact design for use in many applications. Single- or four-pin clamping mechanisms. Torque values used to clamp/unclamp tooling 2-1/2 turns to activate. Available options: square shank, straight shank, flange mount, VDI, extensions/reduces, and machine tool blocks. LOC II Clamping Units Newest design in turn-to-turn clamping. Compact design with fewer components. Single- and two-piece designs. Virtually maintenance free. Increased clamping force. Available options: flange cartridge, boring cartridge, straight shank, and VDI. 100 bar (1,500 psi) coolant capability standard on all LOC II units. LOC Clamping Units First generation of turn-to-turn clamping units. Low activation torque required. Stop-to-stop activation. Cam-driven spring pack. LOC Clamping units are available in a limited portfolio to meet the needs of previous installations. Automatic Spring Packs NACA, RACA Units Based on VDI turret concept. Common release point. Flexible turret. Right-angle mechanism. KM80 Pancake Design Compact and rigid. More than 14,000 lbs of clamping force. Rotating Spindle Easily incorporated into machine tool applications. Over 5:1 mechanical clamping force. Front-loading design for easy access maintenance that reduces downtime. No gripping fingers or retention knobs to reduce long-term performance. Toolholding Systems 45° Centerline Single-Square Shank Adapters Single-Square Shank Adapters Cutting Units Boring Bar Adapters WIDIA A23
