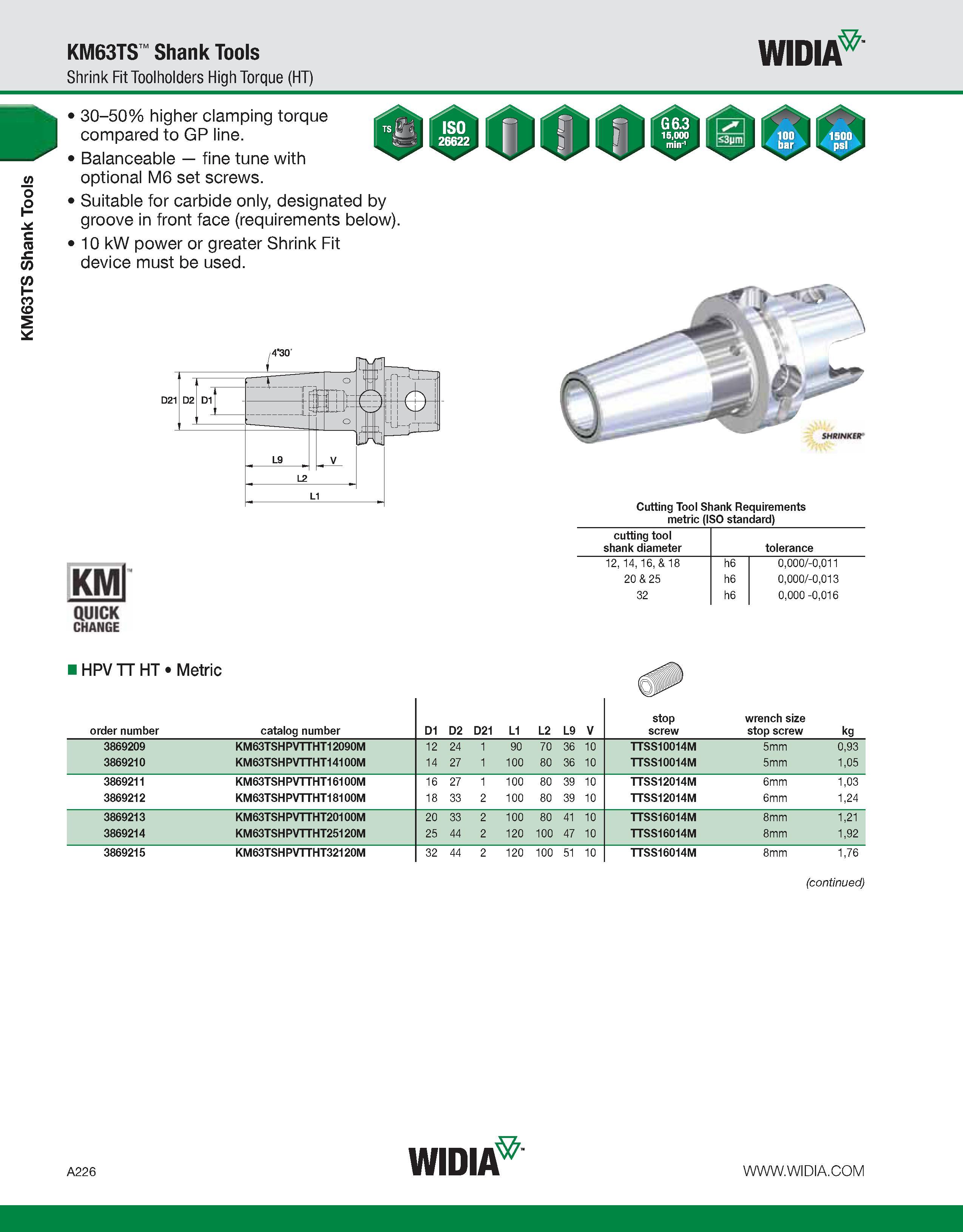

KM63TS Shank Tools KM63TS Shank Tools Shrink Fit Toolholders High Torque (HT) WIDIA 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face (requirements below) 10 kW power or greater Shrink Fit device must be used. ,4"30' D21 Cutting Tool Shank Requirements metric (ISO standard) KMl QUICK CHANGE cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000 -0,016 HPV TT HT Metric (gP1 order number catalog number D1 D2 D21 L1 L2 L9 V stop screw wrench size stop screw kg 3869209 KM63TSHPVTTHT12090M 12 24 1 90 70 36 10 TTSS10014M 5mm 0,93 3869210 KM63TSHPVTTHT14100M 14 27 1 100 80 36 10 TTSS10014M 5mm 1,05 3869211 KM63TSHPVTTHT16100M 16 27 1 100 80 39 10 TTSS12014M 6mm 1,03 3869212 KM63TSHPVTTHT18100M 18 33 2 100 80 39 10 TTSS12014M 6mm 1,24 3869213 KM63TSHPVTTHT20100M 20 33 2 100 80 41 10 TTSS16014M 8mm 1,21 3869214 KM63TSHPVTTHT25120M 25 44 2 120 100 47 10 TTSS16014M 8mm 1,92 3869215 KM63TSHPVTTHT32120M 32 44 2 120 100 51 10 TTSS16014M 8mm 1,76 (continued) A226 WIDIA
