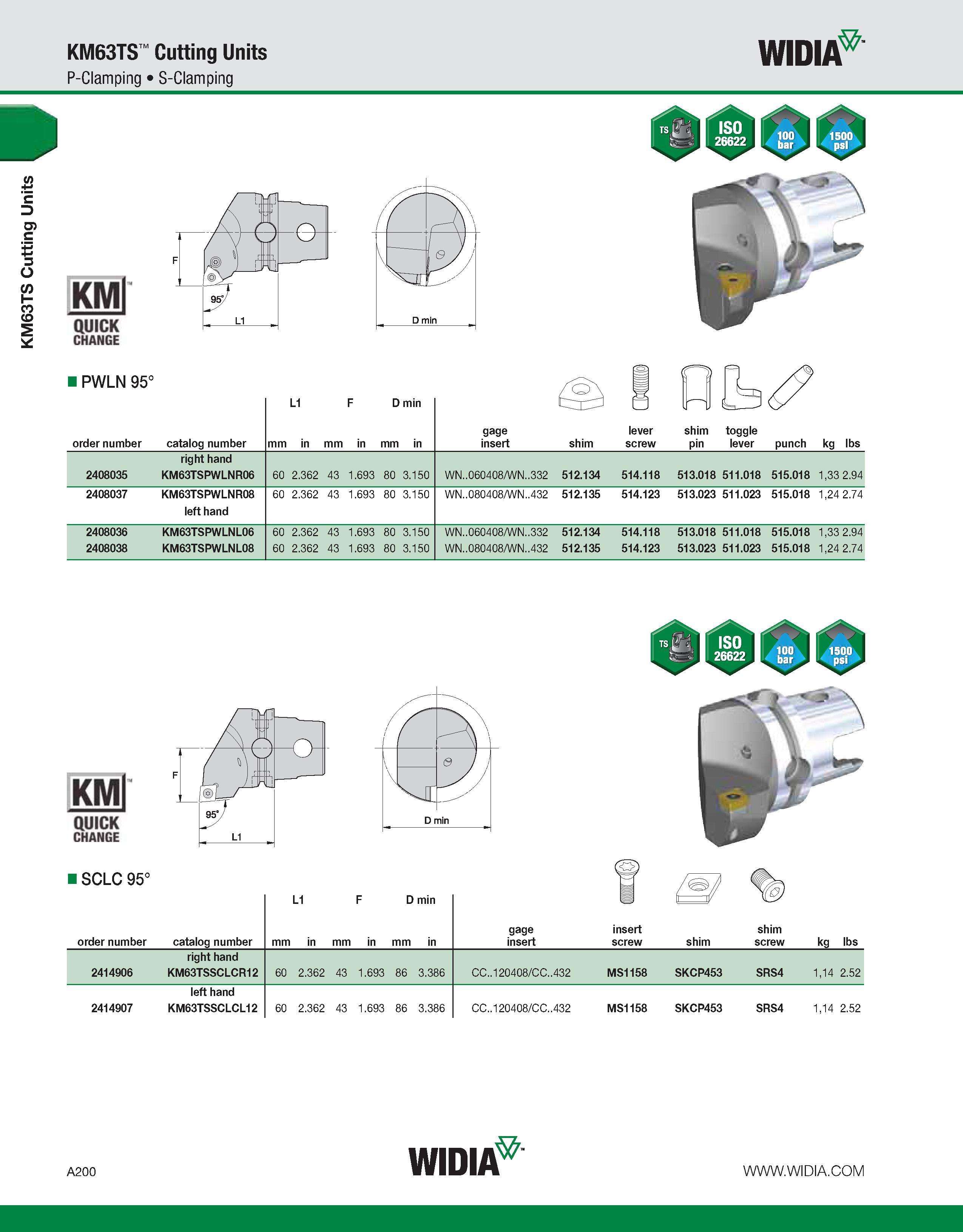

KM63TS Cutting Units KM63TS Cutting Units P-Clamping S-Clamping WIDIA KMl QUICK CHANGE PWLN 95° order number catalog number L1 D min mm in mm in mm in gage insert shim lever screw Lb shim toggle pin lever punch kg lbs 2408035 right hand KM63TSPWLNR06 60 2.362 43 1.693 80 3.150 WN..060408/WN..332 512.134 514.118 513.018 511.018 515.018 1,33 2.94 2408037 KM63TSPWLNR08 left hand 60 2.362 43 1.693 80 3.150 WN..080408/WN..432 512.135 514.123 513.023 511.023 515.018 1,24 2.74 2408036 2408038 KM63TSPWLNL06 KM63TSPWLNL08 60 2.362 43 1.693 80 3.150 60 2.362 43 1.693 80 3.150 WN..060408/WN..332 WN..080408/WN..432 512.134 512.135 514.118 514.123 513.018 511.018 513.023 511.023 515.018 1,33 2.94 515.018 1,24 2.74 F ISCLC 95° (O) L1 F D min fl li order number catalog number mm in mm in mm in gage insert insert screw shim shim screw kg lbs right hand 2414906 KM63TSSCLCR12 60 2.362 43 1.693 86 3.386 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,14 2.52 2414907 left hand KM63TSSCLCL12 60 2.362 43 1.693 86 3.386 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,14 2.52 A200 WIDIA
