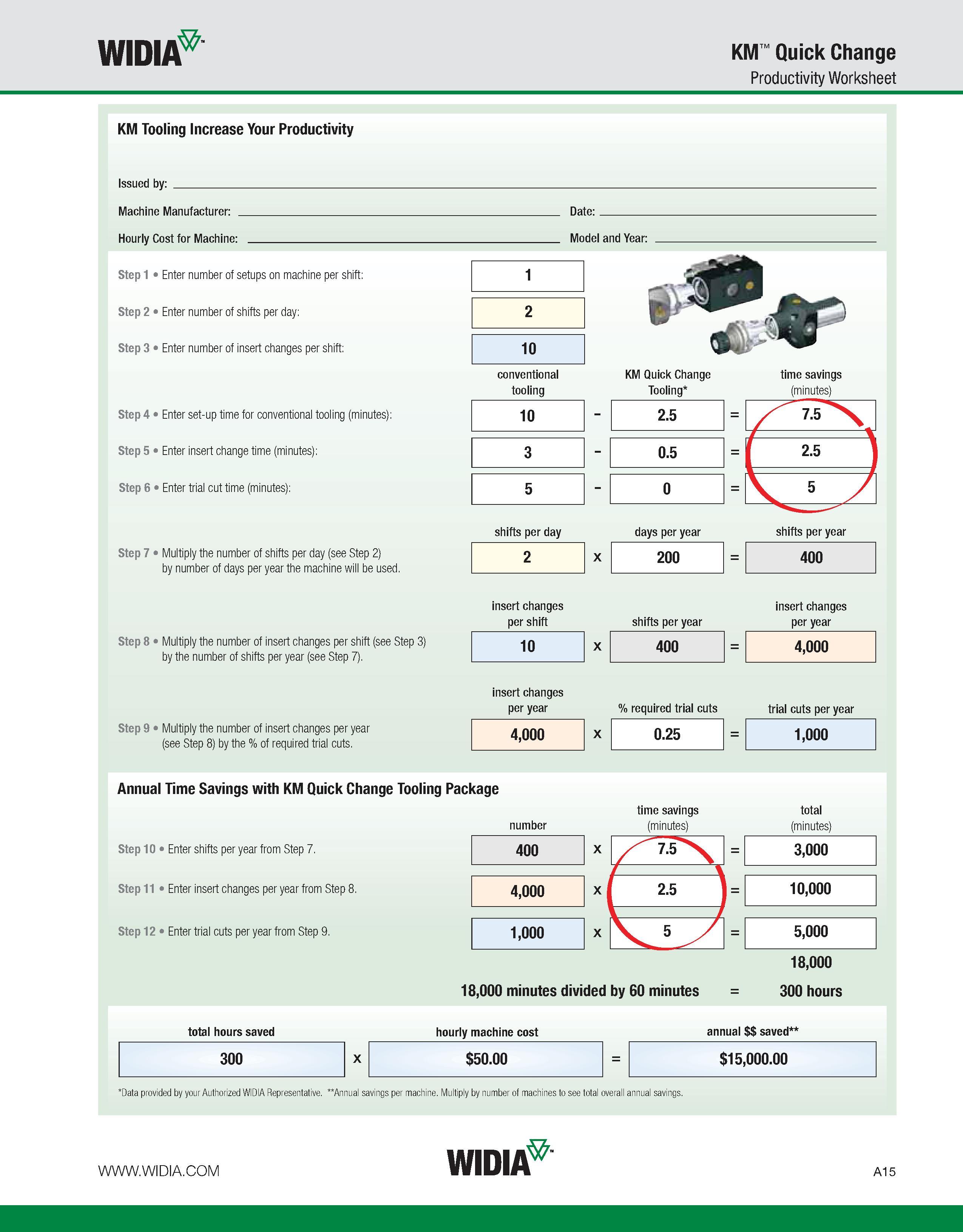

WIDIA KM Quick Change Productivity Worksheet KM Tooling Increase Your Productivity Issued by: Machine Manufacturer: _ Hourly Cost for Machine: Step 1 Enter number of setups on machine per shift: Step 2 Enter number of shifts per day: Step 3 Enter number of insert changes per shift: Step 4 Enter set-up time for conventional tooling (minutes): Step 5 Enter insert change time (minutes): Step 6 Enter trial cut time (minutes): Step 7 Multiply the number of shifts per day (see Step 2) by number of days per year the machine will be used. Step 8 Multiply the number of insert changes per shift (see Step 3) by the number of shifts per year (see Step 7). Step 9 Multiply the number of insert changes per year (see Step 8) by the % of required trial cuts. Date: Model and Year: 10 conventional tooling 10 shifts per day insert changes per shift insert changes per year KM Quick Change Tooling time savings (minutes) 2.5 0.5 days per year 2 x 200 = 400 shifts per year insert changes per year 10 x 400 = 4,000 % required trial cuts trial cuts per year 4,000 x 0.25 = 1,000 Annual Time Savings with KM Quick Change Tooling Package Step 10 Enter shifts per year from Step 7. Step 11 Enter insert changes per year from Step 8. Step 12 Enter trial cuts per year from Step 9. number 400 4,000 1,000 time savings (minutes) 18,000 minutes divided by 60 minutes total (minutes) 3,000 10,000 5,000 18,000 300 hours total hours saved hourly machine cost annual saved 300 x 50.00 = 15,000.00 Data provided by your Authorized WIDIA Representative. Annual savings per machine. Multiply by number of machines to see total overall annual savings. WIDIA A15 1 2 3 0 5
