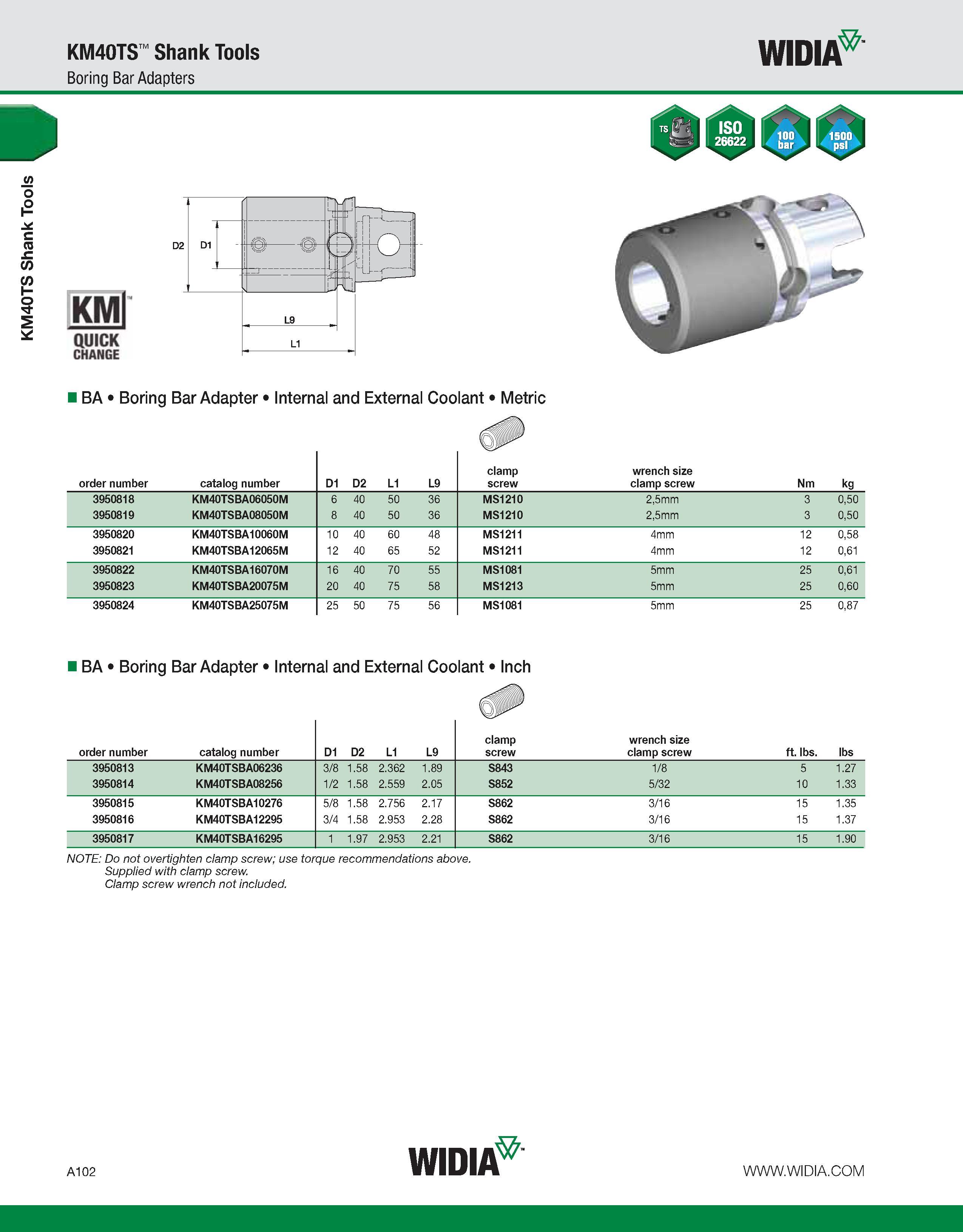

KM40TS Shank Tools KM40TS Shank Tools Boring Bar Adapters WIDIA KMl QUICK CHANGE BA Boring Bar Adapter Internal and External Coolant Metric order number catalog number D1 D2 L1 L9 clamp screw wrench size clamp screw Nm kg 3950818 KM40TSBA06050M 6 40 50 36 MS1210 2,5mm 3 0,50 3950819 KM40TSBA08050M 8 40 50 36 MS1210 2,5mm 3 0,50 3950820 KM40TSBA10060M 10 40 60 48 MS1211 4mm 12 0,58 3950821 KM40TSBA12065M 12 40 65 52 MS1211 4mm 12 0,61 3950822 KM40TSBA16070M 16 40 70 55 MS1081 5mm 25 0,61 3950823 KM40TSBA20075M 20 40 75 58 MS1213 5mm 25 0,60 3950824 KM40TSBA25075M 25 50 75 56 MS1081 5mm 25 0,87 BA Boring Bar Adapter Internal and External Coolant Inch order number catalog number D1 D2 L1 L9 clamp screw wrench size clamp screw ft. lbs. lbs 3950813 KM40TSBA06236 3/8 1.58 2.362 1.89 S843 1/8 5 1.27 3950814 KM40TSBA08256 1/2 1.58 2.559 2.05 S852 5/32 10 1.33 3950815 KM40TSBA10276 5/8 1.58 2.756 2.17 S862 3/16 15 1.35 3950816 KM40TSBA12295 3/4 1.58 2.953 2.28 S862 3/16 15 1.37 3950817 KM40TSBA16295 1 1.97 2.953 2.21 S862 3/16 15 1.90 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. A102 WIDIA
