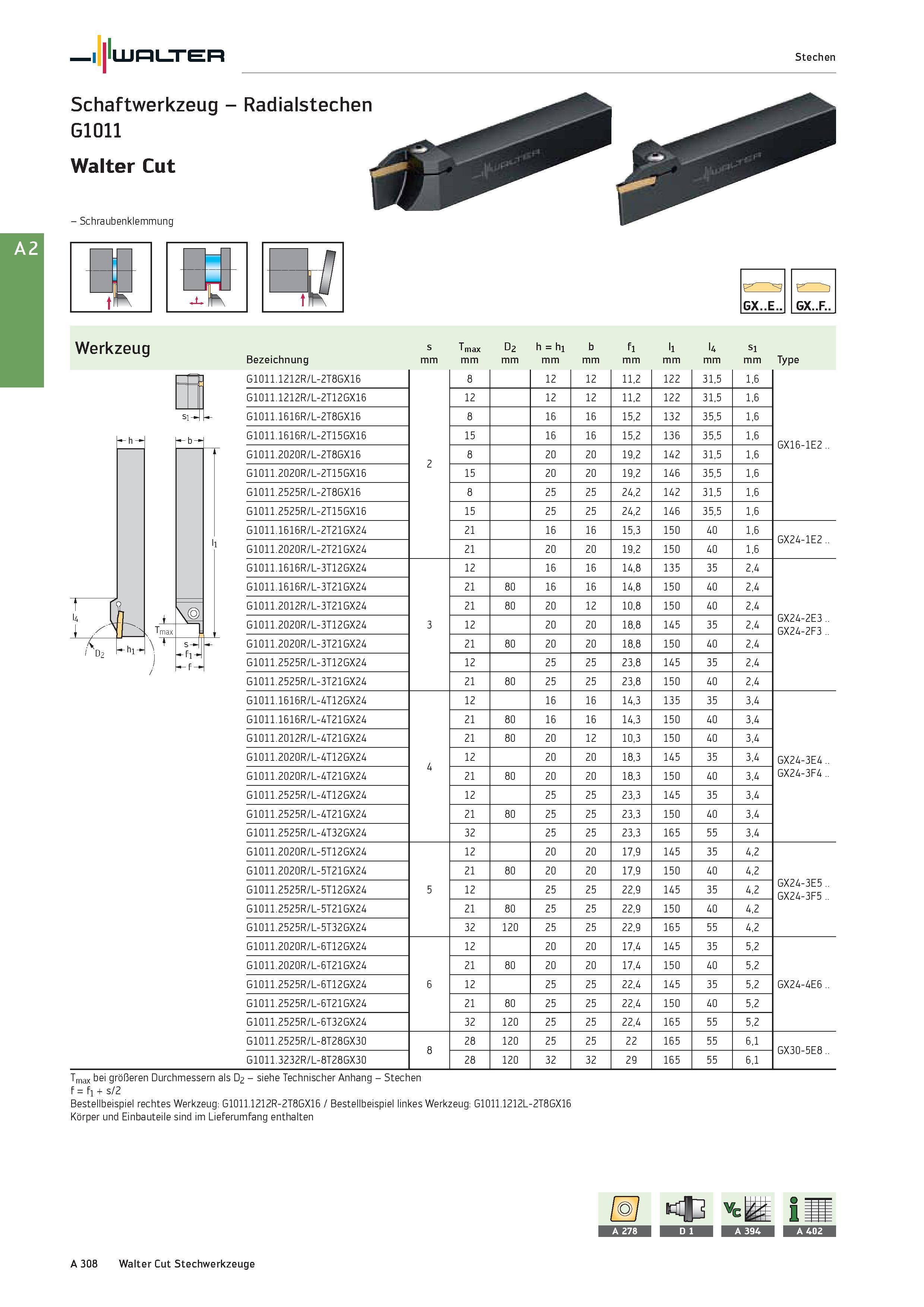

Walter Stechen Schaftwerkzeug - Radialstechen G1011 Walter Cut - Schraubenklemmung Werkzeug GX..E.. GX..F.. s Tmax D2 h = h1 b f1 l1 l4 s1 Bezeichnung mm Type G1011.1212R/L-2T8GX16 8 12 12 11.2 122 31.5 1.6 G1011.1212R/L-2T12GX16 12 12 12 11.2 122 31.5 1.6 G1011.1616R/L-2T8GX16 8 16 16 15.2 132 35.5 1.6 G1011.1616R/L-2T15GX16 15 16 16 15.2 136 35.5 1.6 GX16-1E2 .. G1011.2020R/L-2T8GX16 2 8 20 20 19.2 142 31.5 1.6 G1011.2020R/L-2T15GX16 15 20 20 19.2 146 35.5 1.6 G1011.2525R/L-2T8GX16 8 25 25 24.2 142 31.5 1.6 G1011.2525R/L-2T15GX16 15 25 25 24.2 146 35.5 1.6 G1011.1616R/L-2T21GX24 21 16 16 15.3 150 40 1.6 GX24-1E2 .. G1011.2020R/L-2T21GX24 21 20 20 19.2 150 40 1.6 G1011.1616R/L-3T12GX24 12 16 16 14.8 135 35 2.4 G1011.1616R/L-3T21GX24 21 80 16 16 14.8 150 40 2.4 G1011.2012R/L-3T21GX24 21 80 20 12 10.8 150 40 2.4 GX24-2E3 .. GX24-2F3 .. G1011.2020R/L-3T12GX24 3 12 20 20 18.8 145 35 2.4 G1011.2020R/L-3T21GX24 21 80 20 20 18.8 150 40 2.4 G1011.2525R/L-3T12GX24 12 25 25 23.8 145 35 2.4 G1011.2525R/L-3T21GX24 21 80 25 25 23.8 150 40 2.4 G1011.1616R/L-4T12GX24 12 16 16 14.3 135 35 3.4 G1011.1616R/L-4T21GX24 21 80 16 16 14.3 150 40 3.4 G1011.2012R/L-4T21GX24 21 80 20 12 10.3 150 40 3.4 G1011.2020R/L-4T12GX24 4 12 20 20 18.3 145 35 3.4 GX24-3E4 .. G1011.2020R/L-4T21GX24 21 80 20 20 18.3 150 40 3.4 GX24-3F4 .. G1011.2525R/L-4T12GX24 12 25 25 23.3 145 35 3.4 G1011.2525R/L-4T21GX24 21 80 25 25 23.3 150 40 3.4 G1011.2525R/L-4T32GX24 32 25 25 23.3 165 55 3.4 G1011.2020R/L-5T12GX24 12 20 20 17.9 145 35 4.2 G1011.2020R/L-5T21GX24 21 80 20 20 17.9 150 40 4.2 GX24-3E5 .. GX24-3F5 .. G1011.2525R/L-5T12GX24 5 12 25 25 22.9 145 35 4.2 G1011.2525R/L-5T21GX24 21 80 25 25 22.9 150 40 4.2 G1011.2525R/L-5T32GX24 32 120 25 25 22.9 165 55 4.2 G1011.2020R/L-6T12GX24 12 20 20 17.4 145 35 5.2 G1011.2020R/L-6T21GX24 21 80 20 20 17.4 150 40 5.2 G1011.2525R/L-6T12GX24 6 12 25 25 22.4 145 35 5.2 GX24-4E6 .. G1011.2525R/L-6T21GX24 21 80 25 25 22.4 150 40 5.2 G1011.2525R/L-6T32GX24 32 120 25 25 22.4 165 55 5.2 G1011.2525R/L-8T28GX30 8 28 120 25 25 22 165 55 6.1 GX30-5E8 .. G1011.3232R/L-8T28GX30 28 120 32 32 29 165 55 6.1 Tmax bei größeren Durchmessern als D2 - siehe Technischer Anhang - Stechen f = f1 + s/2 Bestellbeispiel rechtes Werkzeug: G1011.1212R-2T8GX16 / Bestellbeispiel linkes Werkzeug: G1011.1212L-2T8GX16 Körper und Einbauteile sind im Lieferumfang enthalten A 308 Walter Cut Stechwerkzeuge
