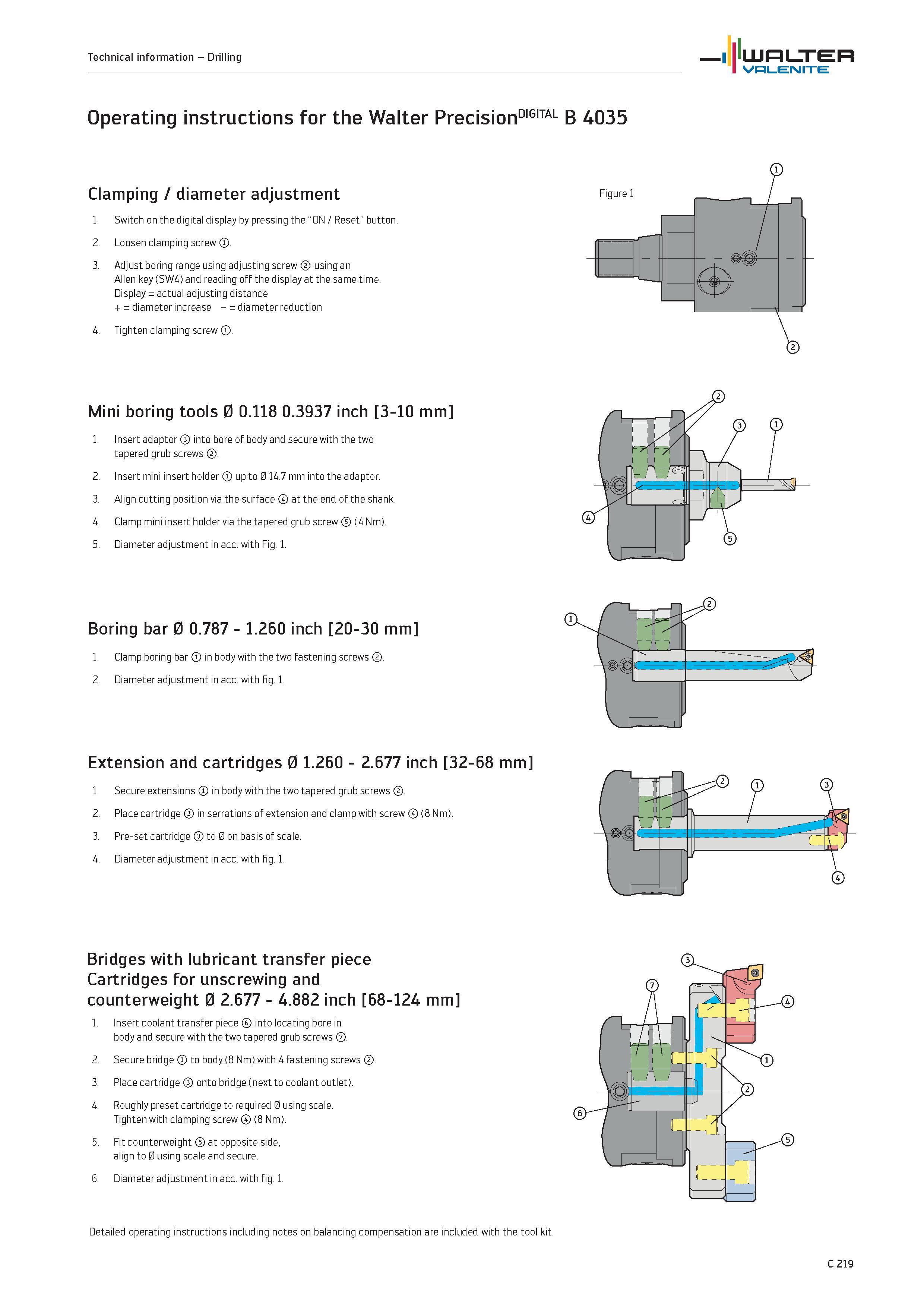

Operating instructions for the Walter PrecisionDIGITAL B 4035 Clamping / diameter adjustment 1. Switch on the digital display by pressing the “ON / Reset button. 2. Loosen clamping screw 3. Adjust boring range using adjusting screw using an Allen key (SW4) and reading off the display at the same time. Display actual adjusting distance + diameter increase diameter reduction 4. Tighten clamping screw Mini boring tools 0 0.118 0.3937 inch 3-10 mm 1. Insert adaptor into bore of body and secure with the two tapered grub screws 2. Insert mini insert holder up to 0 14.7 mm into the adaptor. 3. Align cutting position via the surface at the end of the shank. 4. Clamp mini insert holder via the tapered grub screw (4 Nm). 5. Diameter adjustment in acc. with Fig. 1. Boring bar 0 0.787 1.260 inch 20-30 mm 1. Clamp boring bar in body with the two fastening screws 2. Diameter adjustment in acc. with fig. 1. Extension and cartridges 0 1.260 2.677 inch 32-68 mm 1. Secure extensions in body with the two tapered grub screws 2. Place cartridge in serrations of extension and clamp with screw (8 Nm). 3. Pre-set cartridge to 0 on basis of scale. 4. Diameter adjustment in acc. with fig. 1. Bridges with lubricant transfer piece Cartridges for unscrewing and counterweight 0 2.677 4.882 inch 68-124 mm 1. Insert coolant transfer piece into locating bore in body and secure with the two tapered grub screws 2. Secure bridge to body (8 Nm) with 4 fastening screws 3. Place cartridge onto bridge (next to coolant outlet). 4. Roughly preset cartridge to required 0 using scale. Tighten with clamping screw (8 Nm). 5. Fit counterweight at opposite side, align to 0 using scale and secure. 6. Diameter adjustment in acc. with fig. 1. Detailed operating instructions including notes on balancing compensation are included with the tool kit. C 219 Technical information Drilling WALTER Valenite
