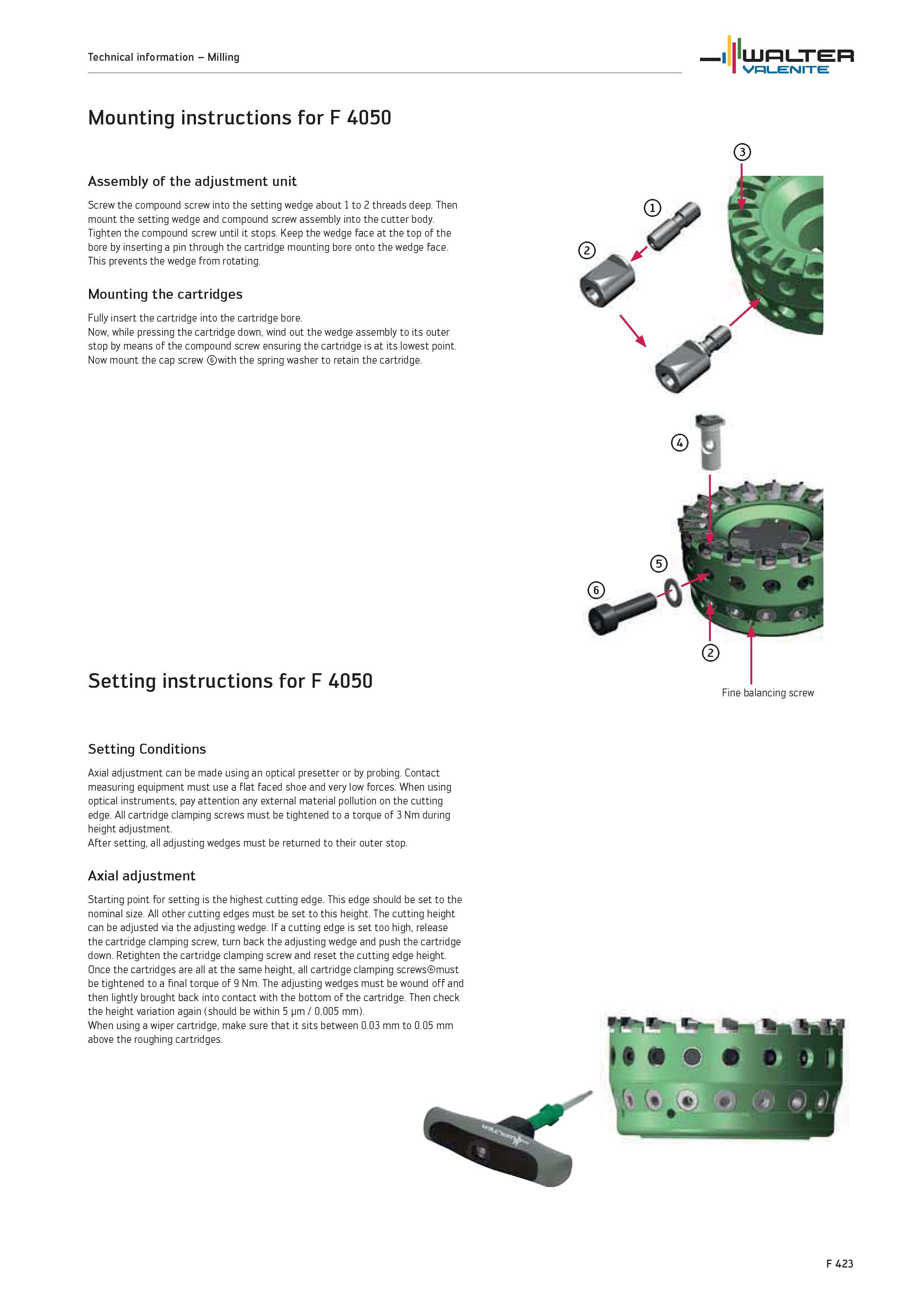

Mounting instructions for Walter F 4050 Assembly of the adjustment unit Screw the compound screw into the setting wedge about 1 to 2 threads deep. Then mount the setting wedge and compound screw assembly into the cutter body. Tighten the compound screw until it stops. Keep the wedge face at the top of the bore by inserting a pin through the cartridge mounting bore onto the wedge face. This prevents the wedge from rotating. Mounting the cartridges Fully insert the cartridge into the cartridge bore. Now, while pressing the cartridge down, wind out the wedge assembly to its outer stop by means of the compound screw ensuring the cartridge is at its lowest point. Now mount the cap screw with the spring washer to retain the cartridge. Setting instructions for F 4050 Fine balancing screw Setting Conditions Axial adjustment can be made using an optical presetter or by probing. Contact measuring equipment must use a flat faced shoe and very low forces. When using optical instruments, pay attention any external material pollution on the cutting edge. All cartridge clamping screws must be tightened to a torque of 3 Nm during height adjustment. After setting, all adjusting wedges must be returned to their outer stop. Axial adjustment Starting point for setting is the highest cutting edge. This edge should be set to the nominal size. All other cutting edges must be set to this height. The cutting height can be adjusted via the adjusting wedge. If a cutting edge is set too high, release the cartridge clamping screw, turn back the adjusting wedge and push the cartridge down. Retighten the cartridge clamping screw and reset the cutting edge height. Once the cartridges are all at the same height, all cartridge clamping screws must be tightened to a final torque of 9 Nm. The adjusting wedges must be wound off and then lightly brought back into contact with the bottom of the cartridge. Then check F 423 Technical information Milling WALTER Valenite
