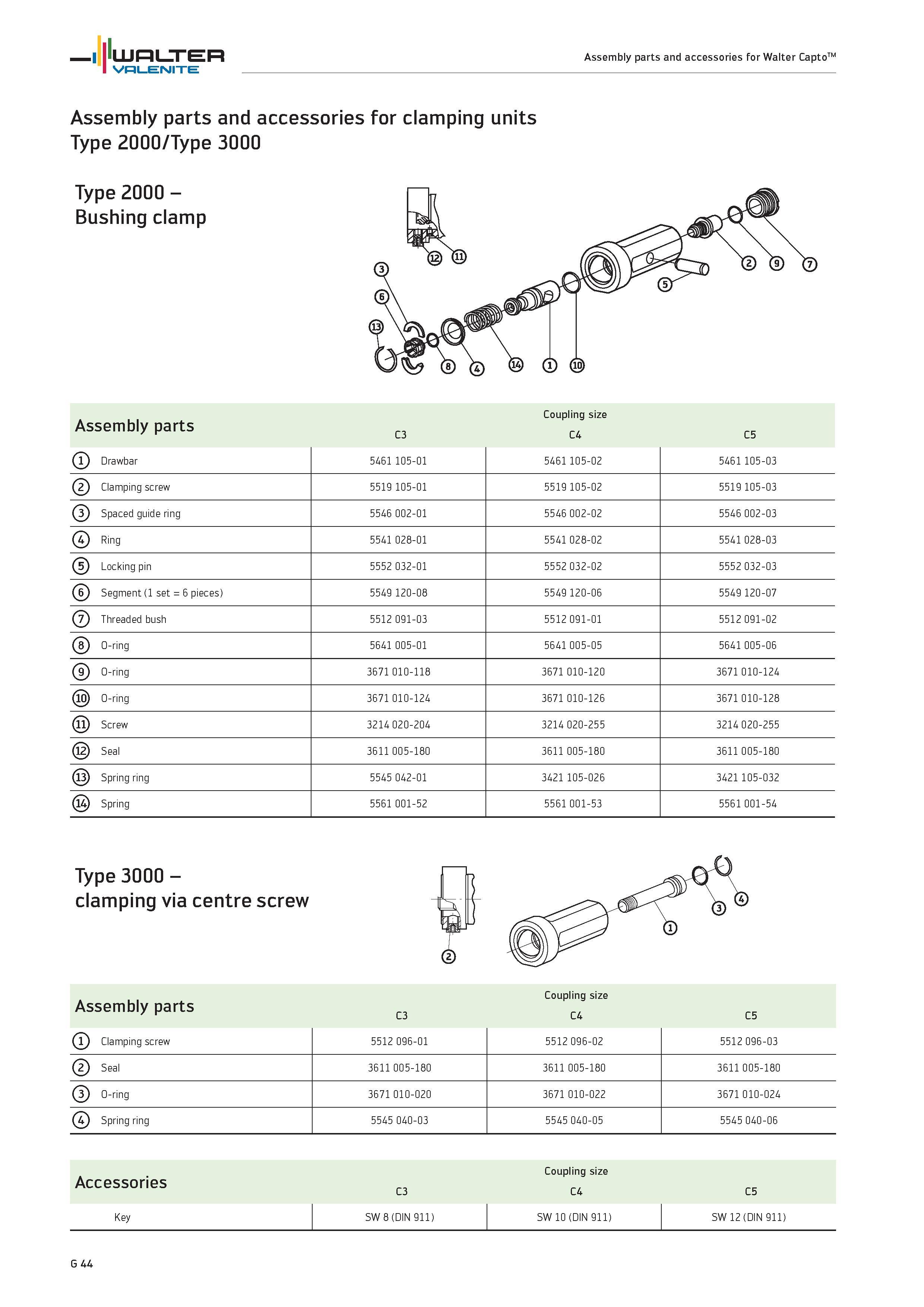

WALTER Assembly parts and accessories for Walter Capto Valenite Assembly parts and accessories for clamping units Type 2000/Type 3000 Type 2000 -Bushing clamp Assembly parts Coupling size C3 C4 C5 (p Drawbar 5461 105-01 5461 105-02 5461 105-03 (p Clamping screw 5519 105-01 5519 105-02 5519 105-03 (p Spaced guide ring 5546 002-01 5546 002-02 5546 002-03 (p Ring 5541 028-01 5541 028-02 5541 028-03 (p Locking pin 5552 032-01 5552 032-02 5552 032-03 (p Segment (1 set 6 pieces) 5549 120-08 5549 120-06 5549 120-07 (p Threaded bush 5512 091-03 5512 091-01 5512 091-02 p O-ring 5641 005-01 5641 005-05 5641 005-06 (p O-ring 3671 010-118 3671 010-120 3671 010-124 (p O-ring 3671 010-124 3671 010-126 3671 010-128 (p Screw 3214 020-204 3214 020-255 3214 020-255 Seal 3611 005-180 3611 005-180 3611 005-180 (p Spring ring 5545 042-01 3421 105-026 3421 105-032 (p Spring 5561 001-52 5561 001-53 5561 001-54 Type 3000 -clamping via centre screw Assembly parts Coupling size C3 C4 C5 (p Clamping screw 5512 096-01 5512 096-02 5512 096-03 Seal 3611 005-180 3611 005-180 3611 005-180 p O-ring 3671 010-020 3671 010-022 3671 010-024 (p Spring ring 5545 040-03 5545 040-05 5545 040-06 Accessories Coupling size C3 C4 C5 Key SW 8 (DIN 911) SW 10 (DIN 911) SW 12 (DIN 911) G 44
