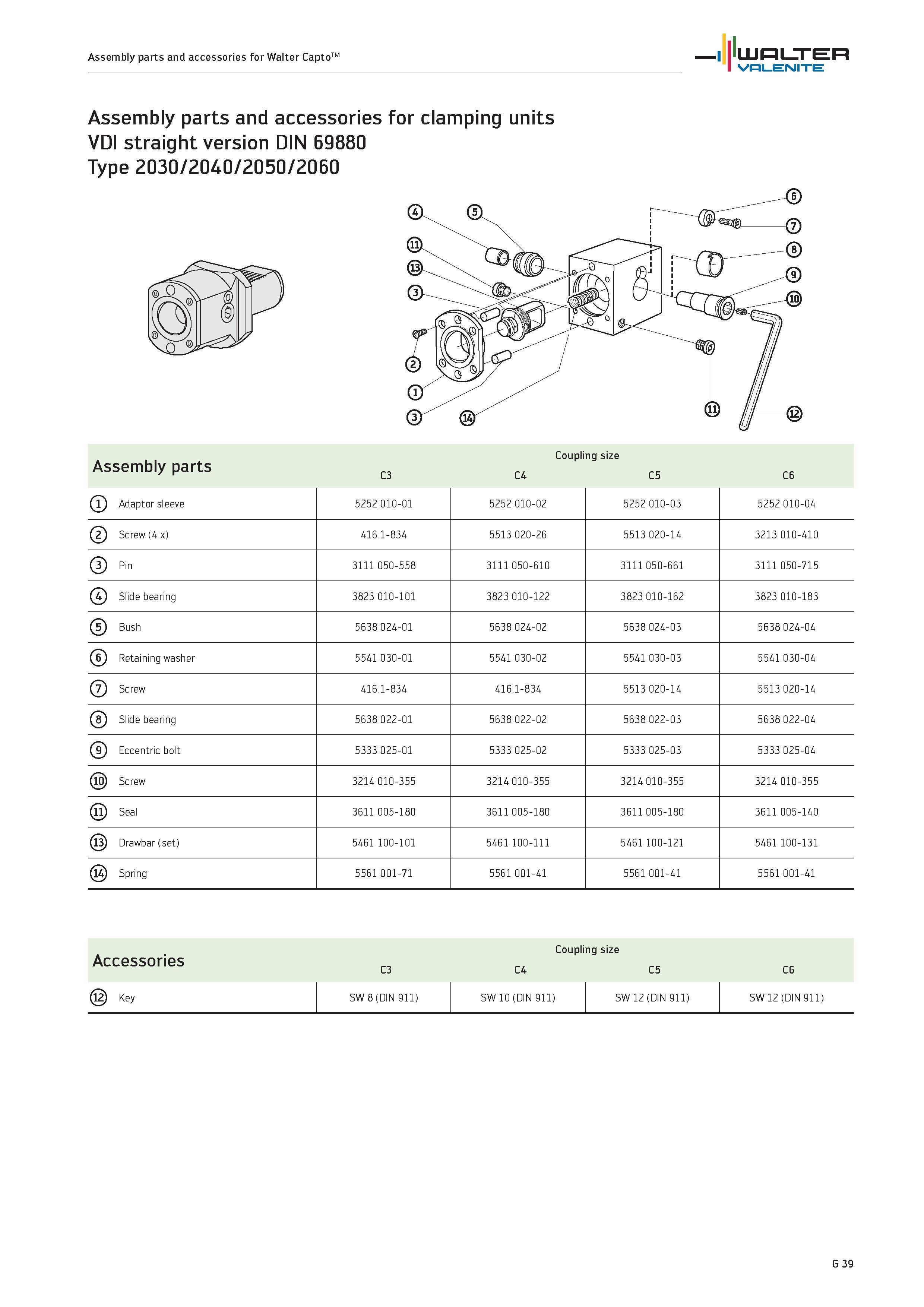

Assembly parts and accessories for Walter CaptoTM WALTER Valenite Assembly parts and accessories for clamping units VDI straight version DIN 69880 Type 2030/2040/2050/2060 Assembly parts Coupling size C3 C4 C5 C6 Adaptor sleeve 5252 010-01 5252 010-02 5252 010-03 5252 010-04 ( Screw (4 x) 416.1-834 5513 020-26 5513 020-14 3213 010-410 Pi n 3111 050-558 3111 050-610 3111050-661 3111 050-715 Slide bearing 3823 010-101 3823 010-122 3823 010-162 3823 010-183 Bush 5638 024-01 5638 024-02 5638 024-03 5638 024-04 Retaining washer 5541 030-01 5541 030-02 5541 030-03 5541 030-04 Screw 416.1-834 416.1-834 5513 020-14 5513 020-14 Slide bearing 5638 022-01 5638 022-02 5638 022-03 5638 022-04 Eccentric bolt 5333 025-01 5333 025-02 5333 025-03 5333 025-04 (l Screw 3214 010-355 3214010-355 3214 010-355 3214 010-355 Seal 3611 005-180 3611 005-180 3611005-180 3611 005-140 (l Drawbar (set) 5461 100-101 5461 100-111 5461100-121 5461 100-131 (l Spring 5561 001-71 5561 001-41 5561 001-41 5561 001-41 Accessories Coupling size C3 C4 C5 C6 Key SW 8 (DIN 911) SW 10 (DIN 911) SW 12 (DIN 911) SW 12 (DIN 911) G 39
