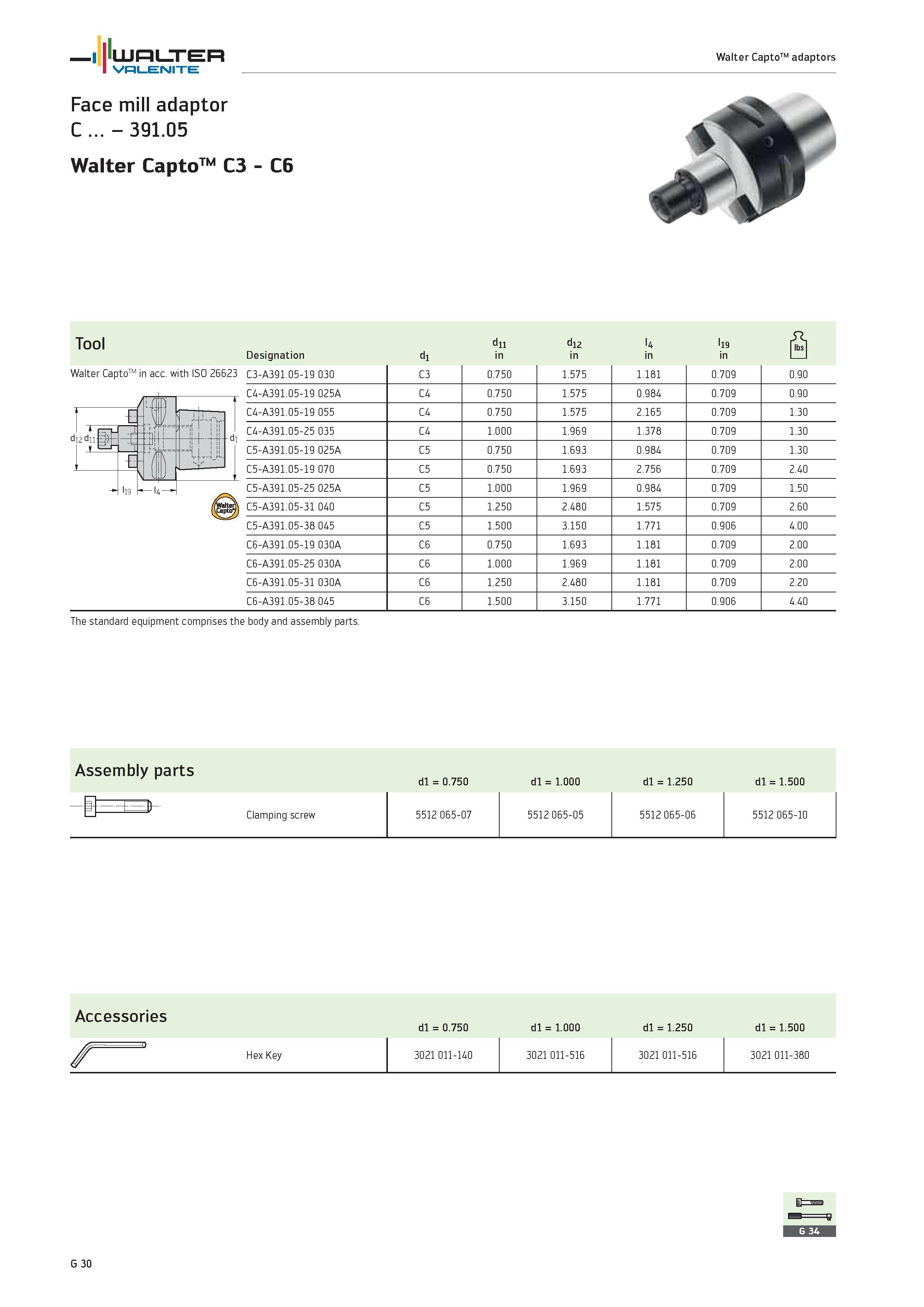

WALTER Valenite Walter CaptoTM adaptors Face mill adaptor C 391.05 Walter CaptoTM C3 C6 Tool d11 d12 U l19 flbsl Designation d1 in 1 1 T di2 dii L tfTr j i l Tfi UJA C3-A391.05-19 030 C3 0.750 1.575 1.181 0.709 0.90 C4-A391.05-19 025A C4 0.750 1.575 0.984 0.709 0.90 C4-A391.05-19 055 C4 0.750 1.575 2.165 0.709 1.30 C4-A391.05-25 035 C4 1.000 1.969 1.378 0.709 1.30 C5-A391.05-19 025A C5 0.750 1.693 0.984 0.709 1.30 C5-A391.05-19 070 C5 0.750 1.693 2.756 0.709 2.40 C5-A391.05-25 025A C5 1.000 1.969 0.984 0.709 1.50 C5-A391.05-31 040 C5 1.250 2.480 1.575 0.709 2.60 C5-A391.05-38 045 C5 1.500 3.150 1.771 0.906 4.00 C6-A391.05-19 030A C6 0.750 1.693 1.181 0.709 2.00 C6-A391.05-25 030A C6 1.000 1.969 1.181 0.709 2.00 C6-A391.05-31 030A C6 1.250 2.480 1.181 0.709 2.20 C6-A391.05-38 045 C6 1.500 3.150 1.771 0.906 4.40 The standard equipment comprises the body and assembly parts. TM Assembly parts d1 0.750 d1 1.000 d1 1.250 d1 1.500 13 5512 065-07 5512 065-05 5512065-06 5512 065-10 Clamping screw Accessories d1 0.750 d1 1.000 d1 1.250 d1 1.500 Hex Key 3021 011-140 3021 011-516 3021 011-516 3021 011-380 G 30
