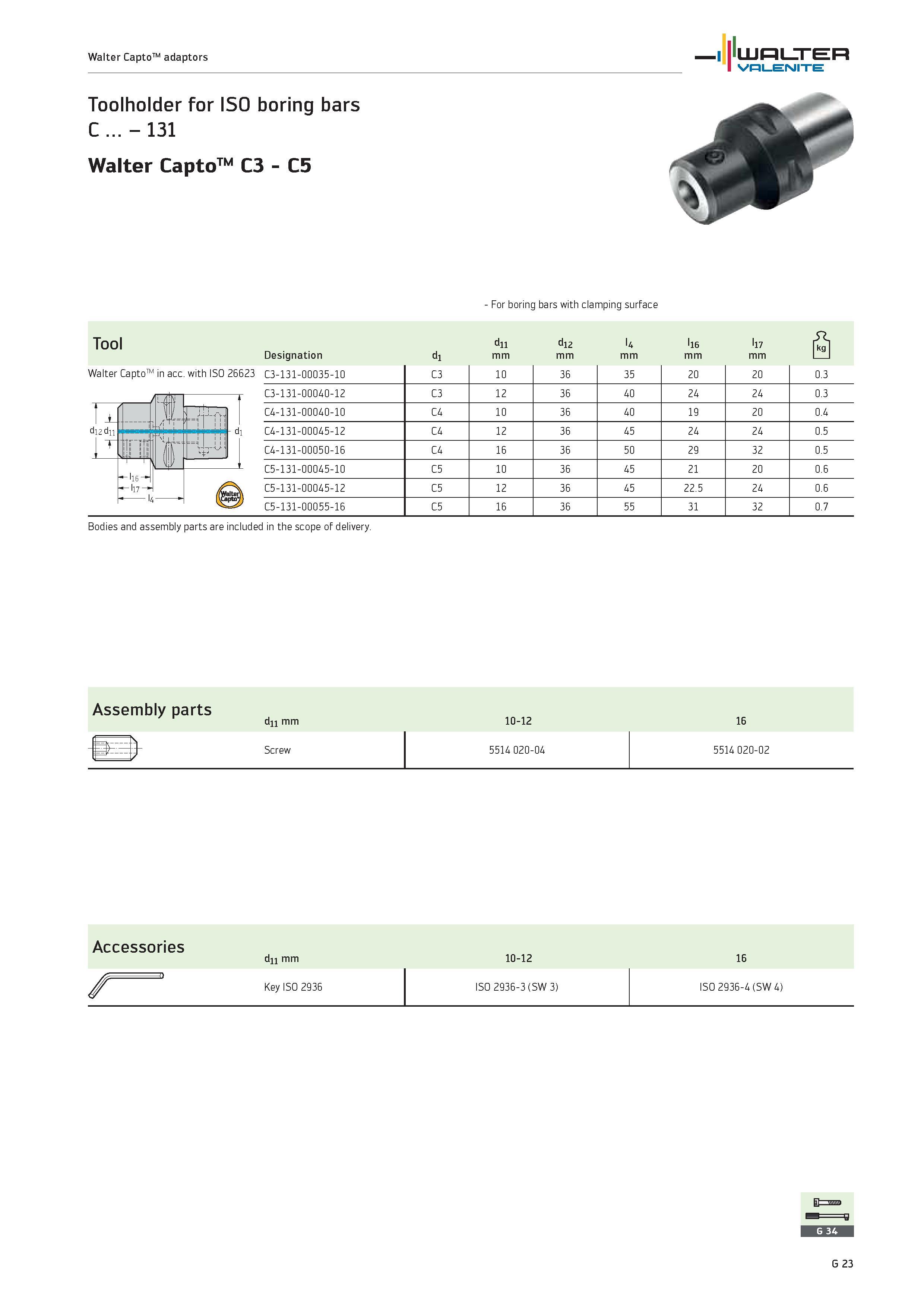

WALTER Valenite Walter CaptoTM adaptors Toolholder for ISO boring bars C 131 Walter CaptoTM C3 C5 For boring bars with clamping surface Tool d11 d12 l4 l16 l17 rkgi Designation d1 mm 1 1 '1 f rh 1 d1 1 d12 dn 1 1 "t u+j -l16- 117 l4 Uapln C3-131-00035-10 C3 10 36 35 20 20 0.3 C3-131-00040-12 C3 12 36 40 24 24 0.3 C4-131-00040-10 C4 10 36 40 19 20 0.4 C4-131-00045-12 C4 12 36 45 24 24 0.5 C4-131-00050-16 C4 16 36 50 29 32 0.5 C5-131-00045-10 C5 10 36 45 21 20 0.6 C5-131-00045-12 C5 12 36 45 22.5 24 0.6 C5-131-00055-16 C5 16 36 55 31 32 0.7 Bodies and assembly parts are included in the scope of delivery. TM Assembly parts d11 mm 10-12 16 Screw 5514 020-04 5514 020-02 Accessories d11 mm 10-12 16 Key ISO 2936 ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) G 23
