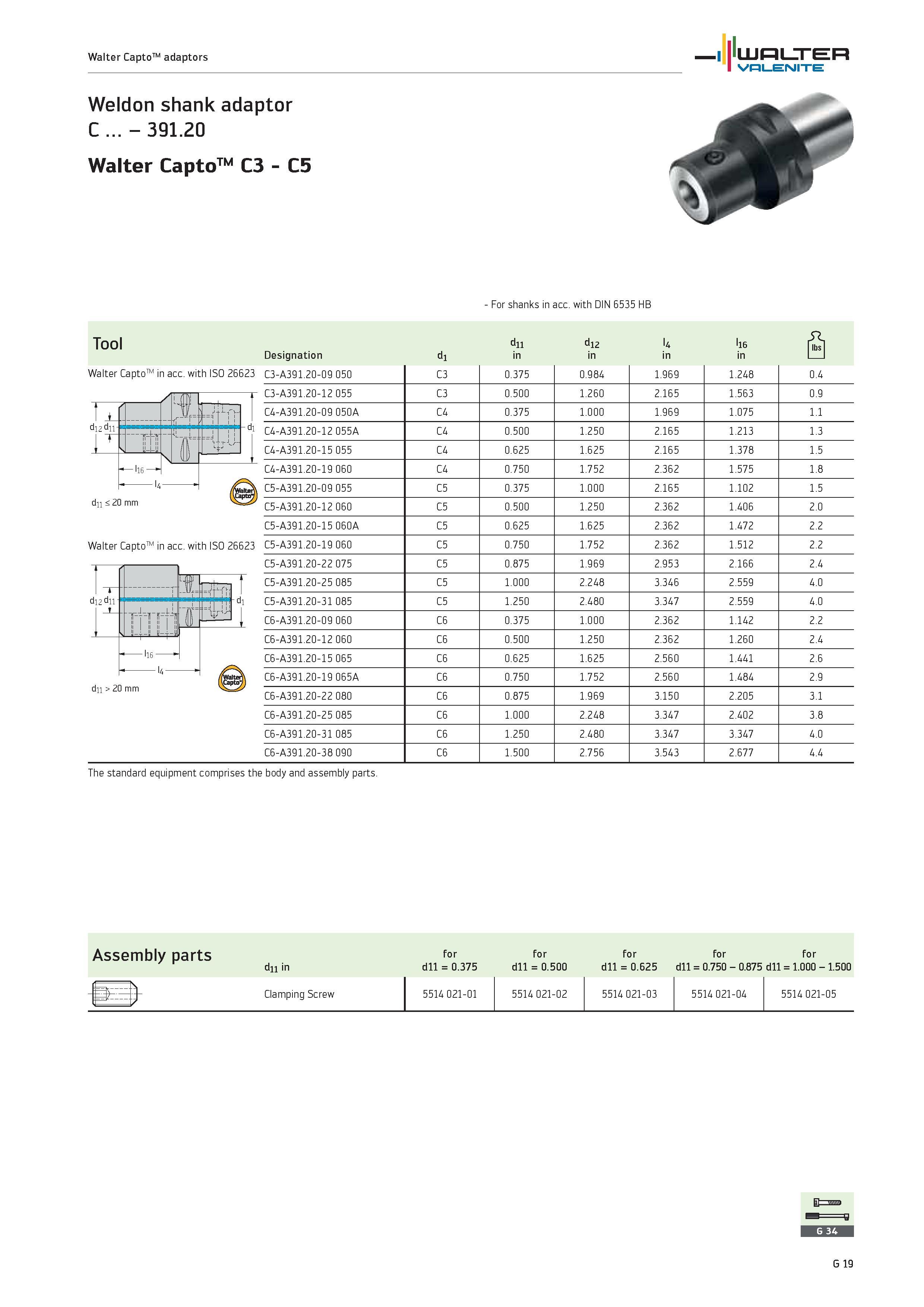

Walter CaptoTM adaptors WALTER Valenite Weldon shank adaptor C 391.20 Walter CaptoTM C3 C5 For shanks in acc. with DIN 6535 HB Tool TM di2dii dn < 20 mm dii > 20 mm -di d11 d12 U l16 Designation d1 in Lzj C3-A391.20-09 050 C3 0.375 0.984 1.969 1.248 0.4 C3-A391.20-12 055 C3 0.500 1.260 2.165 1.563 0.9 C4-A391.20-09 050A C4 0.375 1.000 1.969 1.075 1.1 C4-A391.20-12 055A C4 0.500 1.250 2.165 1.213 1.3 C4-A391.20-15 055 C4 0.625 1.625 2.165 1.378 1.5 C4-A391.20-19 060 C4 0.750 1.752 2.362 1.575 1.8 C5-A391.20-09 055 C5 0.375 1.000 2.165 1.102 1.5 C5-A391.20-12 060 C5 0.500 1.250 2.362 1.406 2.0 C5-A391.20-15 060A C5 0.625 1.625 2.362 1.472 2.2 C5-A391.20-19 060 C5 0.750 1.752 2.362 1.512 2.2 C5-A391.20-22 075 C5 0.875 1.969 2.953 2.166 2.4 C5-A391.20-25 085 C5 1.000 2.248 3.346 2.559 4.0 C5-A391.20-31 085 C5 1.250 2.480 3.347 2.559 4.0 C6-A391.20-09 060 C6 0.375 1.000 2.362 1.142 2.2 C6-A391.20-12 060 C6 0.500 1.250 2.362 1.260 2.4 C6-A391.20-15 065 C6 0.625 1.625 2.560 1.441 2.6 C6-A391.20-19 065A C6 0.750 1.752 2.560 1.484 2.9 C6-A391.20-22 080 C6 0.875 1.969 3.150 2.205 3.1 C6-A391.20-25 085 C6 1.000 2.248 3.347 2.402 3.8 C6-A391.20-31 085 C6 1.250 2.480 3.347 3.347 4.0 C6-A391.20-38 090 C6 1.500 2.756 3.543 2.677 4.4 The standard equipment comprises the body and assembly parts. TM G 19
