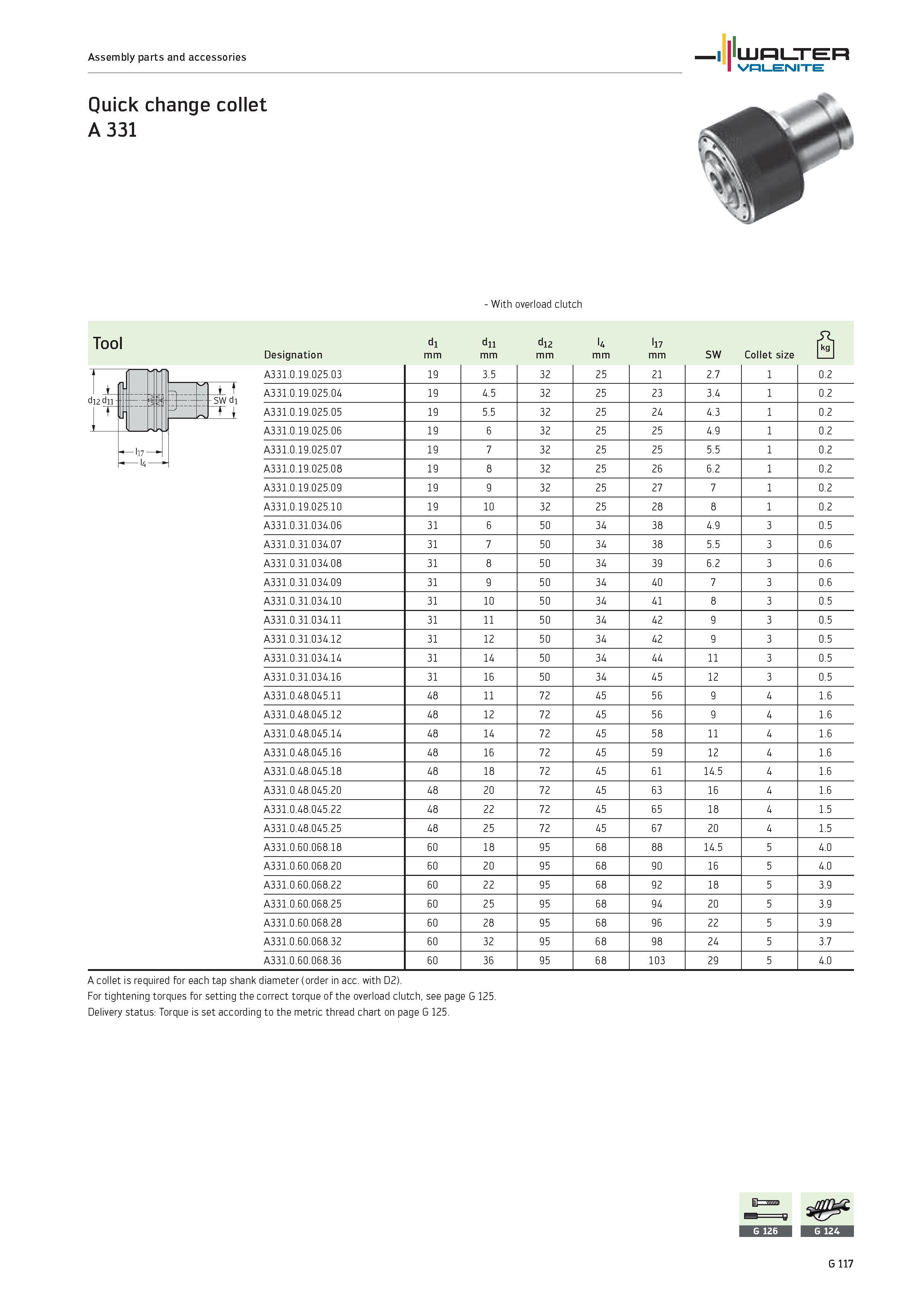

Assembly parts and accessories WALTER Valenite Quick change collet A 33i With overload clutch Tool di dii di2 U li7 hi Designation mm SW Collet size A331.0.19.025.03 19 3.5 32 25 21 2.7 1 0.2 A331.0.19.025.04 19 4.5 32 25 23 3.4 1 0.2 A331.0.19.025.05 19 5.5 32 25 24 4.3 1 0.2 A331.0.19.025.06 19 6 32 25 25 4.9 1 0.2 A331.0.19.025.07 19 7 32 25 25 5.5 1 0.2 A331.0.19.025.08 19 8 32 25 26 6.2 1 0.2 A331.0.19.025.09 19 9 32 25 27 7 1 0.2 A331.0.19.025.10 19 10 32 25 28 8 1 0.2 A331.0.31.034.06 31 6 50 34 38 4.9 3 0.5 A331.0.31.034.07 31 7 50 34 38 5.5 3 0.6 A331.0.31.034.08 31 8 50 34 39 6.2 3 0.6 A331.0.31.034.09 31 9 50 34 40 7 3 0.6 A331.0.31.034.10 31 10 50 34 41 8 3 0.5 A331.0.31.034.11 31 11 50 34 42 9 3 0.5 A331.0.31.034.12 31 12 50 34 42 9 3 0.5 A331.0.31.034.14 31 14 50 34 44 11 3 0.5 A331.0.31.034.16 31 16 50 34 45 12 3 0.5 A331.0.48.045.11 48 11 72 45 56 9 4 1.6 A331.0.48.045.12 48 12 72 45 56 9 4 1.6 A331.0.48.045.14 48 14 72 45 58 11 4 1.6 A331.0.48.045.16 48 16 72 45 59 12 4 1.6 A331.0.48.045.18 48 18 72 45 61 14.5 4 1.6 A331.0.48.045.20 48 20 72 45 63 16 4 1.6 A331.0.48.045.22 48 22 72 45 65 18 4 1.5 A331.0.48.045.25 48 25 72 45 67 20 4 1.5 A331.0.60.068.18 60 18 95 68 88 14.5 5 4.0 A331.0.60.068.20 60 20 95 68 90 16 5 4.0 A331.0.60.068.22 60 22 95 68 92 18 5 3.9 A331.0.60.068.25 60 25 95 68 94 20 5 3.9 A331.0.60.068.28 60 28 95 68 96 22 5 3.9 A331.0.60.068.32 60 32 95 68 98 24 5 3.7 A331.0.60.068.36 60 36 95 68 103 29 5 4.0 A collet is required for each tap shank diameter (order in acc. with D2). For tightening torques for setting the correct torque of the overload clutch, see page G 125. Delivery status Torque is set according to the metric thread chart on page G 125. G ii7
