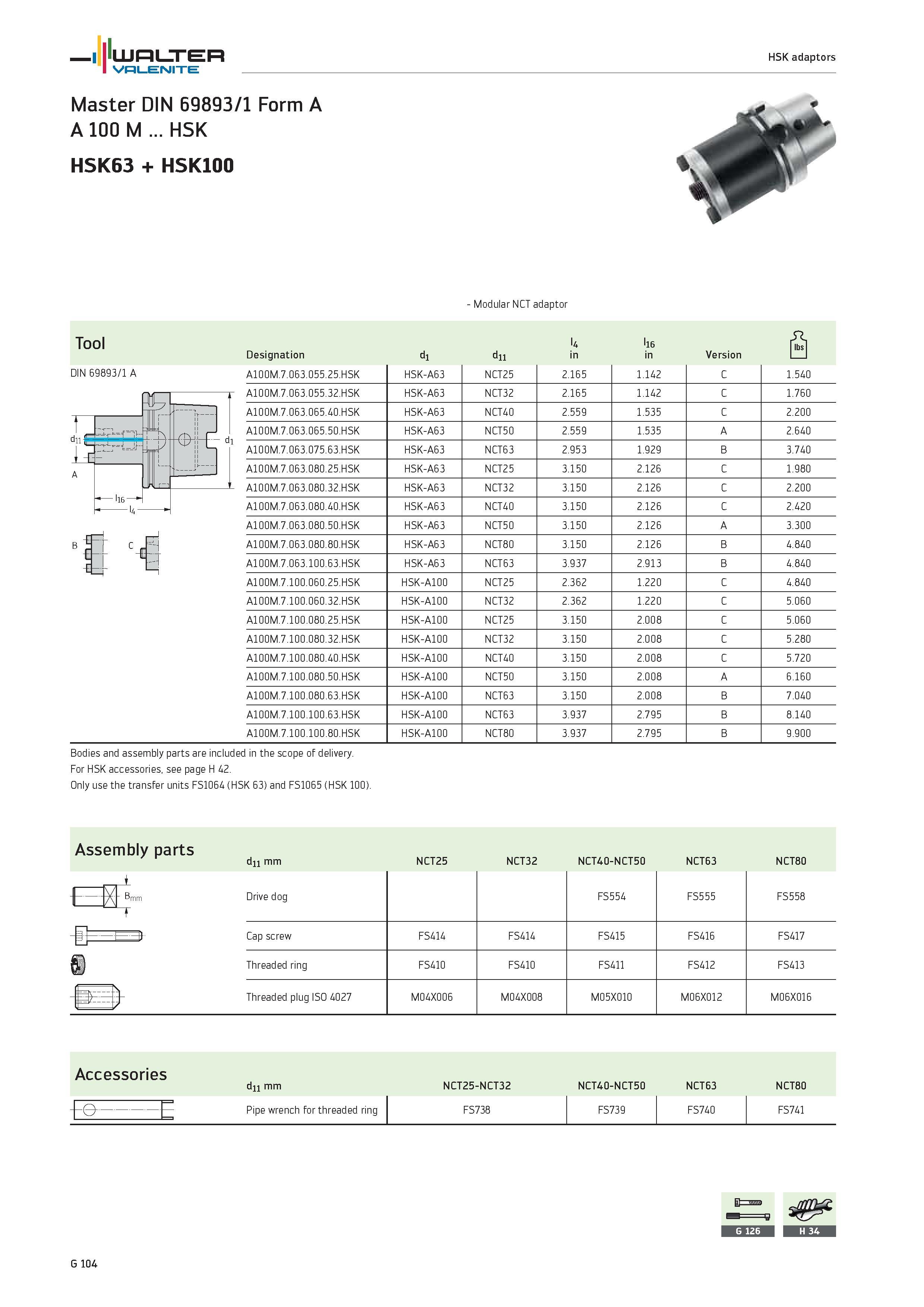

WALTER Valenite Master DIN 69893/1 Form A A 100 M HSK HSK63 + HSK100 HSK adaptors Modular NCT adaptor Tool l4 l16 lbs Designation d1 d11 in Version DIN 69893/1 A r c -E i A100M.7.063.055.25.HSK HSK-A63 NCT25 2.165 1.142 C 1.540 A100M.7.063.055.32.HSK HSK-A63 NCT32 2.165 1.142 C 1.760 A100M.7.063.065.40.HSK HSK-A63 NCT40 2.559 1.535 C 2.200 A100M.7.063.065.50.HSK HSK-A63 NCT50 2.559 1.535 A 2.640 A100M.7.063.075.63.HSK HSK-A63 NCT63 2.953 1.929 B 3.740 A100M.7.063.080.25.HSK HSK-A63 NCT25 3.150 2.126 C 1.980 A100M.7.063.080.32.HSK HSK-A63 NCT32 3.150 2.126 C 2.200 A100M.7.063.080.40.HSK HSK-A63 NCT40 3.150 2.126 C 2.420 A100M.7.063.080.50.HSK HSK-A63 NCT50 3.150 2.126 A 3.300 A100M.7.063.080.80.HSK HSK-A63 NCT80 3.150 2.126 B 4.840 A100M.7.063.100.63.HSK HSK-A63 NCT63 3.937 2.913 B 4.840 A100M.7.100.060.25.HSK HSK-A100 NCT25 2.362 1.220 C 4.840 A100M.7.100.060.32.HSK HSK-A100 NCT32 2.362 1.220 C 5.060 A100M.7.100.080.25.HSK HSK-A100 NCT25 3.150 2.008 C 5.060 A100M.7.100.080.32.HSK HSK-A100 NCT32 3.150 2.008 C 5.280 A100M.7.100.080.40.HSK HSK-A100 NCT40 3.150 2.008 C 5.720 A100M.7.100.080.50.HSK HSK-A100 NCT50 3.150 2.008 A 6.160 A100M.7.100.080.63.HSK HSK-A100 NCT63 3.150 2.008 B 7.040 A100M.7.100.100.63.HSK HSK-A100 NCT63 3.937 2.795 B 8.140 A100M.7.100.100.80.HSK HSK-A100 NCT80 3.937 2.795 B 9.900 Bodies and assembly parts are included in the scope of delivery. For HSK accessories, see page H 42. Only use the transfer units FS1064 (HSK 63) and FS1065 (HSK 100). Assembly parts E dn mm NCT25 NCT32 NCT40-NCT50 NCT63 NCT80 Drive dog FS554 FS555 FS558 Cap screw FS414 FS414 FS415 FS416 FS417 Threaded ring FS410 FS410 FS411 FS412 FS413 Threaded plug ISO 4027 M04X006 M04X008 M05X010 M06X012 M06X016 Accessories d11 mm NCT25-NCT32 NCT40-NCT50 NCT63 NCT80 Pipe wrench for threaded ring FS738 FS739 FS740 FS741 G 104
