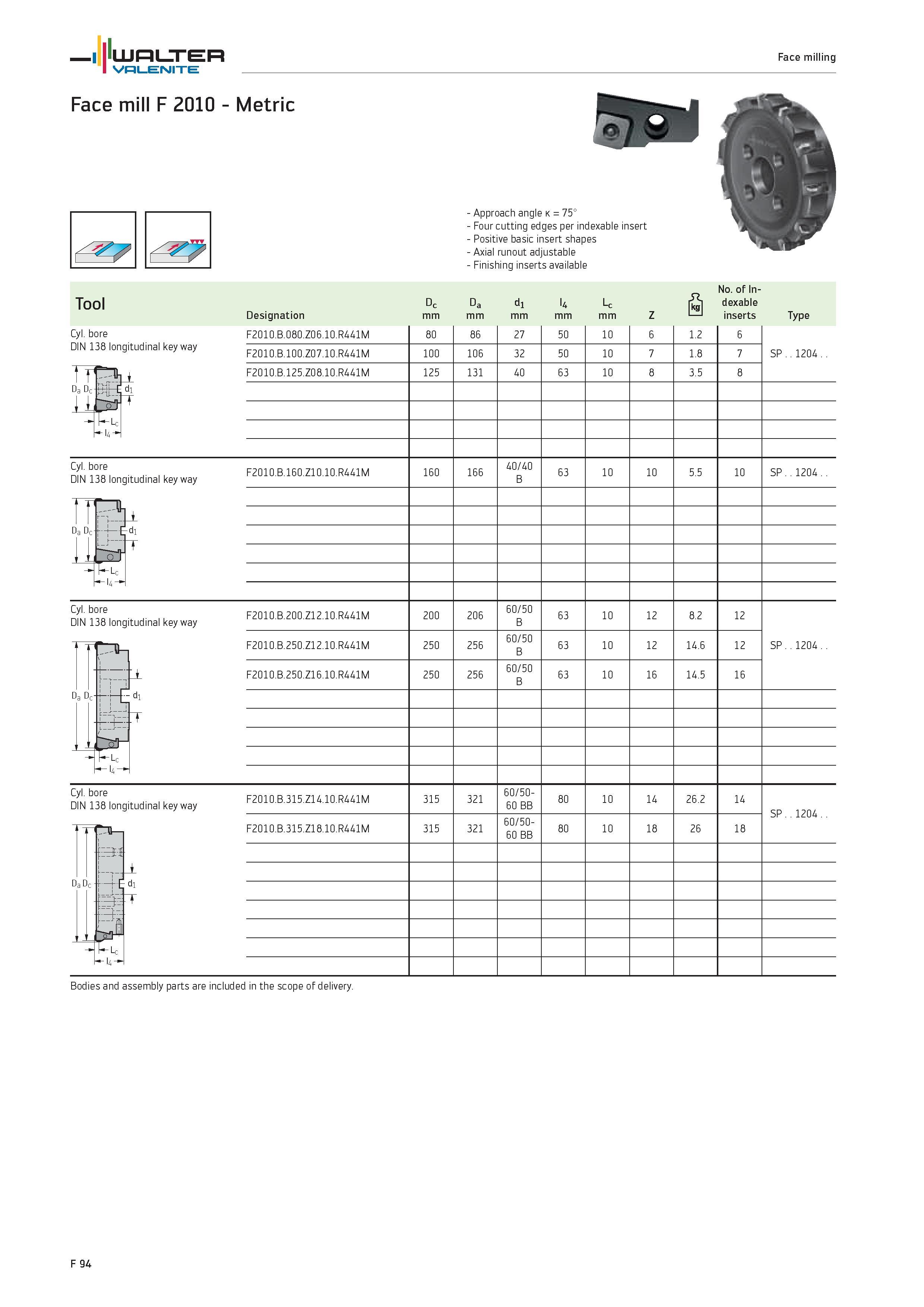

WALTER Valenite Face milling Face mill F 2010 Metric Cyl. bore DIN 138 longitudinal key way T Da Dc ii Approach angle k 75° Four cutting edges per indexable insert Positive basic insert shapes Axial runout adjustable Finishing inserts available No. of In- Tool Dc Da di U Lc Ikgl dexable Designation mm Z 1 1 inserts Type F2010.B.080.Z06.10.R441M 80 86 27 50 10 6 1.2 6 SP..1204 F2010.B.100.Z07.10.R441M 100 106 32 50 10 7 1.8 7 F2010.B.125.Z08.10.R441M 125 131 40 63 10 8 3.5 8 F2010.B.160.Z10.10.R441M 160 166 40/40 B 63 10 10 5.5 10 SP..1204 F2010.B.200.Z12.10.R441M 200 206 60/50 B 63 10 12 8.2 12 SP..1204 F2010.B.250.Z12.10.R441M 250 256 60/50 B 63 10 12 14.6 12 F2010.B.250.Z16.10.R441M 250 256 60/50 B 63 10 16 14.5 16 F2010.B.315.Z14.10.R441M 315 321 60/5060 BB 80 10 14 26.2 14 SP..1204 F2010.B.315.Z18.10.R441M 315 321 60/5060 BB 80 10 18 26 18 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way :zm± -i F d1 Cyl. bore DIN 138 longitudinal key way Ed -:rj Bodies and assembly parts are included in the scope of delivery. L DaD a -'c L F 94
