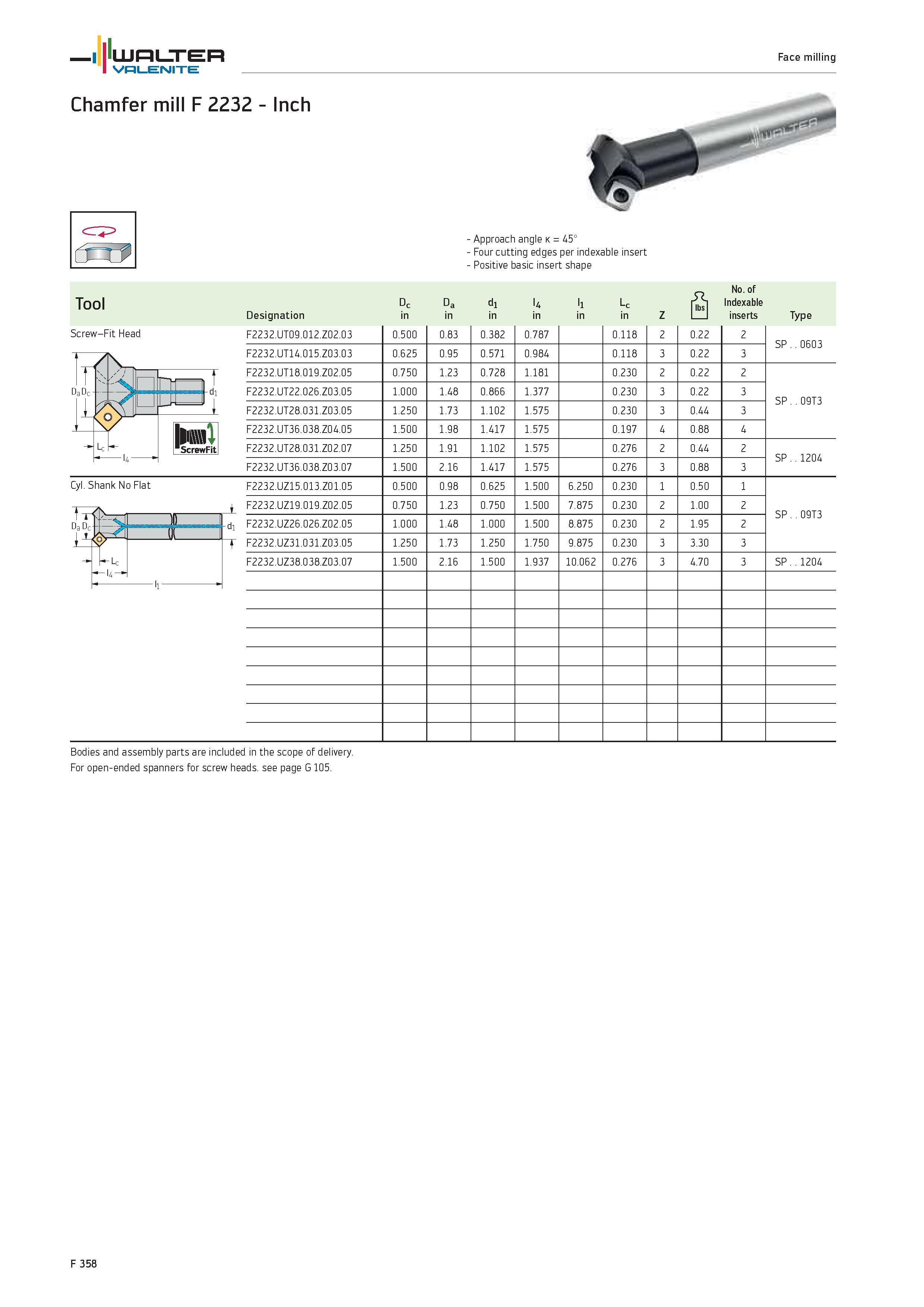

WALTER Valenite Face milling Chamfer mill F 2232 Inch Approach angle k 45° Four cutting edges per indexable insert Positive basic insert shape No. of Tool Dc Da di l4 li Lc tS indexatiie Designation in Z J inserts Type Screw-Fit Head F2232.UT09.012.Z02.03 0.500 0.83 0.382 0.787 0.118 2 0.22 2 SP .0603 F2232.UT14.015.Z03.03 0.625 0.95 0.571 0.984 0.118 3 0.22 3 F2232.UT18.019.Z02.05 0.750 1.23 0.728 1.181 0.230 2 0.22 2 SP..09T3 F2232.UT22.026.Z03.05 1.000 1.48 0.866 1.377 0.230 3 0.22 3 F2232.UT28.031.Z03.05 1.250 1.73 1.102 1.575 0.230 3 0.44 3 F2232.UT36.038.Z04.05 1.500 1.98 1.417 1.575 0.197 4 0.88 4 F2232.UT28.031.Z02.07 1.250 1.91 1.102 1.575 0.276 2 0.44 2 SP 1204 F2232.UT36.038.Z03.07 1.500 2.16 1.417 1.575 0.276 3 0.88 3 F2232.UZ15.013.Z01.05 0.500 0.98 0.625 1.500 6.250 0.230 1 0.50 1 SP..09T3 F2232.UZ19.019.Z02.05 0.750 1.23 0.750 1.500 7.875 0.230 2 1.00 2 F2232.UZ26.026.Z02.05 1.000 1.48 1.000 1.500 8.875 0.230 2 1.95 2 F2232.UZ31.031.Z03.05 1.250 1.73 1.250 1.750 9.875 0.230 3 3.30 3 F2232.UZ38.038.Z03.07 1.500 2.16 1.500 1.937 10.062 0.276 3 4.70 3 SP 1204 Cyl. Shank No Flat Bodies and assembly parts are included in the scope of delivery. For open-ended spanners for screw heads. see page G 105. F 358
