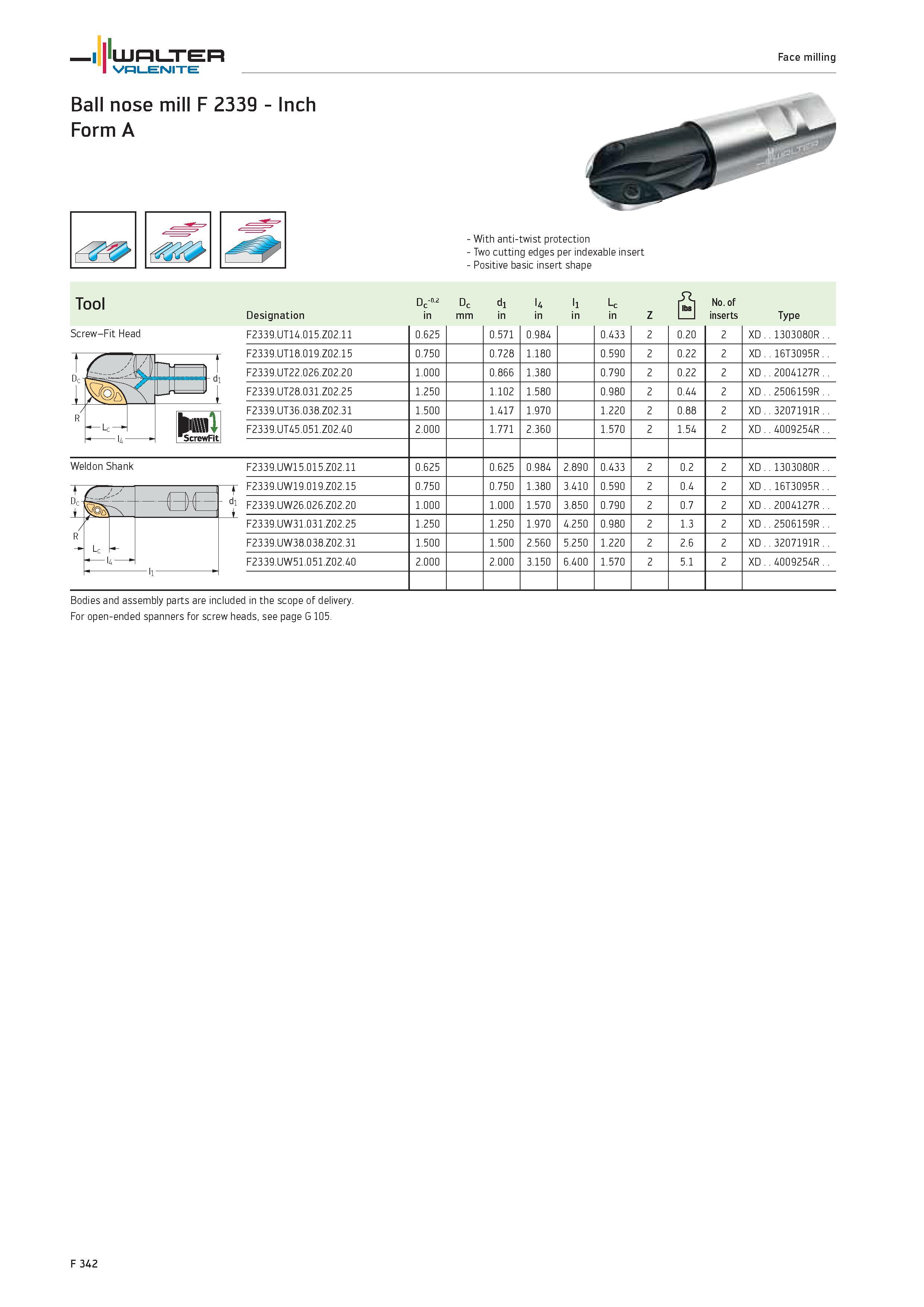

WALTER Valenite Face milling Ball nose mill F 2339 Inch Form A With anti-twist protection Two cutting edges per indexable insert Positive basic insert shape Tool c D -c D di l4 li Lc 2 No. of Designation in mm in Z l inserts Type Screw-Fit Head F2339.UT14.015.Z02.11 0.625 0.571 0.984 0.433 2 0.20 2 XD .1303080R.. F2339.UT18.019.Z02.15 0.750 0.728 1.180 0.590 2 0.22 2 XD .16T3095R.. F2339.UT22.026.Z02.20 1.000 0.866 1.380 0.790 2 0.22 2 XD..2004127R.. F2339.UT28.031.Z02.25 1.250 1.102 1.580 0.980 2 0.44 2 XD .2506159R.. F2339.UT36.038.Z02.31 1.500 1.417 1.970 1.220 2 0.88 2 XD..3207191R.. F2339.UT45.051.Z02.40 2.000 1.771 2.360 1.570 2 1.54 2 XD .4009254R.. F2339.UW15.015.Z02.11 0.625 0.625 0.984 2.890 0.433 2 0.2 2 XD .1303080R.. F2339.UW19.019.Z02.15 0.750 0.750 1.380 3.410 0.590 2 0.4 2 XD .16T3095R.. F2339.UW26.026.Z02.20 1.000 1.000 1.570 3.850 0.790 2 0.7 2 XD..2004127R.. F2339.UW31.031.Z02.25 1.250 1.250 1.970 4.250 0.980 2 1.3 2 XD..2506159R.. F2339.UW38.038.Z02.31 1.500 1.500 2.560 5.250 1.220 2 2.6 2 XD..3207191R.. F2339.UW51.051.Z02.40 2.000 2.000 3.150 6.400 1.570 2 5.1 2 XD .4009254R.. Weldon Shank Bodies and assembly parts are included in the scope of delivery. For open-ended spanners for screw heads, see page G 105. R L F 342
