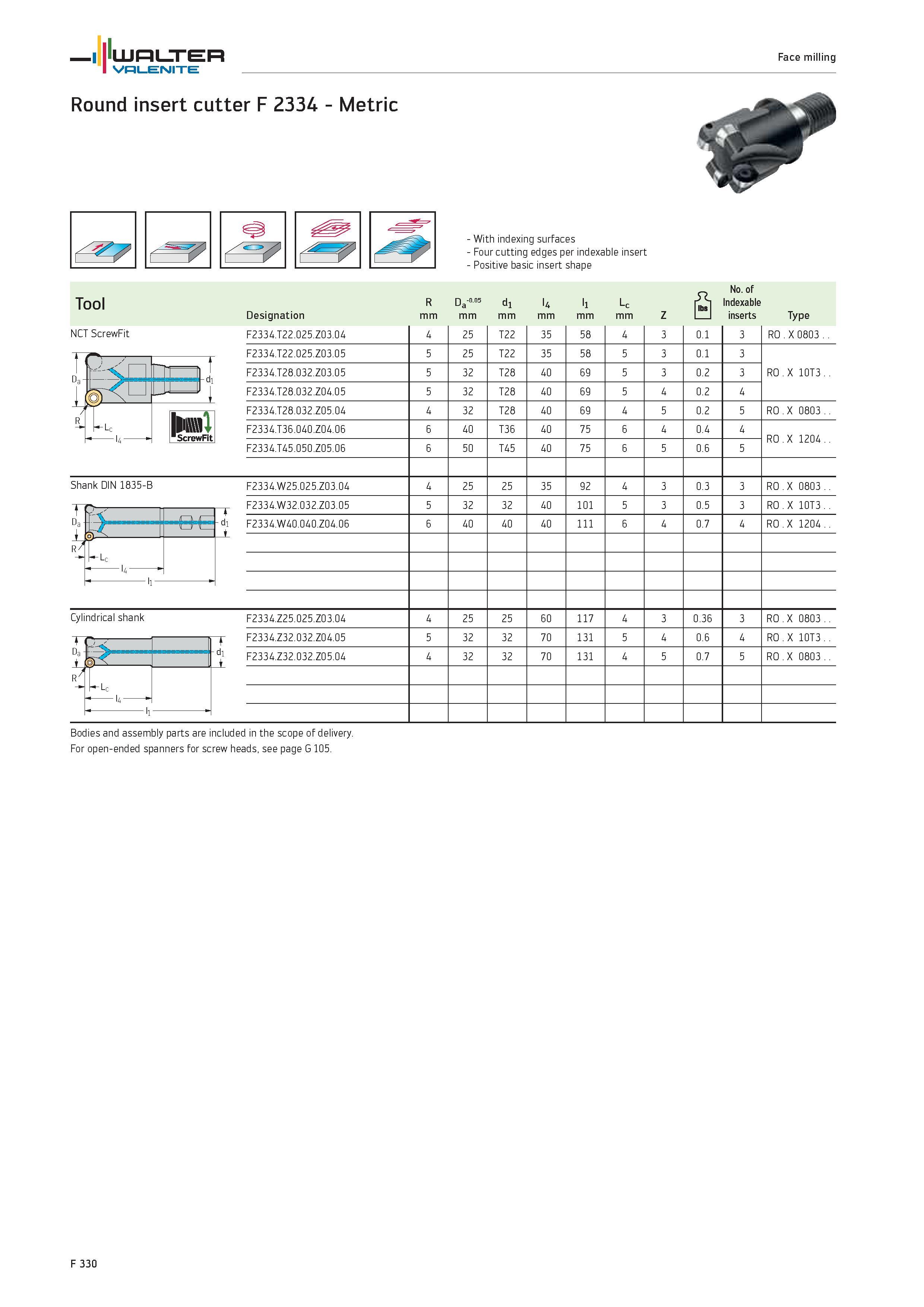

WALTER Valenite Face milling Round insert cutter F 2334 Metric "7 NCT ScrewFit With indexing surfaces Four cutting edges per indexable insert Positive basic insert shape No. of Tool R Da-0 05 d1 l4 l1 Lc M Indexable Designation mm Z 1 1 inserts Type F2334.T22.025.Z03.04 4 25 T22 35 58 4 3 0.1 3 RO X 0803.. F2334.T22.025.Z03.05 5 25 T22 35 58 5 3 0.1 3 RO.X 10T3.. F2334.T28.032.Z03.05 5 32 T28 40 69 5 3 0.2 3 F2334.T28.032.Z04.05 5 32 T28 40 69 5 4 0.2 4 F2334.T28.032.Z05.04 4 32 T28 40 69 4 5 0.2 5 RO.X 0803 F2334.T36.040.Z04.06 6 40 T36 40 75 6 4 0.4 4 RO.X 1204 F2334.T45.050.Z05.06 6 50 T45 40 75 6 5 0.6 5 F2334.W25.025.Z03.04 4 25 25 35 92 4 3 0.3 3 RO.X 0803 F2334.W32.032.Z03.05 5 32 32 40 101 5 3 0.5 3 RO.X 10T3 F2334.W40.040.Z04.06 6 40 40 40 111 6 4 0.7 4 RO.X 1204 F2334.Z25.025.Z03.04 4 25 25 60 117 4 3 0.36 3 RO.X 0803.. F2334.Z32.032.Z04.05 5 32 32 70 131 5 4 0.6 4 RO .X 10T3 F2334.Z32.032.Z05.04 4 32 32 70 131 4 5 0.7 5 RO X 0803 Shank DIN 1835-B 1 l\ h k U '1 \l t Lc -ll- Cylindrical shank :Il Bodies and assembly parts are included in the scope of delivery. For open-ended spanners for screw heads, see page G 105. R F 330
