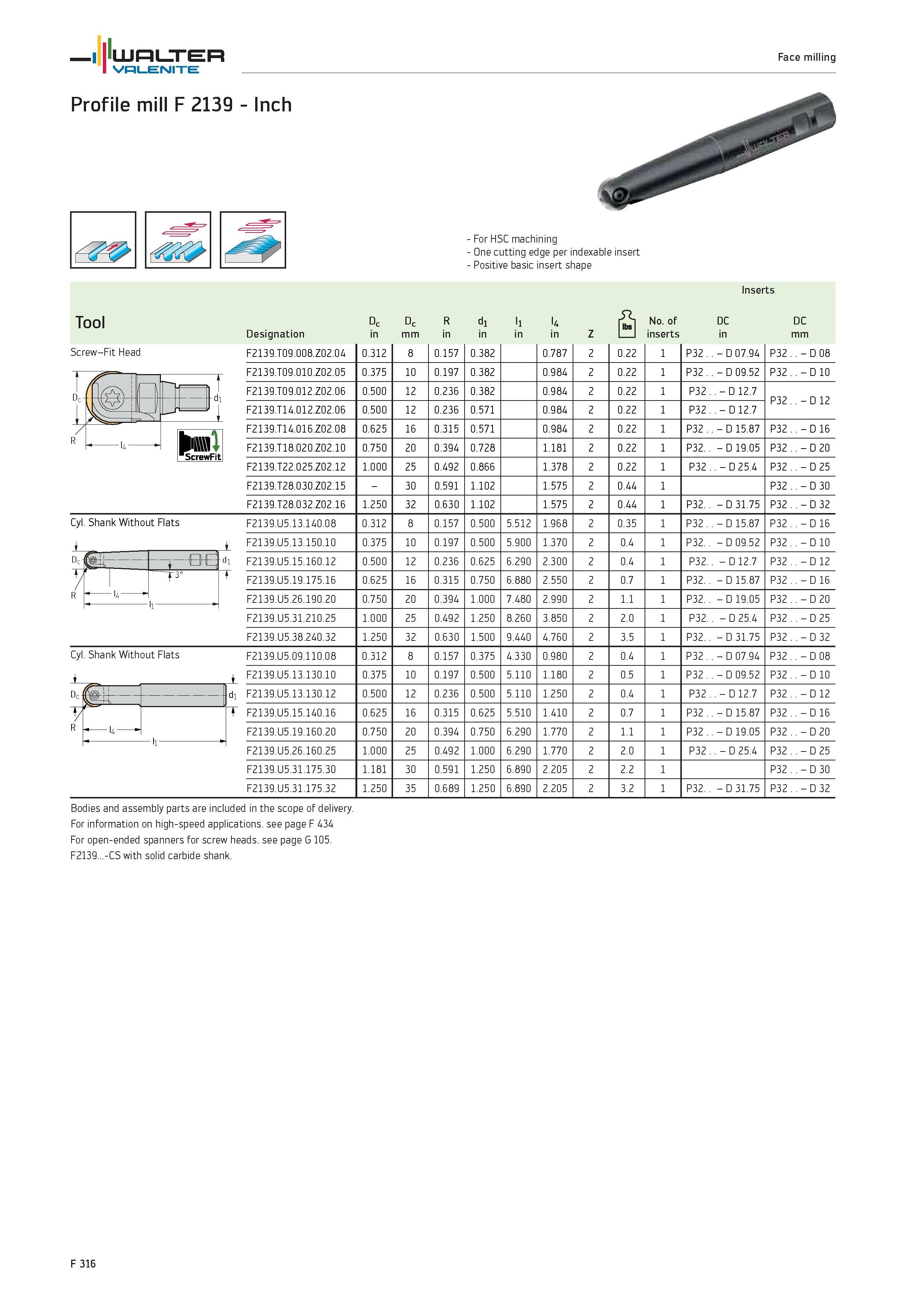

WALTER Valenite Face milling Profile mill F 2139 Inch For HSC machining One cutting edge per indexable insert Positive basic insert shape Inserts Tool Dc Dc R di li U 2l No. of DC DC Designation in mm in Z l inserts in mm Screw-Fit Head F2139.T09.008.Z02.04 0.312 8 0.157 0.382 0.787 2 0.22 1 P32 D 07.94 P32 D 08 F2139.T09.010.Z02.05 0.375 10 0.197 0.382 0.984 2 0.22 1 P32 D 09.52 P32 D 10 F2139.T09.012.Z02.06 0.500 12 0.236 0.382 0.984 2 0.22 1 P32 D 12.7 P32 D 12 F2139.T14.012.Z02.06 0.500 12 0.236 0.571 0.984 2 0.22 1 P32 D 12.7 F2139.T14.016.Z02.08 0.625 16 0.315 0.571 0.984 2 0.22 1 P32 D 15.87 P32 D 16 F2139.T18.020.Z02.10 0.750 20 0.394 0.728 1.181 2 0.22 1 P32. D 19.05 P32 D 20 F2139.T22.025.Z02.12 1.000 25 0.492 0.866 1.378 2 0.22 1 P32 D 25.4 P32 D 25 F2139.T28.030.Z02.15 30 0.591 1.102 1.575 2 0.44 1 P32 D 30 F2139.T28.032.Z02.16 1.250 32 0.630 1.102 1.575 2 0.44 1 P32. D 31.75 P32 D 32 F2139.U5.13.140.08 0.312 8 0.157 0.500 5.512 1.968 2 0.35 1 P32 D 15.87 P32 D 16 F2139.U5.13.150.10 0.375 10 0.197 0.500 5.900 1.370 2 0.4 1 P32. D 09.52 P32 D 10 F2139.U5.15.160.12 0.500 12 0.236 0.625 6.290 2.300 2 0.4 1 P32. D 12.7 P32 D 12 F2139.U5.19.175.16 0.625 16 0.315 0.750 6.880 2.550 2 0.7 1 P32. D 15.87 P32 D 16 F2139.U5.26.190.20 0.750 20 0.394 1.000 7.480 2.990 2 1.1 1 P32. D 19.05 P32 D 20 F2139.U5.31.210.25 1.000 25 0.492 1.250 8.260 3.850 2 2.0 1 P32. D 25.4 P32 D 25 F2139.U5.38.240.32 1.250 32 0.630 1.500 9.440 4.760 2 3.5 1 P32. D 31.75 P32 D 32 F2139.U5.09.110.08 0.312 8 0.157 0.375 4.330 0.980 2 0.4 1 P32 D 07.94 P32 D 08 F2139.U5.13.130.10 0.375 10 0.197 0.500 5.110 1.180 2 0.5 1 P32 D 09.52 P32 D 10 F2139.U5.13.130.12 0.500 12 0.236 0.500 5.110 1.250 2 0.4 1 P32 D 12.7 P32 D 12 F2139.U5.15.140.16 0.625 16 0.315 0.625 5.510 1.410 2 0.7 1 P32 D 15.87 P32 D 16 F2139.U5.19.160.20 0.750 20 0.394 0.750 6.290 1.770 2 1.1 1 P32 D 19.05 P32 D 20 F2139.U5.26.160.25 1.000 25 0.492 1.000 6.290 1.770 2 2.0 1 P32 D 25.4 P32 D 25 F2139.U5.31.175.30 1.181 30 0.591 1.250 6.890 2.205 2 2.2 1 P32 D 30 F2139.U5.31.175.32 1.250 35 0.689 1.250 6.890 2.205 2 3.2 1 P32. D 31.75 P32 D 32 Cyl. Shank Without Flats Cyl. Shank Without Flats di Sbh' t 14 -ll Bodies and assembly parts are included in the scope of delivery. For information on high-speed applications. see page F 434 For open-ended spanners for screw heads. see page G 105. F2139...-CS with solid carbide shank. D R F 316
