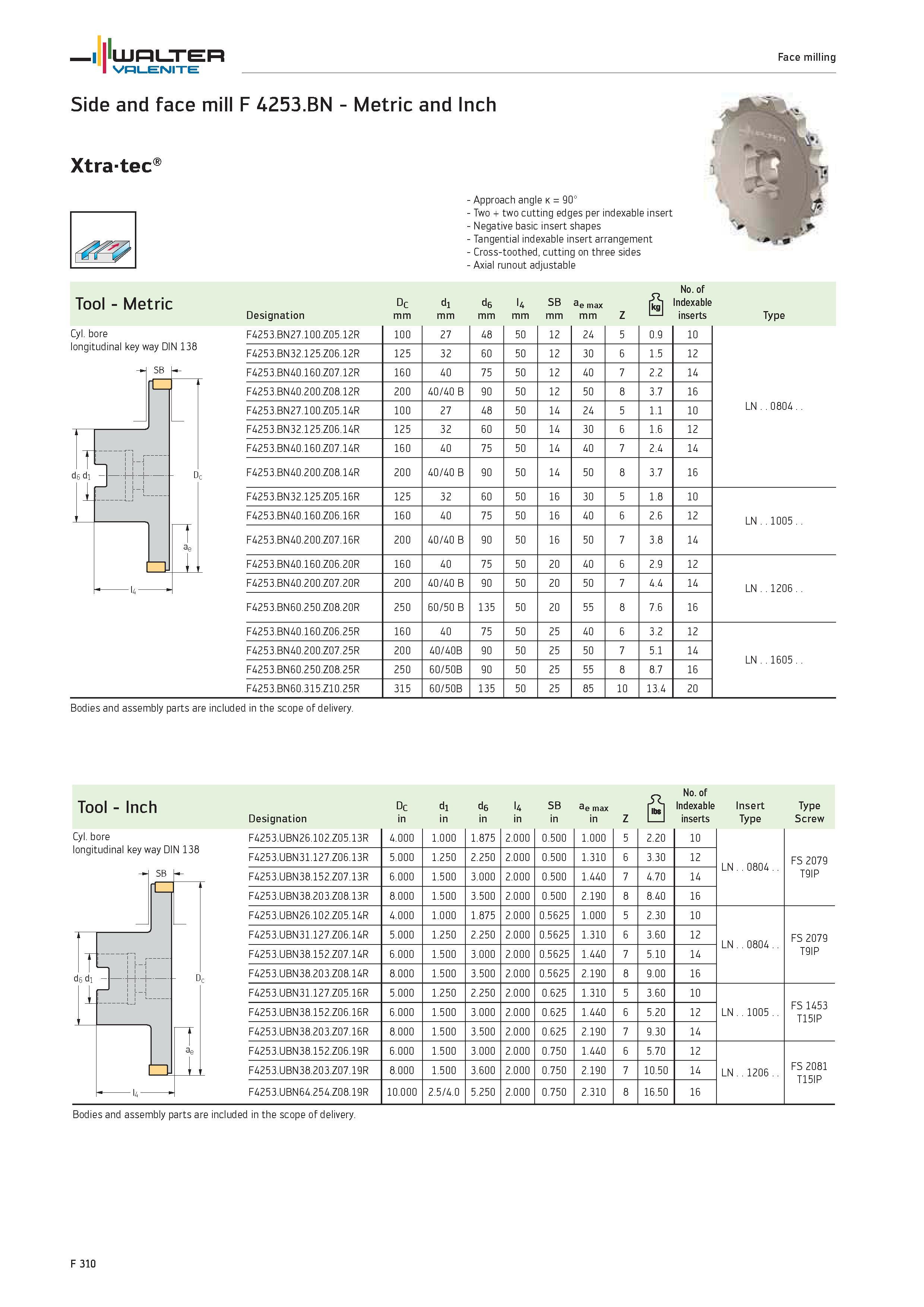

WALTER Valenite Face milling Side and face mill F 4253.BN Metric and Inch Xtra-tec Cyl. bore longitudinal key way DIN 138 Approach angle k 90° Two + two cutting edges per indexable insert Negative basic insert shapes Tangential indexable insert arrangement Cross-toothed, cutting on three sides Axial runout adjustable No. of Tool Metric Dc di d6 l4 SB ae max kgl Indexable Designation mm Z 1 1 inserts Type F4253.BN27.100.Z05.12R 100 27 48 50 12 24 5 0.9 10 LN 0804 F4253.BN32.125.Z06.12R 125 32 60 50 12 30 6 1.5 12 F4253.BN40.160.Z07.12R 160 40 75 50 12 40 7 2.2 14 F4253.BN40.200.Z08.12R 200 40/40 B 90 50 12 50 8 3.7 16 F4253.BN27.100.Z05.14R 100 27 48 50 14 24 5 1.1 10 F4253.BN32.125.Z06.14R 125 32 60 50 14 30 6 1.6 12 F4253.BN40.160.Z07.14R 160 40 75 50 14 40 7 2.4 14 F4253.BN40.200.Z08.14R 200 40/40 B 90 50 14 50 8 3.7 16 F4253.BN32.125.Z05.16R 125 32 60 50 16 30 5 1.8 10 LN ..1005 F4253.BN40.160.Z06.16R 160 40 75 50 16 40 6 2.6 12 F4253.BN40.200.Z07.16R 200 40/40 B 90 50 16 50 7 3.8 14 F4253.BN40.160.Z06.20R 160 40 75 50 20 40 6 2.9 12 LN ..1206 F4253.BN40.200.Z07.20R 200 40/40 B 90 50 20 50 7 4.4 14 F4253.BN60.250.Z08.20R 250 60/50 B 135 50 20 55 8 7.6 16 F4253.BN40.160.Z06.25R 160 40 75 50 25 40 6 3.2 12 LN ..1605 F4253.BN40.200.Z07.25R 200 40/40B 90 50 25 50 7 5.1 14 F4253.BN60.250.Z08.25R 250 60/50B 90 50 25 55 8 8.7 16 F4253.BN60.315.Z10.25R 315 60/50B 135 50 25 85 10 13.4 20 Bodies and assembly parts are included in the scope of delivery. Tool Inch Dc di d6 u SB ae max No. of jS Indexable Insert Type Designation in Z 1 inserts Type Screw Cyl. bore longitudinal key way DIN 138 F4253.UBN26.102.Z05.13R 4.000 1.000 1.875 2.000 0.500 1.000 5 2.20 10 LN..0804.. FS 2079 T9IP F4253.UBN31.127.Z06.13R 5.000 1.250 2.250 2.000 0.500 1.310 6 3.30 12 F4253.UBN38.152.Z07.13R 6.000 1.500 3.000 2.000 0.500 1.440 7 4.70 14 F4253.UBN38.203.Z08.13R 8.000 1.500 3.500 2.000 0.500 2.190 8 8.40 16 F4253.UBN26.102.Z05.14R 4.000 1.000 1.875 2.000 0.5625 1.000 5 2.30 10 LN..0804.. FS 2079 T9IP F4253.UBN31.127.Z06.14R 5.000 1.250 2.250 2.000 0.5625 1.310 6 3.60 12 F4253.UBN38.152.Z07.14R 6.000 1.500 3.000 2.000 0.5625 1.440 7 5.10 14 F4253.UBN38.203.Z08.14R 8.000 1.500 3.500 2.000 0.5625 2.190 8 9.00 16 F4253.UBN31.127.Z05.16R 5.000 1.250 2.250 2.000 0.625 1.310 5 3.60 10 LN 1005 FS 1453 T15IP F4253.UBN38.152.Z06.16R 6.000 1.500 3.000 2.000 0.625 1.440 6 5.20 12 F4253.UBN38.203.Z07.16R 8.000 1.500 3.500 2.000 0.625 2.190 7 9.30 14 F4253.UBN38.152.Z06.19R 6.000 1.500 3.000 2.000 0.750 1.440 6 5.70 12 LN 1206 FS 2081 T15IP F4253.UBN38.203.Z07.19R 8.000 1.500 3.600 2.000 0.750 2.190 7 10.50 14 F4253.UBN64.254.Z08.19R 10.000 2.5/4.0 5.250 2.000 0.750 2.310 8 16.50 16 Bodies and assembly parts are included in the scope of delivery. F 310
